8468 Engine Wiring Harness (031764 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ104536	1	Wiring Harness	-
1	DZ117166	1	Wiring Harness	SUB FOR DZ104536
2	57M10321	49	Elec. Connector Terminal	-
2	RE538503	1	Elec. Connector Accessory	A5501, ECU Connection 01
2	57M9814	3	Elec. Connector Cavity Plug	-
2	57M10319	2	Elec. Connector Terminal	-
3	RE545538	2	Bolt Kit	-
4	RE538504	1	Elec. Connector Accessory	A5502, ECU Connection 02
4	57M10321	39	Elec. Connector Terminal	-
4	57M10319	7	Elec. Connector Terminal	-
4	57M9814	8	Elec. Connector Cavity Plug	-
5	R528122	2	Elec. Connector Accessory	-
6	57M7752	1	Elec. Connector Housing	X5048, Vehicle Interconnect 01 Dust Cap
6	57M8264	23	Elec. Connector Terminal	-
6	Z64309	6	Elec. Connector Terminal	-
6	R78069	2	Elec. Connector Cavity Plug	-
7	DZ107591	1	Electrical Connector Cap	-
7	57M10321	2	Elec. Connector Terminal	-
7	57M9837	1	Elec. Connector Accessory	-
7	57M9775	1	Elec. Connector Housing	B5300, Turbo Speed
8	57M9773	3	Elec. Connector Housing	B5208, Coolant Temperature
8	DZ107591	1	Electrical Connector Cap	-
8	57M10321	2	Elec. Connector Terminal	-
9	57M9781	1	Elec. Connector Housing	B5108, Coolant Pressure
9	57M10156	1	Elec. Connector Accessory	-
9	57M10321	3	Elec. Connector Terminal	-
10	57M9780	1	Elec. Connector Housing	B5103, Exhaust Gas Recirculation Delta Pressure Sensor
10	DZ107592	1	Electrical Connector Cap	-
10	57M10321	3	Elec. Connector Terminal	-
11	57M9939	3	Elec. Connector Accessory	-
12	57M10230	1	Elec. Connector Accessory	-
12	57M10321	5	Elec. Connector Terminal	-
12	57M9814	1	Elec. Connector Cavity Plug	-
12	57M9786	1	Elec. Connector Housing	Y5400, Exhaust Gas Recirculation Valve
13	57M9774	1	Elec. Connector Housing	B5200, Compressor Inter-Stage Temperature
13	DZ107591	1	Electrical Connector Cap	-
13	57M10321	2	Elec. Connector Terminal	-
14	57M9788	1	Elec. Connector Housing	Y5502, Dosing Pump
14	DZ107594	1	Electrical Connector Cap	-
14	57M10319	2	Elec. Connector Terminal	-
14	57M10321	3	Elec. Connector Terminal	-
14	57M9814	1	Elec. Connector Cavity Plug	-
15	57M9144	1	Elec. Connector Housing	B5500, Compressor Inlet Sensor
16	57M10144	1	Elec. Connector Housing	X5003, Right Side Harness Connector
16	57M9814	4	Elec. Connector Cavity Plug	-
16	57M10322	8	Elec. Connector Terminal	-
16	57M9844	1	Elec. Connector Accessory	-
17	57M9782	1	Elec. Connector Housing	B5102, Exhaust Manifold Pressure Sensor
17	DZ107592	1	Electrical Connector Cap	-
17	57M10321	3	Elec. Connector Terminal	-
18	57M10132	1	Elec. Connector Housing	X5013, Fuel Transfer Pump Right Side
18	57M9841	1	Elec. Connector Accessory	-
18	57M10322	3	Elec. Connector Terminal	-
18	57M9814	1	Elec. Connector Cavity Plug	-
19	RE258807	10	Tie Band	-
20	57M10315	1	Elec. Connector Housing	Y5001, Fuel Dosing Control Valve
20	57M9149	2	Elec. Connector Seal	-
20	DZ107597	1	Electrical Connector Cap	-
20	57M9832	2	Elec. Connector Terminal	-
21	DZ107598	1	Electrical Connector Cap	-
21	57M9831	3	Elec. Connector Terminal	-
21	57M9149	3	Elec. Connector Seal	-
21	57M10318	1	Elec. Connector Housing	B5106, Fuel Dosing Outlet Pressure
22	57M10317	1	Elec. Connector Housing	Y5000, Fuel Dosing Shutoff Valve
22	DZ107597	1	Electrical Connector Cap	-
22	57M9832	2	Elec. Connector Terminal	-
22	57M9149	2	Elec. Connector Seal	-
23	57M9776	1	Elec. Connector Housing	B5301, Engine Crank Sensor
23	57M10155	1	Elec. Connector Accessory	-
23	57M10322	2	Elec. Connector Terminal	-
24	DZ107594	1	Electrical Connector Cap	-
24	57M10321	6	Elec. Connector Terminal	-
24	57M9787	1	Elec. Connector Housing	X5023, Fuel Injector Connector (SPV)
25	57M9793	1	Elec. Connector Housing	X5024, Fuel Injector Connector (NCV)
25	DZ107595	1	Electrical Connector Cap	-
25	57M10321	8	Elec. Connector Terminal	-
26	57M9535	1	Elec. Connector Terminal	X5001, Static Ground
27	57M9817	1	Elec. Connector Housing	Y5500, Turbo Actuator
27	DZ107593	1	Electrical Connector Cap	-
27	57M10319	2	Elec. Connector Terminal	-
27	57M10321	2	Elec. Connector Terminal	-
28	57M7559	1	Elec. Connector Terminal	G5001, Alternator Excitation
29	57M11394	1	Elec. Connector Accessory	X5048A, Vehicle Interconnect 01 Dust Cap
30	57M9772	1	Elec. Connector Housing	-
31	R542479	2	Grommet	-
32	R44302	4	Tie Band	-
33	57M11333	1	Elec. Connector Accessory	X5050A, AC Clutch Dust Cap
33	57M11333	1	Elec. Connector Accessory	-
34	57M12137	1	Clamp	-
35	T103917	1	Boot	-
36	R542480	2	Grommet	-
37	57M12134	1	Clamp	-
38	57M12128	4	Clamp	-
39	57M12122	2	Clamp	-
40	57M12129	2	Clamp	-
41	57M12144	2	Clamp	-
42	57M12123	5	Clamp	-
43	57M12145	1	Clamp	-
44	57M12138	3	Clamp	-
45	57M13289	1	Clamp	-
46	57M13288	2	Clamp	-
47	57M12141	1	Clamp	-
48	57M12782	1	Elec. Connector Accessory	-
49	57M13313	2	Clamp	-
50	57M13307	1	Clamp	-
51	57M9823	1	Elec. Connector Housing	X5046, FT4 Aux Power Interconnect
52	57M9952	1	Elec. Connector Terminal	G5005, Starter Motor Ground
53	57M9796	1	Elec. Connector Housing	X5040, Vehicle Interconnect 02
53	57M10322	2	Elec. Connector Terminal	-
54	57M9792	1	Elec. Connector Housing	X5040A, Vehicle Interconnect 02 Dust Cap
54	57M9814	8	Elec. Connector Cavity Plug	-
55	57M8736	2	Elec. Connector Accessory	-
56	DZ106070	2	Electrical Connector Cap	Y5000, Fuel Dosing Shutoff Valve
57	DZ106071	1	Electrical Connector Cap	B5106A, Fuel Dosing Outlet Pressure Dust Cap
58	DZ106072	1	Electrical Connector Cap	B5000A, Fuel Dosing Inlet Sensor Dust Cap
59	57M11336	1	Elec. Connector Accessory	Y5502A, Dosing Pump Dust Cap
60	57M13308	3	Clamp	-
61	57M12125	1	Clamp	-
62	RE552275	1	Wiring Harness	-
63	57M9782	1	Elec. Connector Housing	B5101, Oil Pressure (Clean Side)
63	57M9838	1	Elec. Connector Accessory	-
63	57M10321	3	Elec. Connector Terminal	-
64	57M10321	3	Elec. Connector Terminal	-
64	57M9838	1	Elec. Connector Accessory	-
64	57M9780	1	Elec. Connector Housing	B5110, Fuel Pressure Sensor (Low)
65	57M9801	1	Elec. Connector Housing	X5003, Right Side Harness Connector
65	57M9844	1	Elec. Connector Accessory	-
65	57M10321	8	Elec. Connector Terminal	-
65	57M9814	4	Elec. Connector Cavity Plug	-
66	57M9774	1	Elec. Connector Housing	B5110, Fuel Pressure Sensor (Low)
66	57M9838	1	Elec. Connector Accessory	-
66	57M10321	3	Elec. Connector Terminal	-
67	57M9781	1	Elec. Connector Housing	Fuel Pressure Sensor (High), B5107
67	57M9838	1	Elec. Connector Accessory	-
67	57M10321	3	Elec. Connector Terminal	-
68	57M10321	2	Elec. Connector Terminal	-
68	57M10155	1	Elec. Connector Accessory	-
68	57M9772	1	Elec. Connector Housing	B5600, Water in Fuel
69	57M9787	1	Elec. Connector Housing	X5013, Fuel Transfer Pump Right Side
69	57M9841	1	Elec. Connector Accessory	-
69	57M10319	2	Elec. Connector Terminal	-
69	57M10321	3	Elec. Connector Terminal	-
69	57M9814	1	Elec. Connector Cavity Plug	-
70	57M12137	1	Clamp	-
71	57M12129	7	Clamp	-
72	DZ110281	1	Bracket	SUB FOR DZ104745
73	RE556455	1	Wiring Harness	-
74	57M10321	2	Elec. Connector Terminal	-
74	57M9837	1	Elec. Connector Accessory	-
74	57M9775	1	Elec. Connector Housing	B5301, Eng Crank Sensor (Connect to Sensor)
75	57M9772	1	Elec. Connector Housing	B5301, Engine Crank Sensor (Connect to Engine Harness)
75	57M9837	1	Elec. Connector Accessory	-
75	57M10321	2	Elec. Connector Terminal	-
76	RE560164	1	Bracket	-
77	RE568999	1	Bracket	-
78	RE548658	1	Bracket	-
79	DZ10723	1	Bracket	-
80	R529091	6	Stud	-
81	RE66334	6	Cap Screw	-
82	14M7298	13	Flange Nut	M8
83	RE527858	2	Screw	-
84	RE524730	24	Cap Screw	-
85	57M12138	3	Clamp	-
86	57M10907	3	Clamp	-
87	14M7296	4	Flange Nut	M10
88	R521159	2	Stud	-
89	DZ105787	2	Spacer	SUB FOR R535122
90	RE539464	1	Fitting	-
91	R79915	1	O-Ring	-
92	T15712	1	O-Ring	-
93	RE559363	1	Bracket	-
94	DZ104375	1	Bracket	MARKED DZ104374
95	DZ115244	1	Engine Controller	Air Cooled Level 32, SUB FOR RE546396
95	RE546396	1	Engine Controller	-
96	38H1416	1	Fitting	-
97	19M7807	2	Screw	M10 X 60
98	19M7786	2	Screw	M10 X 30
99	19M7798	4	Screw	M8 X 40
100	DZ117174	1	Bracket	-
101	19M7868	2	Screw	M8 X 30, SUB FOR APPL 19M7867
102	RE66334	1	Cap Screw	-
103	R545634	1	Stud	-
104	RE557885	1	Electrical Connector Assy	-
105	57M9819	1	Elec. Connector Housing	-
106	57M9814	4	Elec. Connector Cavity Plug	-
107	57M9775	1	Elec. Connector Housing	Engine Cam Sensor, B5302
107	DZ107591	1	Electrical Connector Cap	-
107	57M10321	2	Elec. Connector Terminal	-
108	57M9773	1	Elec. Connector Housing	B5205, Intercooler Outlet Temperature Sensor
108	57M10321	2	Elec. Connector Terminal	-
108	DZ107591	1	Electrical Connector Cap	-
109	57M9773	1	Elec. Connector Housing	B5206, Manifold Air Temperature
109	DZ107591	1	Electrical Connector Cap	-
109	57M10321	2	Elec. Connector Terminal	-
110	57M9781	1	Elec. Connector Housing	B5104, Intake Manifold Pressure
110	57M10321	3	Elec. Connector Terminal	-
111	57M9786	1	Elec. Connector Housing	Y5401, Intake Air Throttle
111	57M10230	1	Elec. Connector Accessory	-
111	57M10321	5	Elec. Connector Terminal	-
111	57M9814	1	Elec. Connector Cavity Plug	-

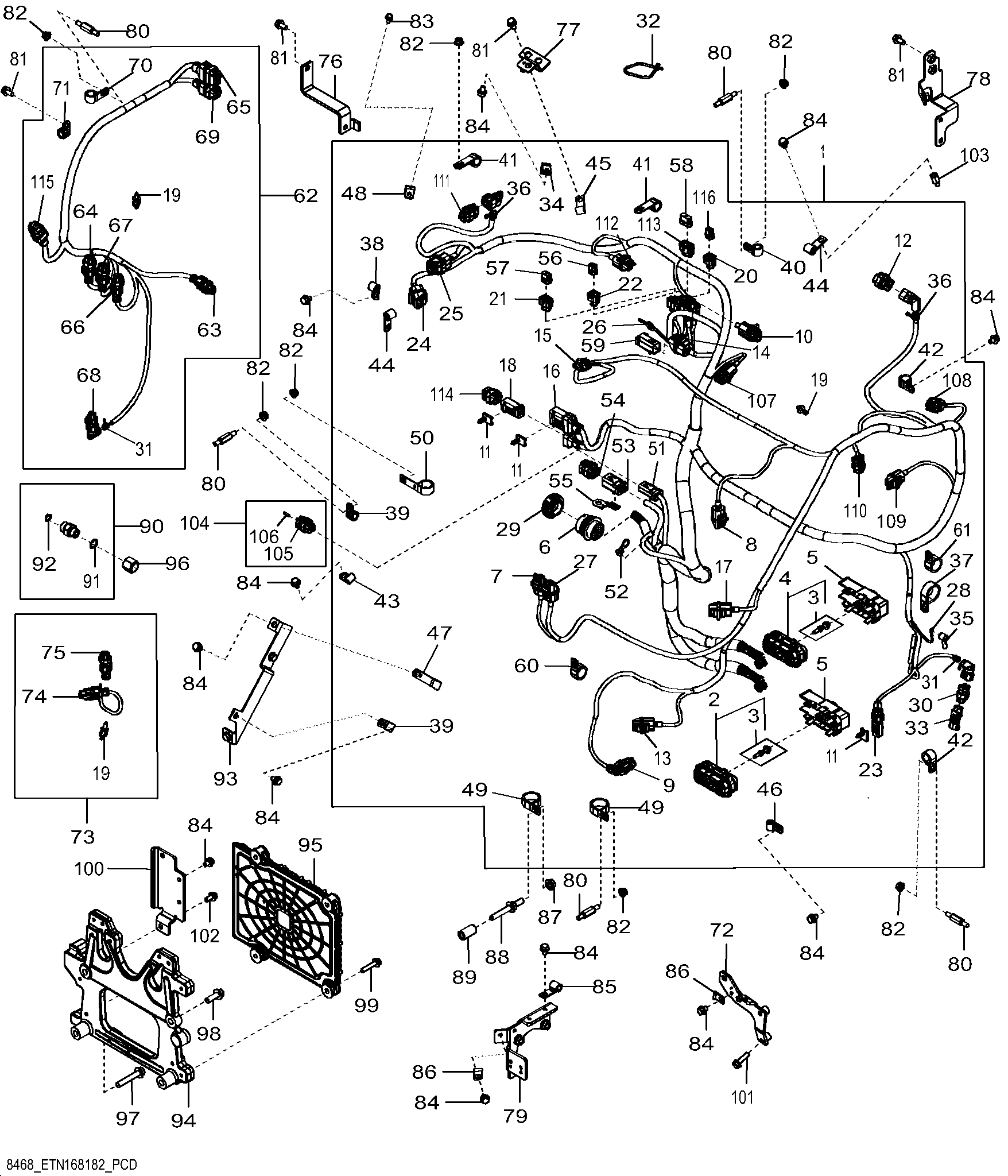

8468 Engine Wiring Harness (031764 - )
