Открытый узел

6575 Turbocharger

6575 Turbocharger

6575 Turbocharger

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

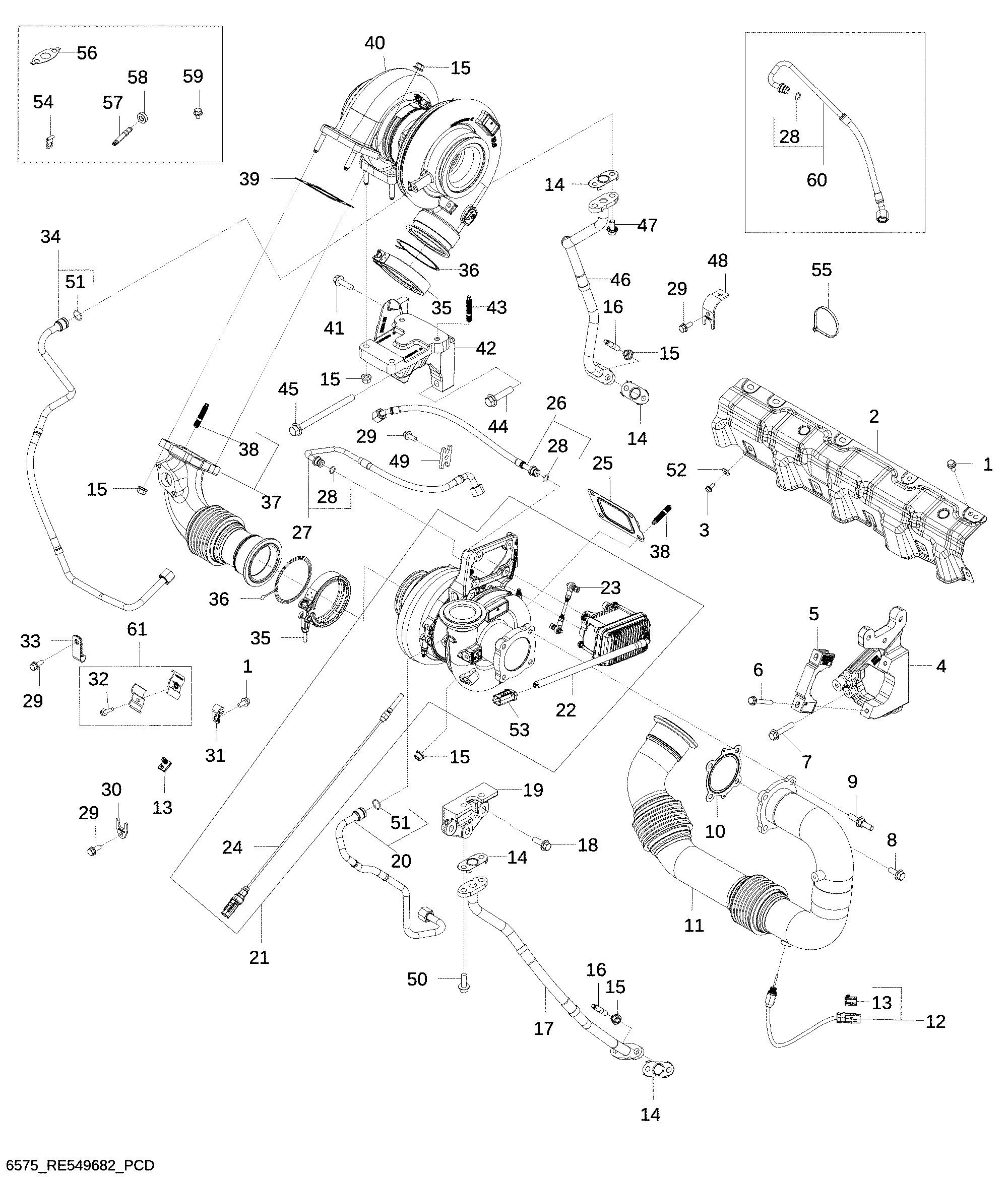

6575 Turbocharger

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	6	Screw	M8 X 16
2	R530601	1	Heat Shield	Rocker Cover
3	19M7774	5	Screw	M6 X 12
4	R551124	1	Bracket	Turbocharger, MARKED DZ10019; ALSO ORDER R551126 AND 19M7786; SUB FOR R534335 OR RE567671
5	R535030	1	Clamp	Compressor Duct, MARKED R536766
6	19M7801	2	Screw	M8 X 60
7	19M8292	3	Screw	M10 X 50
8	19M7785	1	Screw	M10 X 25
9	R527611	3	Stud	-
10	RE540355	1	Gasket	-
11	RE553187	1	Air Duct	Turbocharger Compressor Interstage
12	RE546613	1	Sensor	Pigtail EGR Temperature Sensor
13	57M9940	3	Elec. Connector Accessory	-
14	DZ100375	4	Gasket	Turbo Drain Line
15	R539762	16	Flange Nut	-
16	R530855	4	Stud	-
17	DZ121369	1	Line	High Pressure Turbo Oil Drain, SUB FOR DZ100543 OR RE550045
18	19M7786	3	Screw	M10 X 30
19	R551126	1	Bracket	Turbocharger, MARKED DZ10023
20	DZ114378	1	Oil Line	Turbo Feed, SUB FOR RE554499; INCLUDES DZ114164
21	DZ102306	1	Turbocharger	24 V, High Pressure, SUB FOR RE553195
22	DZ114561	1	Actuator	24 V, SUB FOR RE558398; INCLUDES 57M9746
23	RE558399	1	Linkage	High Pressure Turbocharger
24	DZ103962	1	Sensor Kit	Turbocharger Speed Sensor, SUB FOR RE540025
25	RE553167	1	Gasket	Turbocharger
26	RE567907	1	Line	Actuator Coolant Supply, SUB FOR APPL RE554569
27	RE563764	1	Line	Actuator Coolant Return
28	R28776	2	O-Ring	-
29	19M7866	4	Screw	M8 X 20
30	R529067	1	Clamp	-
31	57M9854	1	Clamp	SUB FOR APPL 57M10828
32	19M7863	2	Screw	M6 X 25
33	T24802	1	Clip	-
34	DZ114376	1	Oil Line	Turbo Feed, INCLUDES DZ114164; SUB FOR RE567748 OR RE554599
35	RE285844	2	Clamp	-
36	R528620	2	Gasket	Low Pressure Turbocharger
37	RE553188	1	Air Flow Tube	Turbo Exhaust Connection
38	R528619	6	Stud	-
39	RE541291	1	Gasket	-
40	-	1	Part 40	Low Pressure, ORDER RE550979
40	RE550979	1	Turbocharger	-
41	19M7835	1	Screw	M10 X 35
42	R534336	1	Bracket	Low Pressure Turbocharger Support, MARKED R536544
43	R530341	2	Stud	-
44	19M8112	1	Screw	M12 X 55
45	19M7822	1	Screw	M12 X 160
46	DZ101740	1	Line	Low Pressure Turbo Oil Drain, SUB FOR RE550043
47	N275620	2	Screw	-
48	R530300	1	Clamp	-
49	R534737	1	Clamp	Actuator Coolant Fitting
50	19M9214	2	Screw	M10 X 30
51	DZ114164	2	O-Ring	SUB FOR APPL R163559
52	24H1821	5	Washer	9/32" X 47/64" X 1/16", SUB FOR 24H1646
53	57M9746	1	Elec. Connector Housing	-
54	57M10907	1	Clamp	-
55	R105388	1	Tie Band	-
56	R521349	4	Gasket	Turbo Oil Drain, ORDER DZ100375
57	R543352	4	Stud	Turbo Foot, USE WITH RE553195
58	R543924	4	Washer	10.900 X 22.200 X 7 mm (0.429" X 0.874" X 0.276"), Turbo Foot, USE WITH RE553195
59	RE524730	1	Cap Screw	M8 X 12
60	RE554570	1	Line	Actuator Coolant Return, ORDER RE563764
61	RE541977	2	Clamp Kit	-
