Открытый узел

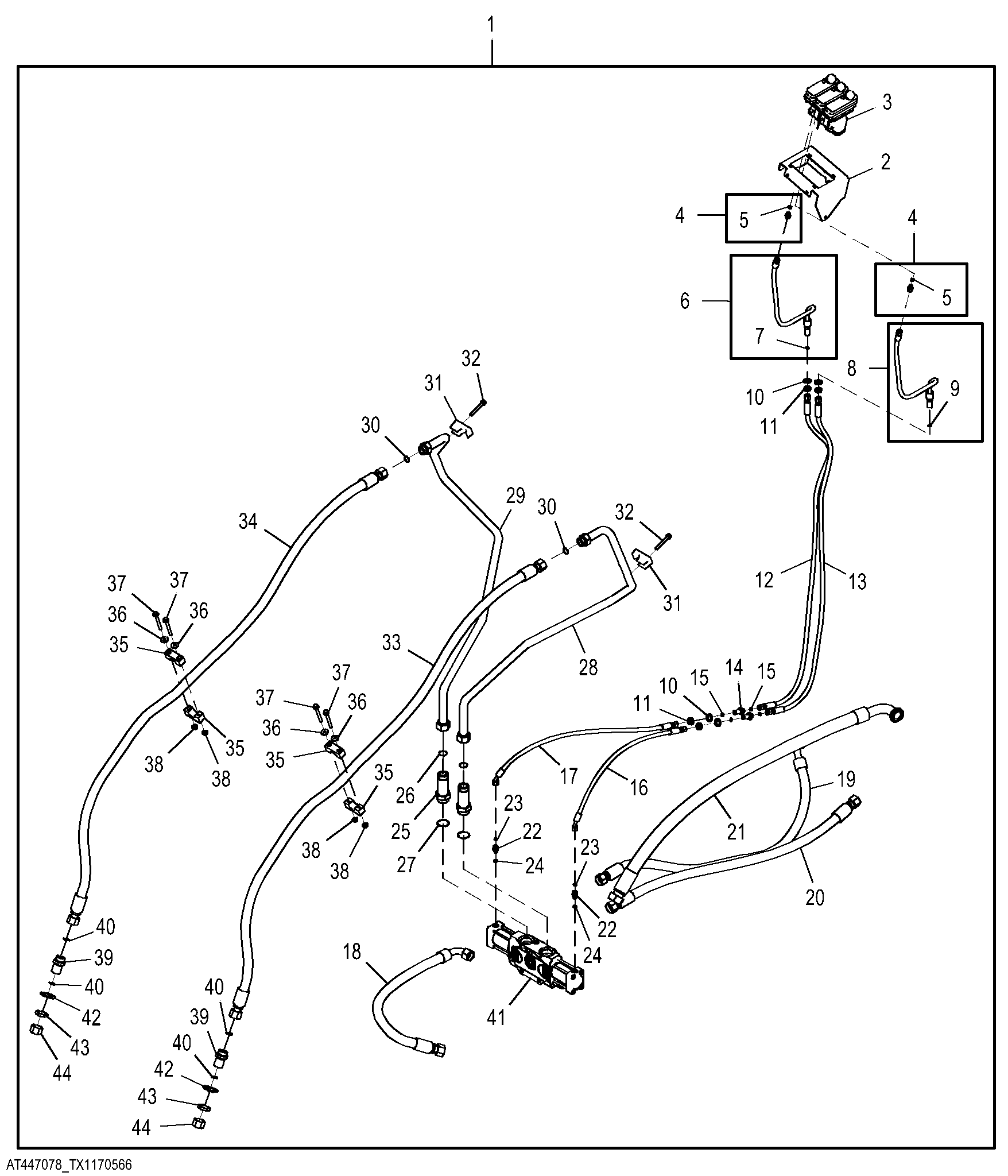

2-Lever to 3-Lever Pilot Controller Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Three Spool Stud Assembly Not Illustrated, INCLUDES (2) 810000500 AND (2) T170067
1	AT447078	1	Control Kit	Whole Goods, INCLUDES (3) AT207984
1	T170067	6	Nut	Not Illustrated
1	810000500	6	WASHER*5/8	Not Illustrated
2	AT341526	1	Plate	-
3	AT300154	1	Hydr./Pilot Control Valve	3-Lever Fingertip Controller Components On Seperate Page
4	63H1001	2	Fitting	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	AT336507	1	Hydraulic Hose	Fabricate
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT336507	1	Hydraulic Hose	Fabricate
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	12H327	4	Lock Washer	3/4"
11	T81029	4	Nut	-
12	AT340873	1	Hydraulic Hose	Fabricate
13	AT340873	1	Hydraulic Hose	Fabricate
14	38H1285	2	Union Fitting	-
15	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	AT323706	1	Hydraulic Hose	-
17	AT323706	1	Hydraulic Hose	-
18	AT322737	1	Hydraulic Hose	Fabricate
19	AT362098	1	Hydraulic Hose	Fabricate
20	AT350447	1	Hydraulic Hose	Fabricate
21	AT362102	1	Hydraulic Hose	Fabricate
22	38H1160	2	Adapter Fitting	-
23	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	38H1615	2	Adapter Fitting	-
26	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
27	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
28	AT330023	1	Oil Line	-
29	AT330024	1	Oil Line	-
30	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
31	T104355	2	Clamp	-
32	19M9128	2	Screw	M10 X 75
33	AT322754	1	Hydraulic Hose	Fabricate
34	AT322754	1	Hydraulic Hose	Fabricate
35	T67995	4	Clamp	-
36	24M7296	4	Washer	10.500 X 30 X 2.500 mm
37	19M7811	4	Screw	M10 X 90
38	14M7296	4	Flange Nut	M10
39	38H1287	2	Adapter Fitting	-
40	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
41	AT312731	1	Flow Control Hyd. Valve	Auxiliary Valve Section Components On Seperate Page
42	T216836	2	Lock Washer	-
43	T78715	2	Nut	-
44	38H1419	2	Fitting	-

2-Lever to 3-Lever Pilot Controller Conversion Kit

Нет текстового описания
