Single Lever Controller Auxiliary Section And Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT326301	1	Field Installation Kit	NLA
2	12H327	2	Lock Washer	3/4"
3	14M7296	4	Flange Nut	M10
4	14M7397	4	Lock Nut	M6
5	19M7818	2	Screw	M12 X 80
6	19M7811	4	Screw	M10 X 90
8	24M7296	4	Washer	10.500 X 30 X 2.500 mm
9	38H1419	2	Fitting	-
10	38H1023	1	Tee Fitting	-
11	R26448	3	O-Ring	-
12	T77613	6	O-Ring	-
13	38H1160	1	Adapter Fitting	-
14	38H1285	1	Union Fitting	-
15	38H1287	1	Adapter Fitting	-
16	T76938	4	O-Ring	-
17	AT313551	2	Fitting	-
18	62H1001	2	Adapter Fitting	SUB FOR 63H1001
19	AT228703	2	Hydraulic Hose	-
20	T81029	2	Nut	-
21	AT226132	1	Oil Line	-
22	T78612	2	O-Ring	-
23	AT226133	1	Oil Line	-
24	-	1	Part 23	-
25	AT228261	1	Plate	-
27	AT330023	1	Oil Line	SUB FOR AT321319
28	R26773	2	O-Ring	-
29	AT330024	1	Oil Line	SUB FOR AT321321
30	AT322651	1	Hydraulic Hose	2" X 1463 mm (57-3/4") X 2", Fabricate
31	AT329642	1	Hydraulic Hose	42.8752" X 1315 mm (51-3/4") X 42.8752", Fabricate, SUB FOR AT322672
32	AT322689	1	Hydraulic Hose	36.5252" X 1498 mm (59") X 36.5252", Fabricate
33	AT322737	1	Hydraulic Hose	36.5252" X 915 mm (36") X 36.5252", Fabricate
34	AT322754	2	Hydraulic Hose	36.5252" X 2540 mm (100") X 36.5252", Fabricate
35	AT323706	2	Hydraulic Hose	17.4752" X 927 mm (36-1/2") X 17.4752"
36	AT323707	2	Hydraulic Hose	-
37	T104355	2	Clamp	-
38	T216836	2	Lock Washer	-
39	T67995	4	Clamp	-
40	T78715	2	Nut	-
41	T81029	2	Nut	-

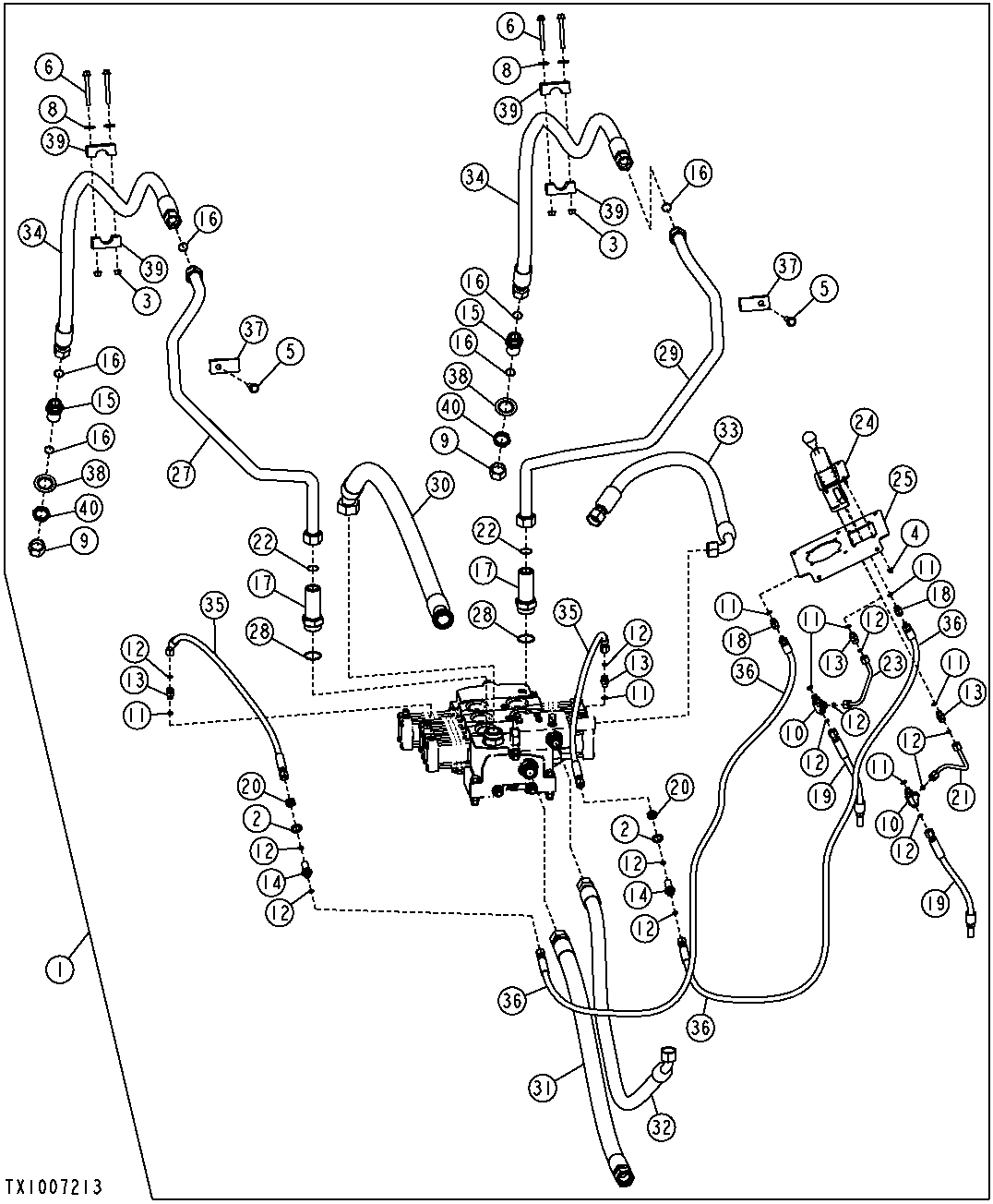

Single Lever Controller Auxiliary Section And Hydraulics
