PIN DISCONNECT VALVE, WIRING HARNESS, AND HYDRAULIC PLUMBING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(PIN DISCONNECT FIELD KIT) ( AT311009 NLA)
2	14M7400	2	Lock Nut	M10
3	19M7804	2	Screw	M10 X 40
4	19M7836	2	Screw	M10 X 110
5	24M7296	2	Washer	10.500 X 30 X 2.500 mm
6	38H1415	2	Fitting	-
7	38H1023	1	Tee Fitting	-
8	R26448	5	O-Ring	-
9	T77613	8	O-Ring	-
10	38H1045	1	Elbow Fitting	-
11	38H1045	1	Elbow Fitting	(USE WITH AT158103 ) (SUB FOR 38H1160)
11	38H1521	1	Elbow Fitting	45 DEGREE, (USE WITH <service-part qty="1">AT355600</service-part>, <service-part qty="1">R26448</service-part> AND <service-part qty="1">T77857</service-part > (FACTORY INSTALLED))
12	38H1173	2	Adapter Fitting	-
13	T77857	4	O-Ring	-
14	38H1354	1	Tube Nut	-
14	AT325601	1	Oil Line	-
15	T81029	2	Nut	17.475 mm (11/16")
16	AT325602	1	Oil Line	-
16	38H1354	1	Tube Nut	-
17	AT325647	2	Hydraulic Hose	17.4752" X 2514 mm (99") X 17.4752"
18	AT158103	1	Hydraulic Hose	17.4752" X 1955 mm (77") X 17.4752", (AT325673 NLA)
18	AT355600	1	Hydraulic Hose	(SUB FOR <service-part qty="1">AT158103</service-part>, THIS APPLICATION)(FACTORY INSTALLED) Fabricate
19	AT304346	1	Hydraulic Hose	9/16" X 1775 mm (70") X 9/16", (SUB FOR AT325691)
20	H75541	2	Clamp	-
21	38H1024	1	Tee Fitting	-
22	AT225530	1	Hyd Actuated Control Valve	Components On Separate Page
23	T76719	2	Clamp	-
24	14M7296	2	Flange Nut	M10
25	19M7785	2	Screw	M10 X 25
26	R26375	1	O-Ring	-

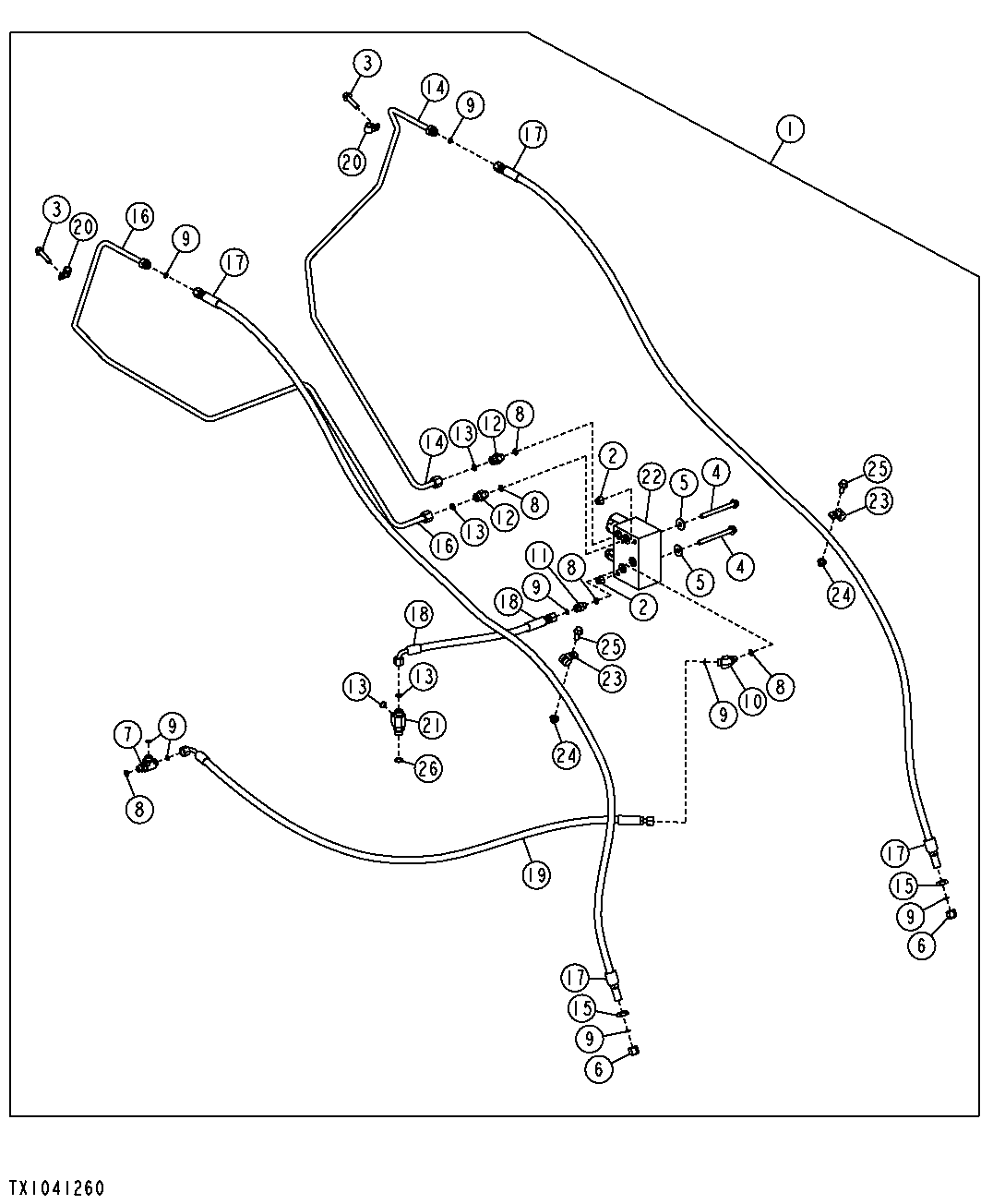

PIN DISCONNECT VALVE, WIRING HARNESS, AND HYDRAULIC PLUMBING
