Открытый узел

Main Hydraulic Pumps

Main Hydraulic Pumps

Main Hydraulic Pumps

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

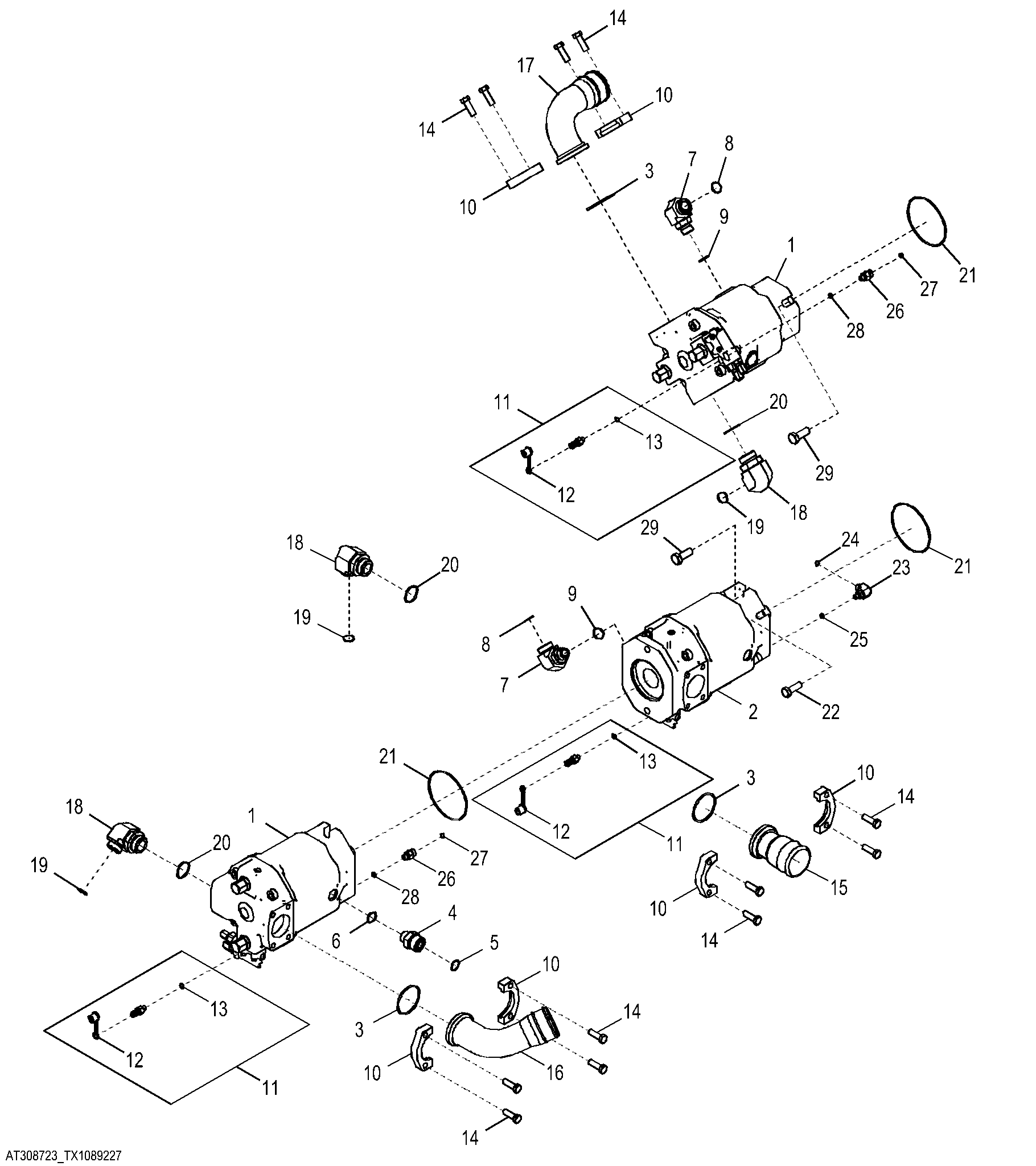

Main Hydraulic Pumps

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT347904	2	Hydraulic Pump	INCLUDES AT347902
1	AT323920	2	Hydraulic Pump	NLA, ORDER AT347904, INCLUDES AT302144
1	T201525	1	Seal	-
1	T201521	1	Gasket	Controller Seal Plate
1	AT341165	1	Seal Kit	Pump Controller Seal Kit, USE WITH AT347902
1	AT347902	1	Spool Valve	ALSO ORDER AT341165
1	AT302144	1	Spool Valve	NLA, ORDER AT347902 AND AT341165
1	AT302146	1	Seal Kit	Hydraulic Pump Seal Kit
1	PG200237	1	Hydraulic Pump Reman	REMAN FOR AT323920
1	AT306219	1	Seal Kit	Pump Controller Seal Kit, USE WITH AT302144
2	AT306219	1	Seal Kit	Pump Controller Seal Kit, USE WITH AT311194
2	T201525	1	Seal	-
2	T201521	1	Gasket	Controller Seal Plate
2	AT341165	1	Seal Kit	Pump Controller Seal Kit, USE WITH AT347908
2	AT347908	1	Control Valve	ALSO ORDER AT341165
2	AT311194	1	Control Valve	NLA, ORDER AT347908 AND AT341165
2	AT302146	1	Seal Kit	Hydraulic Pump Seal Kit
2	PG200236	1	Hydraulic Pump Reman	REMAN FOR AT347909 AND AT316685
2	AT347909	1	Hydraulic Pump	INCLUDES AT347908
2	AT316685	1	Hydraulic Pump	NLA, ORDER AT347909, INCLUDES AT311194
3	U12331	3	O-Ring	69.444 X 3.531 mm (2-47/64" X 0.139")
4	38H1179	1	Adapter Fitting	-
5	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
6	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
7	38H1305	2	Elbow Fitting	-
8	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
9	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	X51H-40	6	Flange Fitting	SUB FOR U44384
11	AT180119	3	Fitting	-
12	R77175	1	Cover	-
13	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
14	19H2993	12	Cap Screw	1/2" X 1-1/2"
15	T196285	1	Flange Fitting	-
16	T197049	1	Elbow Fitting	-
17	T204584	1	Elbow Fitting	-
18	38H1325	3	Elbow Fitting	-
19	T76938	3	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
20	U13639	3	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
21	T107883	3	O-Ring	124 X 3 mm (4.882" X 0.118")
22	19M7404	4	Cap Screw	M14 X 40
23	38H1435	1	Elbow Fitting	-
24	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
26	38H1309	1	Adapter Fitting	-
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
29	19M7488	4	Cap Screw	M16 X 40
