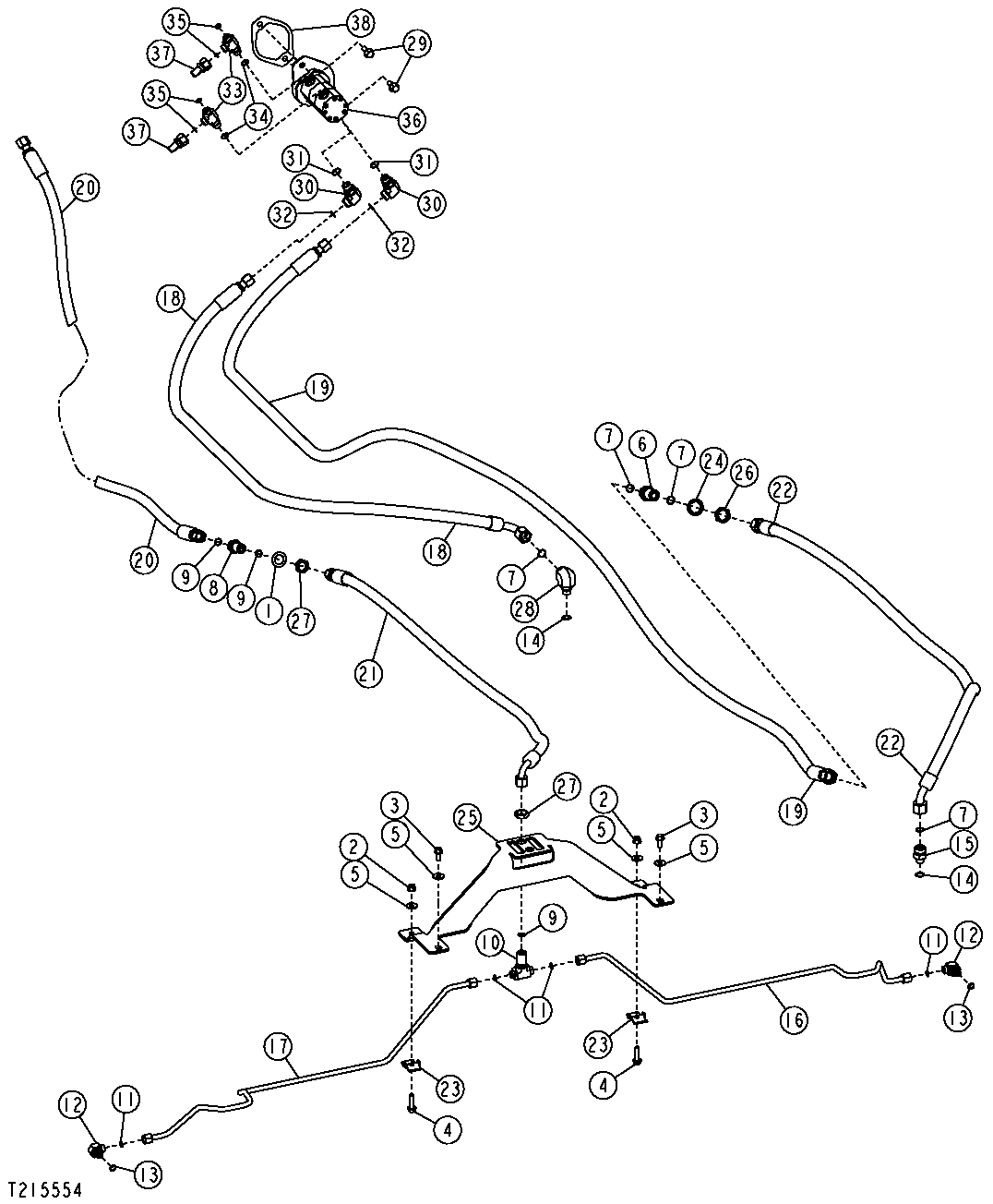

FRONT AXLE OIL COOLING RECIRCULATION LINES AND RECIRCULATION PUMP

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H329	1	Lock Washer	1"
2	14M7400	4	Lock Nut	M10
3	19M7786	2	Screw	M10 X 30
4	19M7804	2	Screw	M10 X 40
5	24M7296	4	Washer	10.500 X 30 X 2.500 mm
6	38H1276	1	Adapter Fitting	-
7	T77858	2	O-Ring	-
8	38H1286	1	Adapter Fitting	-
9	T77932	2	O-Ring	-
10	38H1520	1	Tee Fitting	-
11	T77857	1	O-Ring	-
12	38H5036	1	Elbow Fitting	-
13	51M7042	1	O-Ring	13.300 X 2.200 mm
14	51M7045	2	O-Ring	19.300 X 2.200 mm
15	38H5121	1	Adapter Fitting	-
16	AT323868	1	Oil Line	-
17	AT323943	1	Oil Line	-
18	AT328851	1	Hydraulic Hose	Fabricate, (SUB FOR AT326265)
19	AT326266	1	Hydraulic Hose	1" X 3800 mm (149-1/2") X 30.1752", Fabricate
20	AT328847	1	Hydraulic Hose	Fabricate, (SUB FOR AT326267)
21	AT328848	1	Hydraulic Hose	Fabricate, (SUB FOR AT326268)
22	AT326269	1	Hydraulic Hose	30.1752" X 1800 mm (70-3/4") X 30.1752", Fabricate
23	T159950	2	Clamp	-
24	T174275	1	Lock Washer	-
25	T216987	1	Bracket	-
26	T78707	1	Nut	-
27	T80306	3	Nut	-
28	38H5066	1	Elbow Fitting	-
29	19M7789	2	Screw	M12 X 30
30	38H1006	1	Elbow Fitting	-
31	R26906	1	O-Ring	-
32	T77932	1	O-Ring	-
33	38H1024	1	Tee Fitting	-
34	R26375	1	O-Ring	-
35	T77857	7	O-Ring	-
36	AT309296	1	Pump	-
37	AT312932	2	Fitting	-
38	R501137	1	Gasket	-

FRONT AXLE OIL COOLING RECIRCULATION LINES AND RECIRCULATION PUMP

Нет текстового описания
