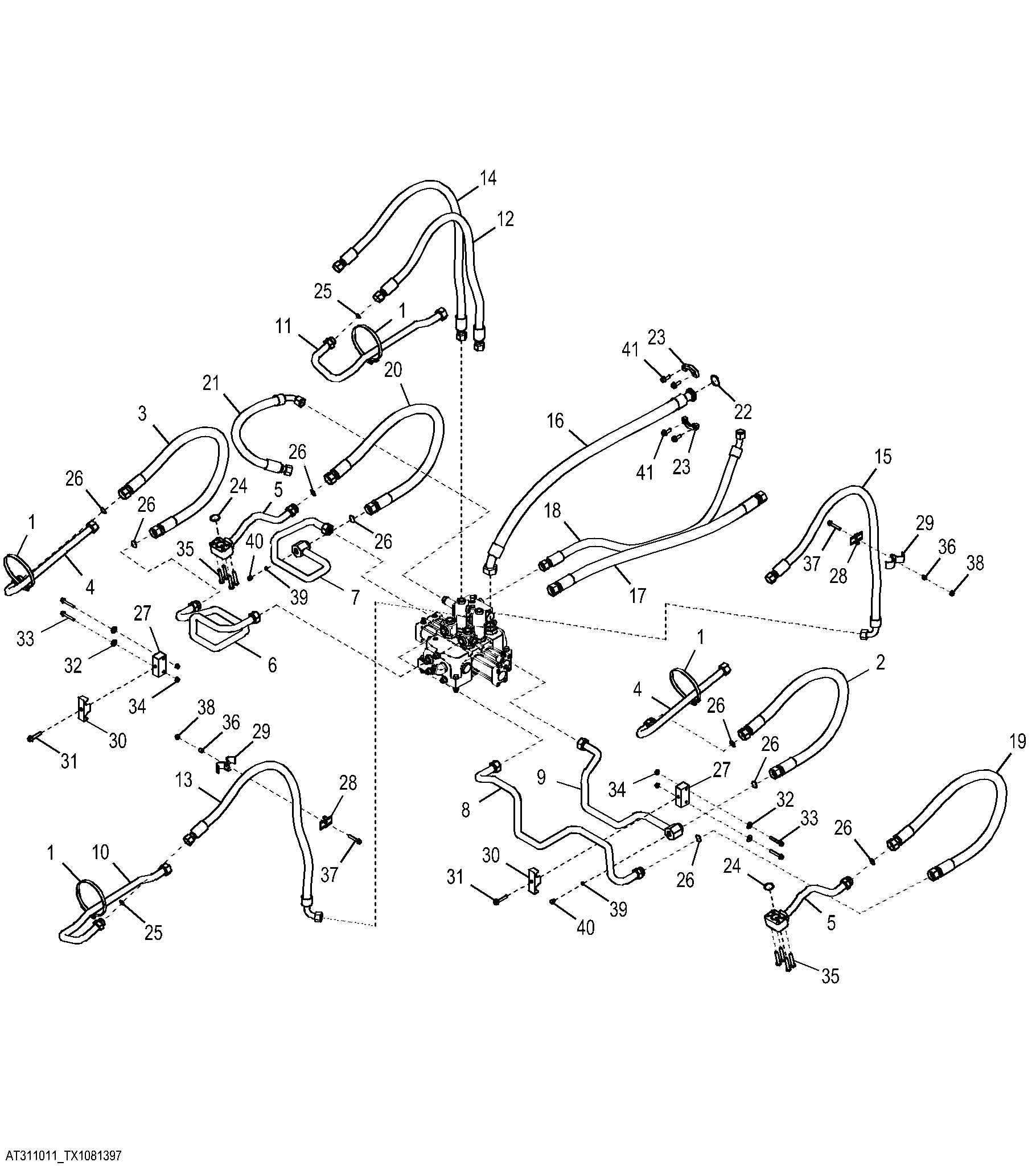

Boom And Bucket Cylinder Hydraulics (2-Spool Control Valve)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH130230	4	Hose Clamp	-
2	AT203018	1	Hydraulic Hose	42.8752" X 1435 mm (56-1/2") X 42.8752"
3	AT203018	1	Hydraulic Hose	42.8752" X 1435 mm (56-1/2") X 42.8752"
4	AT203027	2	Oil Line	Boom Raise
5	AT203028	2	Oil Line	Boom Lower
6	AT322316	1	Oil Line	-
7	AT322317	1	Oil Line	-
8	AT322318	1	Oil Line	-
9	AT322319	1	Oil Line	-
10	AT322513	1	Oil Line	-
11	AT322514	1	Oil Line	-
12	AT322549	1	Hydraulic Hose	36.5252" X 1539 mm (60-1/2") X 36.5252"
13	AT322550	1	Hydraulic Hose	36.5252" X 1595 mm (62-3/4") X 36.5252"
14	AT330043	1	Hydraulic Hose	36.5252" X 1625 mm (64") X 36.5252", (SUB FOR AT322551)
15	AT330044	1	Hydraulic Hose	36.5252" X 1676 mm (66") X 36.5252", (SUB FOR AT322552)
16	AT322652	1	Hydraulic Hose	2" X 1540 mm (60-3/4") X 2"
17	AT329643	1	Hydraulic Hose	42.8752" X 1390 mm (54-3/4") X 42.8752", Fabricate, (SUB FOR AT322673)
18	AT322688	1	Hydraulic Hose	Fabricate
19	AT322732	1	Hydraulic Hose	42.8752" X 1498 mm (59") X 42.8752", Fabricate
20	AT322732	1	Hydraulic Hose	42.8752" X 1498 mm (59") X 42.8752", Fabricate
21	AT322736	1	Hydraulic Hose	36.5252" X 838 mm (33") X 36.5252", Fabricate
22	T34248	1	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
23	X51H-24	2	Flange Fitting	-
24	T72216	2	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
25	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
26	T78612	8	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
27	T156738	2	Clamp	-
28	T159956	2	Clamp	-
29	T209726	2	Half Clamp	-
30	T52979	2	Clamp	-
31	19M7816	2	Screw	M12 X 65
32	24M7296	4	Washer	10.500 X 30 X 2.500 mm
33	19M7809	4	Screw	M10 X 70
34	14M7296	4	Flange Nut	M10
35	19H3057	8	Cap Screw	1/2" X 2-3/4"
36	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
37	19M7808	2	Screw	M10 X 65
38	14M7400	2	Lock Nut	M10
39	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
40	R27218	2	Fitting Plug	-
41	19M7790	4	Screw	M12 X 35

Boom And Bucket Cylinder Hydraulics (2-Spool Control Valve)
