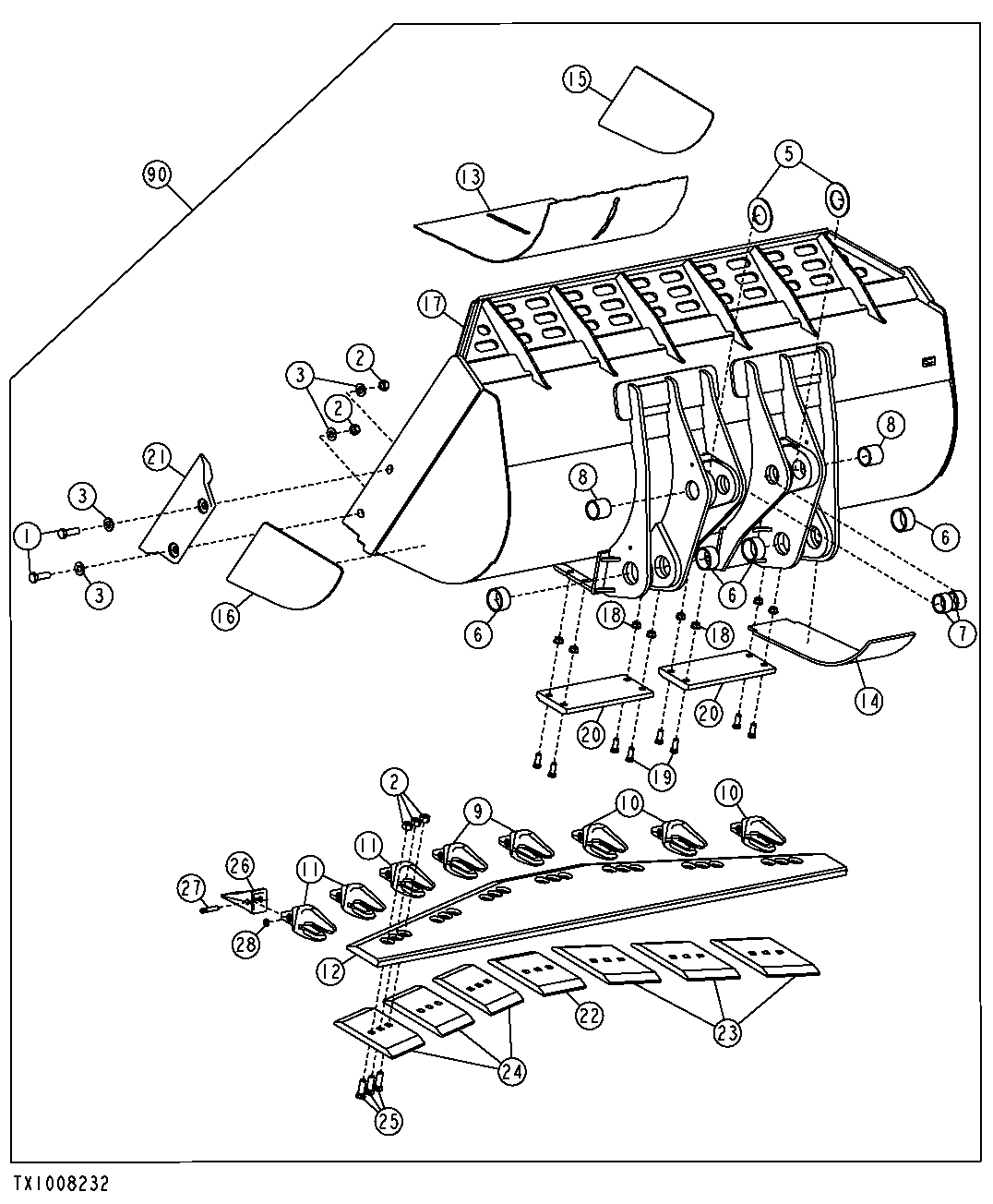

6.0 CUBIC YARD ROCK BUCKET (STD) (SN -612719)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4836	8	Cap Screw	1-1/4" X 4", (SUB FOR (4) 08H4042)
2	14H1114	28	Nut	1-1/4", (SUB FOR (25) 14H824)
3	24H1687	16	Washer	1-3/8" X 2-3/4" X 1/4"
5	T208660	2	Disk	-
6	T208661	4	Bushing	-
7	T208662	2	Bushing	-
8	T208663	2	Bushing	-
9	T1258404	2	Bucket Tooth Adapter	-
10	T1258405	3	Bucket Tooth Adapter	RH
11	T1258406	3	Bucket Tooth Adapter	LH
12	T211766	1	Dura-Max Cutting Edge	-
13	-	3	Part 12	( T211767 NLA)
14	-	2	Part 13	( T212151 NLA)
15	-	2	Part 14	RH ( T212152 NLA)
16	-	2	Part 15	LH ( T212160 NLA)
17	-	1	Part 16	( T212168 NLA)
18	T146932	8	Nut	-
19	T146933	8	Bolt	-
20	T198121	2	Dura-Max Cutting Edge	(SHOE)
21	T210715	2	Dura-Max Cutting Edge	(SIDE CUTTER)
22	T211887	1	Dura-Max Cutting Edge	(FLAT CUTTING EDGE)
22	T1167460	1	Cutting Edge	(HALF-ARROW CUTTING EDGE)
23	T211888	3	Dura-Max Cutting Edge	(FLAT CUTTING EDGE)
23	T1167461	3	Cutting Edge	(HALF-ARROW CUTTING EDGE)
24	T211889	3	Dura-Max Cutting Edge	(FLAT CUTTING EDGE)
24	T1167462	3	Cutting Edge	(HALF-ARROW CUTTING EDGE)
25	T79002	21	Bolt	31.750 X 101.600 mm (1-1/4" X 4")
26	T7T3402	8	Tooth	-
27	T7T3408	8	Pin Fastener	-
28	T7T3409	8	Retainer	-
90	-	1	Part 31	Rock Teeth, (AT331627 NLA) (SUB AT336071 ) (ALSO ORDER (4) AT228893, (4) AT311567, (2) AT333721, (2) AT353858, (4) T101480, (4) T102140, (2) T233015 AND (12) T208908)
90	-	1	Part 32	Rock Bucket w/ Bolt-On Cutting Edge, (SUB AT346114 ) (ALSO ORDER (4) AT228893, (4) AT311567, (2) AT333721, (2) AT353858, (4) T101480, (4) T102140, (2) T233015 AND (12) T208908)

6.0 CUBIC YARD ROCK BUCKET (STD) (SN -612719)
