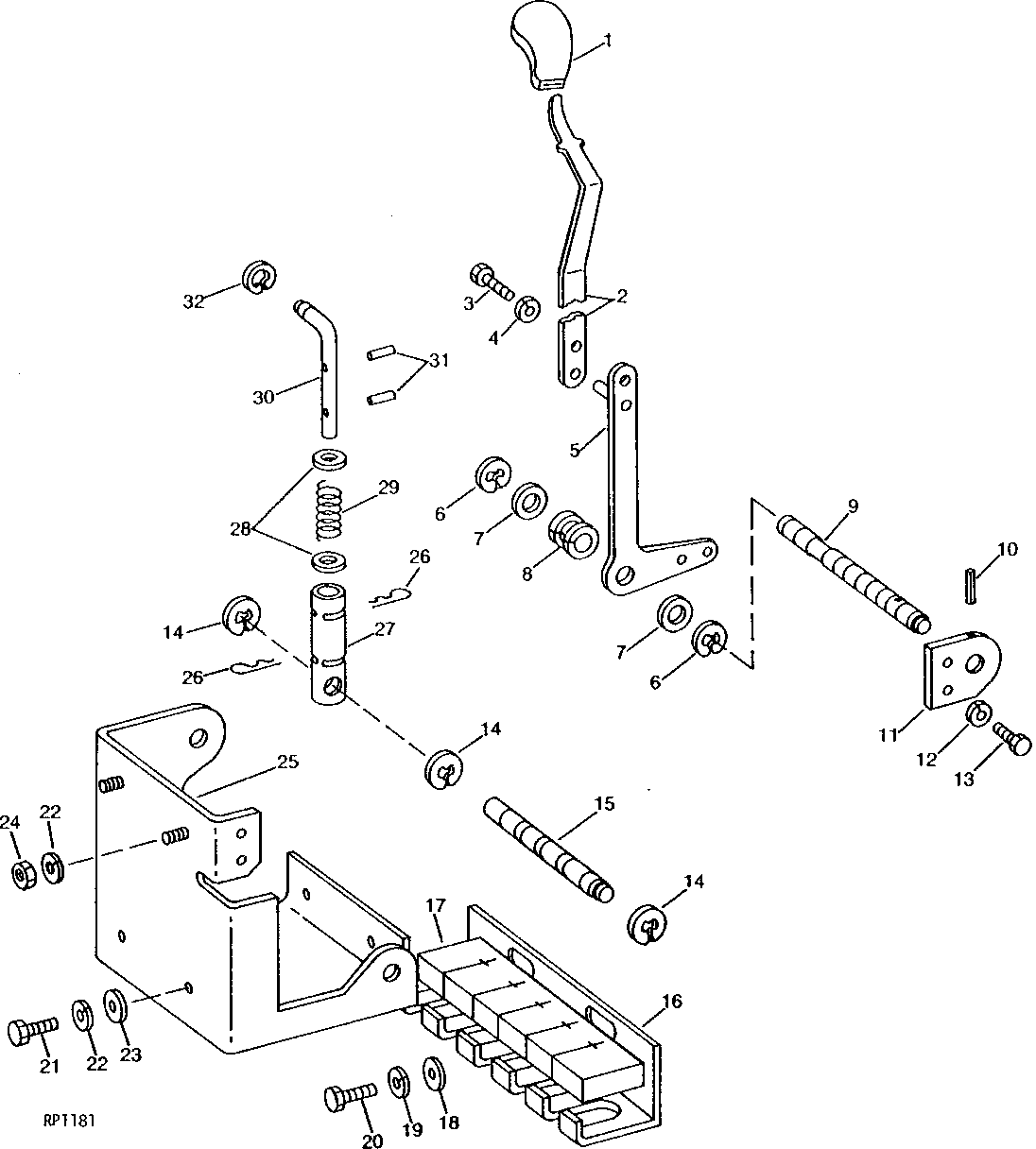

Selective Control Levers

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R52691	1	Grip	Plain
1	R52690	1	Grip	Boss Inside
1	R52692	1	Grip	Boss Outside
2	R63211	1	Lever	ORDER R81473, RE20613 AND (2) 19H2020; Single
2	R63212	1	Lever	ORDER R81474, RE20613 AND (2) 19H2020; Dual
2	R63213	1	Lever	ORDER R81475, RE20613 AND (2) 19H2020; Triple
2	R65094	1	Lever	ORDER R81476, RE20614 AND (2) 19H2020; Quad
3	19H1919	1	Cap Screw	1/4" X 5/8", (2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
4	12H302	1	Lock Washer	1/4", (2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
5	RE11493	1	Kit	(4 USED QUAD) (SUB RE20614, R81476 AND (2) 19H2020)
5	RE11492	1	Arm	(1 USED SINGLE) (2 USED DUAL) (3 USED TRIPLE) (SUB RE20613, R81473 OR R81474 OR R81475 AND (2) 19H2020)
6	F2863R	1	Snap Ring	(4 USED DUAL) (6 USED TRIPLE) (8 USED QUAD) (LESS ROCKSHAFT)
6	F2863R	1	Snap Ring	(6 USED DUAL) (8 USED TRIPLE) (10 USED QUAD) (ROCKSHAFT)
7	24H1658	1	Washer	21/32" X 1" X 0.060", (4 USED DUAL) (6 USED TRIPLE) (8 USED QUAD) (LESS ROCKSHAFT)
7	24H1658	1	Washer	21/32" X 1" X 0.060", (7 USED DUAL) (9 USED TRIPLE) (11 USED QUAD) (ROCKSHAFT)
8	R58081	1	Washer	(2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
9	R66401	1	Shaft	-
10	34H184	1	Spring Pin	1/8" X 1-1/8"
11	R68593	1	Bracket	-
12	12H304	2	Lock Washer	3/8"
13	19H2021	2	Cap Screw	3/8" X 5/8"
14	R72655	1	Snap Ring	(6 USED DUAL) (8 USED TRIPLE) (10 USED QUAD) (SUB FOR T12808)
15	R65186	1	Shaft	-
16	R65092	1	Retainer	-
17	R65091	1	Seal	-
18	24H1290	2	Washer	21/64" X 3/4" X 0.035"
19	12H303	2	Lock Washer	5/16"
20	19H1900	2	Cap Screw	5/16" X 3/4"
21	19H1731	2	Cap Screw	3/8" X 1"
22	12H304	4	Lock Washer	3/8"
23	24H1309	4	Washer	13/32" X 1-1/16" X 0.120"
24	14H1076	2	Nut	3/8", HS, SAE 8
25	AR84030	1	Bracket	ORDER RE11164 AND R77514
26	R58078	1	Retainer	(4 USED DUAL) (6 USED TRIPLE) (8 USED QUAD)
27	R58079	1	Sleeve	(2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
28	24H1286	1	Washer	9/32" X 1/2" X 1/16", (4 USED DUAL) (6 USED TRIPLE) (8 USED QUAD)
29	R28914	1	SPRING	(2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
30	R58080	1	Pin Fastener	(2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
31	34H241	1	Spring Pin	1/8" X 3/8", (4 USED DUAL) (6 USED TRIPLE) (8 USED QUAD)
32	R72654	1	Snap Ring	(2 USED DUAL) (3 USED TRIPLE) (4 USED QUAD)
