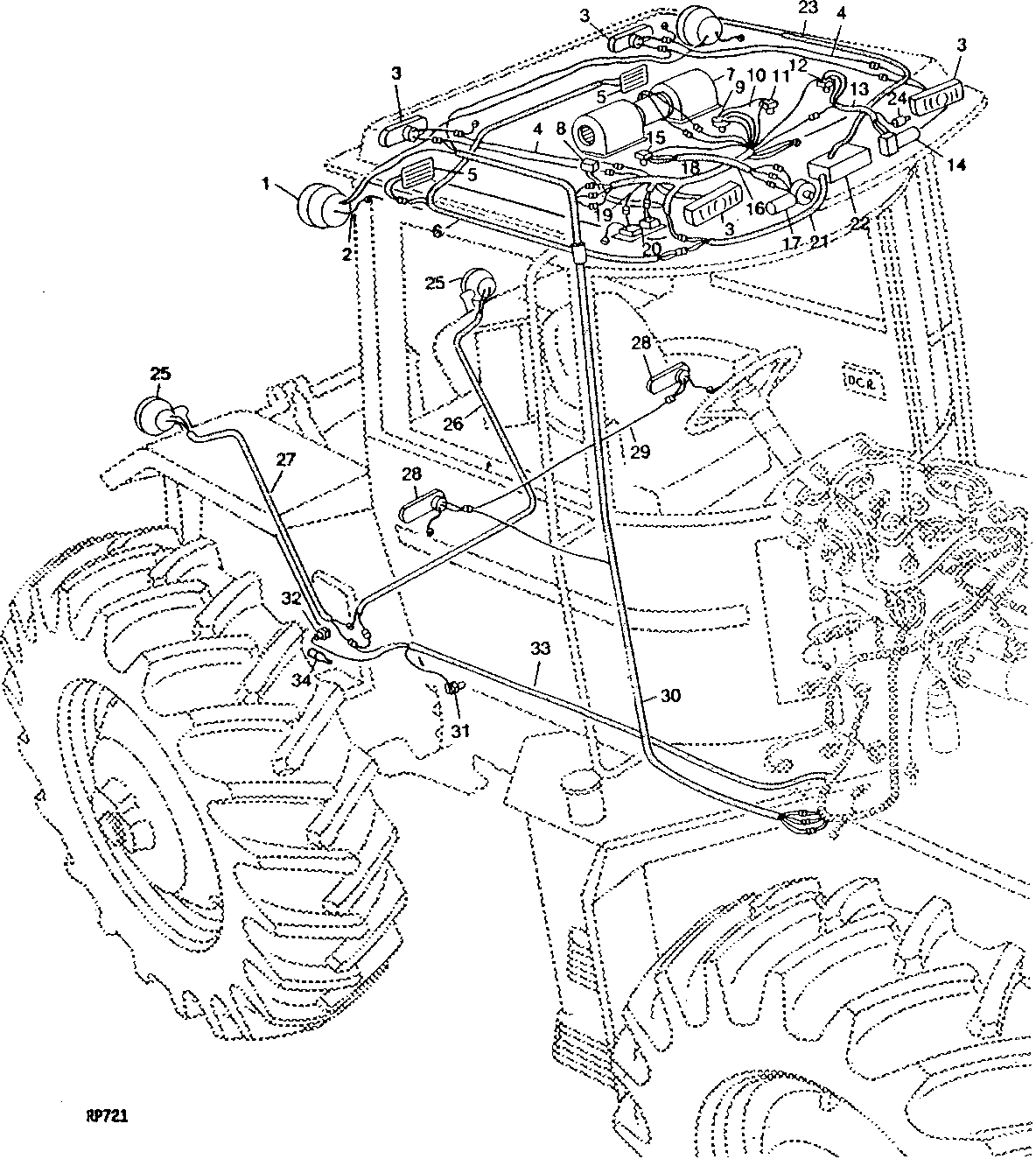

Rear Wiring

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE19075	2	Floodlamp	SUB FOR AR85859 APPL
2	AR84134	2	WIRING LEAD	GROUND
3	AR60250	4	Lamp	-
4	AR56211	2	Wiring Harness	WARNING AND FLOOD GROUND
5	AR74831	2	SPEAKER	-
6	AR103750	1	Radio Speaker WRG Harness	-
6	AR67951	1	WIRING HARNESS	SPEAKER
6	AR103750	1	Radio Speaker WRG Harness	-
6	AR67951	1	WIRING HARNESS	SPEAKER
7	RE10998	2	Blower	SUB FOR AR82006
8	AR90770	1	Resistor	BLOWER MOTOR
9	AR82014	1	Switch	BLOWER
10	-	1	Part 13	178MM (7"), MAKE FROM (2) R65600, (2) T28585 AND R32027
11	AR59779	1	TEMPERATURE SWITCH	ALSO ORDER R44165; COOLING TEMPERATURE
12	AR64992	1	Rotary Switch	LH WIPER
13	RE18945	1	Wiring Harness	USE WITH RE18943
13	RE26825	1	Wiring Harness	SUB FOR RE24386; USE WITH RE48783
13	RE13248	1	Wiring Harness	SUB FOR AR87339; USE WITH AR56691; LH WIPER MOTOR
14	RE48783	1	WIPER MOTOR	SUB FOR AR56691 OR RE18943; LH WIPER
15	AR64992	1	Rotary Switch	RH WIPER
16	RE48322	1	Wiper Motor Wiring Harness	RH WIPER MOTOR
17	RE58851	1	Motor	SUB FOR AR59444, RE13280, RE53496 OR RE56380; RH WIPER
18	AR82012	1	WIRING HARNESS	SOUND-GARD BODY
19	AR61645	1	Console Lamp Wiring Harness	CONSOLE LAMP
20	RE32328	1	Housing	SUB FOR RE10761 OR AR78418; DOME LIGHT
21	AR60557	1	Wiring Harness	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) RADIO AND TAPE PLAYER (USE WITH MOTOROLA) (NLA)
21	AR69589	1	Wiring Harness	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM AND TAPE PLAYER (USE WITH MOTOROLA) (NLA)
22	AR73146	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM RADIO (MOTOROLA) (NLA)
22	TY15279	1	KIT	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM RADIO (NLA)
22	TY15278	1	Radio	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM RADIO (NLA)
22	AR85839	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM (BOMAN) (NLA)
22	AR85837	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM (BOMAN) (NLA)
22	AR69588	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM (MOTOROLA) (NLA)
22	TY15279	1	KIT	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM RADIO (NLA)
22	TY15278	1	Radio	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM RADIO (NLA)
22	AR85839	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM (BOMAN) (NLA)
22	AR85837	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM (BOMAN) (NLA)
22	AR69588	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM-FM RADIO (MOTOROLA) (NLA)
22	AR73146	1	RADIO	(CHECK AUDIOVOX DIRECT - SHIP PROGRAM GUIDE) AM (MOTOROLA) (NLA)
23	AR61608	1	ANTENNA	-
23	TY15156	1	Antenna Kit	-
23	AR61608	1	ANTENNA	-
23	TY15156	1	Antenna Kit	-
24	AR56987	1	Switch	DOME LAMP DOOR
25	RE19075	2	Floodlamp	SUB FOR AR85859 APPL
26	AR85854	1	Wiring Harness	-
27	AR85855	1	Wiring Harness	-
28	AR78825	2	Tail Lamp	-
29	AR70110	1	Wiring Harness	-
30	AR84467	1	Wiring Harness	RH LIGHTING
31	RE38390	1	SWITCH	SUB FOR AR85323 OR AR89691; NEUTRAL START
32	AR88260	1	Switch	TRANSMISSION LUBE PRESSURE
33	AR87560	1	Wiring Harness	SUB RE11191, (16) R44302, (13) R53080 AND H113196
34	R70553	1	Cap	NLA
