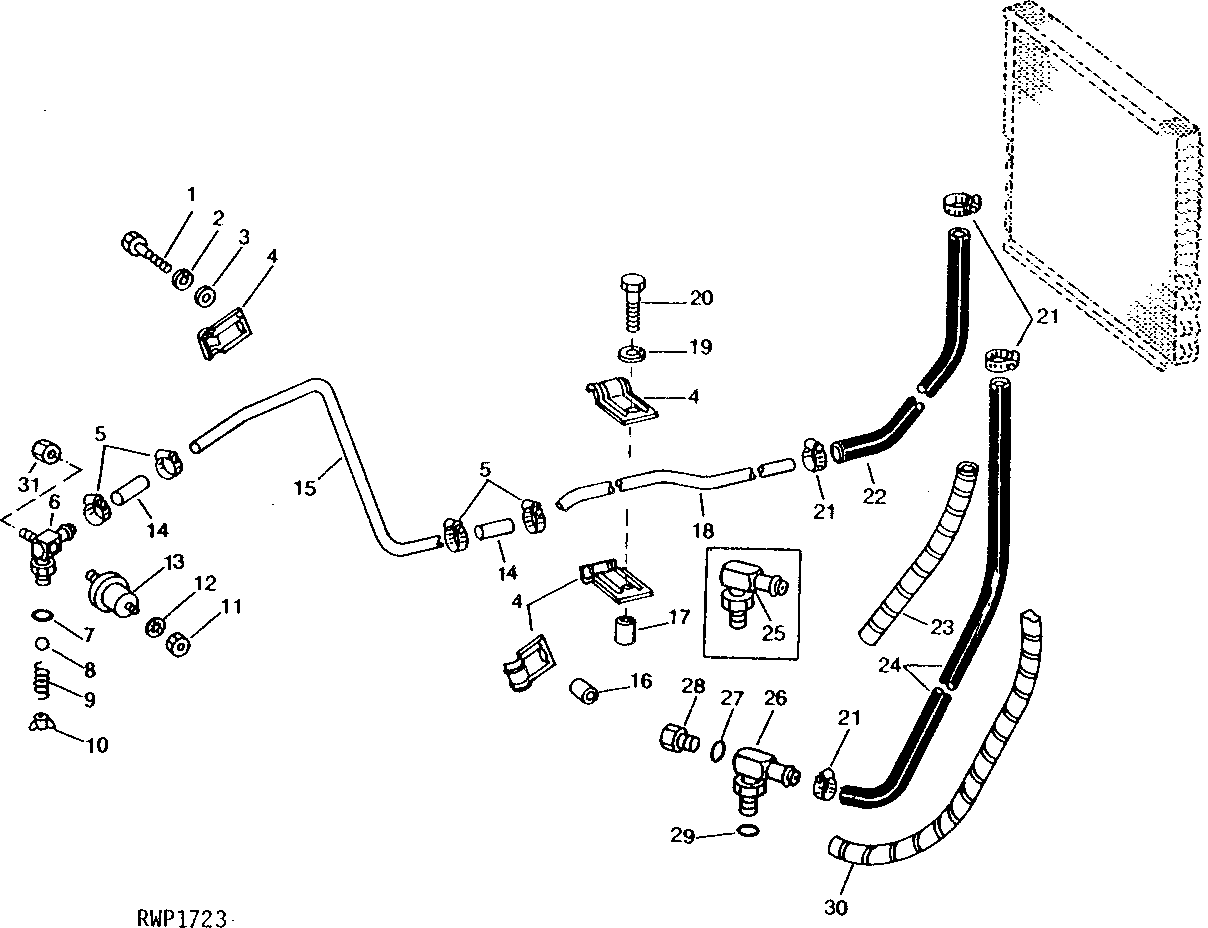

HYDRAULIC OIL COOLER RETURN TUBES AND HOSES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2023	1	CAP SCREW	3/8" X 3-1/4"
2	12H304	1	Lock Washer	3/8"
3	24M7096	1	Washer	10.500 X 18 X 1.600 mm
4	R51655	4	Half Clamp	-
5	AR21839	4	Clamp	(SUB TY22467)
6	AR97622	1	Fitting	90°, (ALSO ORDER R31736) (SUB FOR AR85405)
7	F3171R	1	O-Ring	-
8	R1818R	1	Ball	19MM (3/4"), (SUB N105745)
9	F3221R	1	SPRING	-
10	R53045	1	RETAINER	-
11	14H631	1	Nut	0.190"
12	12M7060	1	Washer	5.300 mm
13	RE15583	1	Engine Oil Pressure Sender	PRESSURE GAUGE (SUB FOR AR58234)
14	DZ120800	2	Hose	64MM (2-1/2"), OCV Inlet MAKE FROM TY22563; SUB FOR R26905
15	R66965	1	Oil Line	-
16	28H207	1	Bushing	0.493" X 0.675" X 2-3/8", 3/8" X 2-3/8"
17	28H1527	1	Spacer	0.493" X 0.675" X 1-3/8", 3/8" X 3/8"
18	R66964	1	Oil Tube	-
19	12H304	1	Lock Washer	3/8"
20	19H3175	1	Cap Screw	3/8" X 3-5/8", HS, SAE 8
21	AR21839	4	Clamp	(SUB TY22467)
22	-	1	Part 22	19MM X 1143MM (3/4" X 45"), (MAKE FROM TY22563)
23	R55144	1	Hose Guard	-
24	R61971	1	Hose	-
25	AR52206	1	Elbow Fitting	(SUB FOR RE11884)
26	AR87537	1	Hose Fitting	(SUB AR52206)
27	R26286	1	O-Ring	-
28	R27094	1	Drain Plug	-
29	R26906	1	O-Ring	-
30	R61972	2	Guard	-
31	R31736	1	Fitting	-

HYDRAULIC OIL COOLER RETURN TUBES AND HOSES
