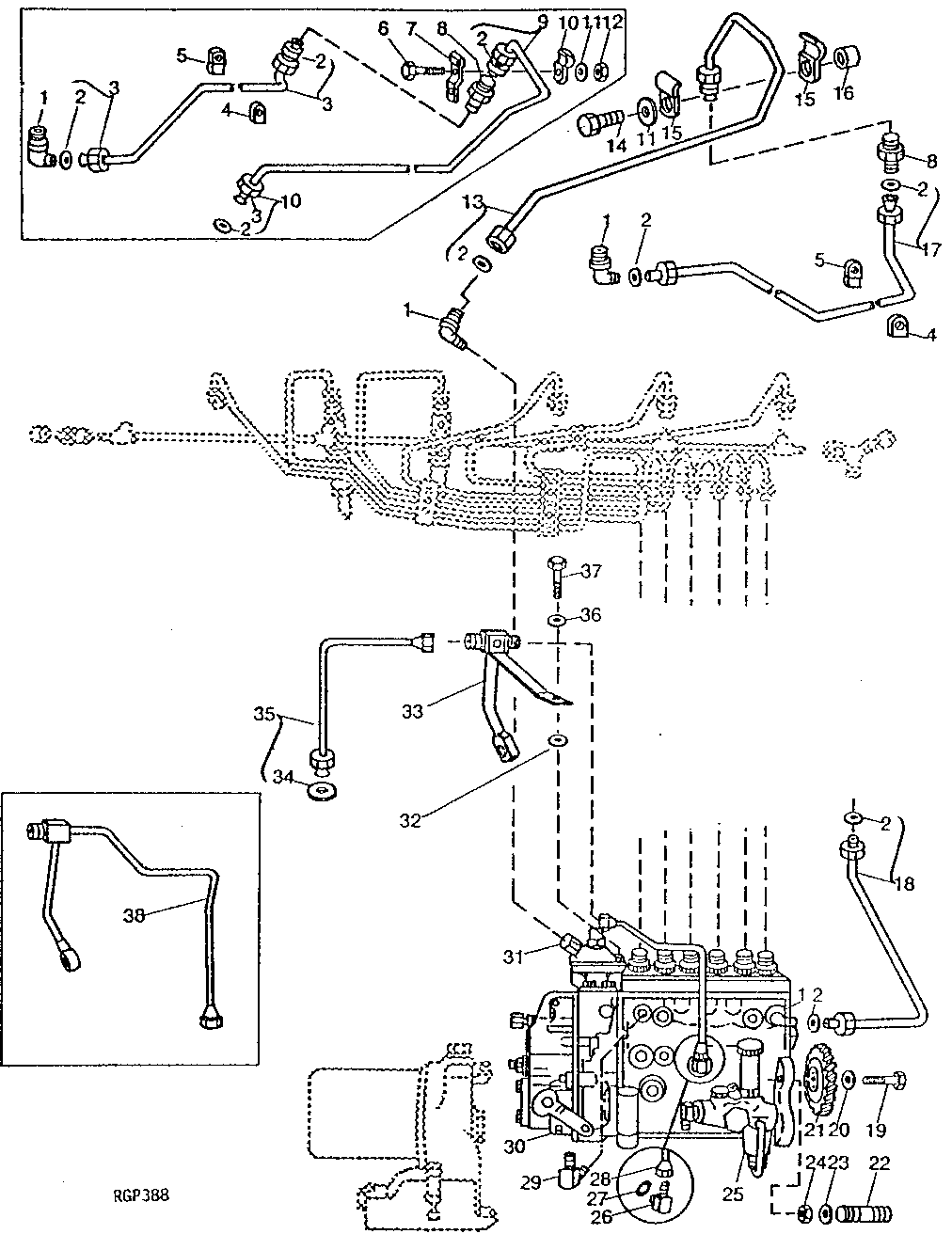

FUEL INJECTION PUMP WITH CONTROL AND LUBE LINES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R67364	3	Elbow Fitting	90°
2	R51936	10	Sealing Washer	(SUB FOR R63603)
3	AR87567	1	Fuel Line	-
4	R27256	1	STRAP	-
5	R27528	1	CLAMP	-
6	19H1813	1	CAP SCREW	5/16" X 5/8"
7	R66181	1	Plate	-
8	R67271	1	Union Fitting	-
9	AR87568	1	Fuel Line	-
10	R66180	1	HALF CLAMP	-
11	12H303	1	Lock Washer	5/16"
12	14H785	1	Nut	5/16"
13	AR88280	1	Fuel Line	(SUB RE46111 AND R63604)
13	RE46111	1	Fuel Line	(ALSO ORDER R63604)
14	19H1849	1	Cap Screw	5/16" X 1-1/4", (SUB FOR R26287, APPL)
15	R31654	2	CLAMP	-
16	R55599	1	Sleeve	-
17	AR88281	1	FUEL LINE	-
18	AR88497	1	Fuel Line	-
19	19H3336	4	Screw	3/8" X 7/8"
20	R63845	4	Washer	(SUB FOR R47230 OR R69536, APPL)
21	R67380	1	Gear	(SUB FOR AR87699, APPL)
22	R114130	4	Stud	(SUB FOR R55396, APPL)
23	M72490	1	Washer	(SUB FOR R42729, APPL)
24	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL)
25	-	1	Part 26	(SUB AR89955)
26	AR26746	1	Elbow Fitting	90°
27	R79060	1	O-Ring	(SUB FOR R26287, APPL)
28	AR94182	1	Line	-
29	U45538	1	ELBOW FITTING	90°, (USE WITH AR94969)
30	SE500113	1	Fuel Injection Pump Reman	(CALL 1-888-697-3626 FOR ORDERING DETAILS) (REMAN FOR AR97433)
30	SE500453	1	Fuel Injection Pump Reman	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.) (REMAN FOR AR88917)
30	SE500114	1	Fuel Injection Pump Reman	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.) (REMAN FOR AR98258)
30	AR88917	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.) (NIPPONDENSO) (SUB SE500453)
30	AR97433	1	Fuel Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.) (ROBERT BOSCH) (PES6TP110A720RS361) (SUB FOR AR98258) (SUB SE500113)
30	SE500112	1	Fuel Injection Pump Reman	(CALL 1-888-697-3626 FOR ORDERING DETAILS) (REMAN FOR AR88916)
30	AR88916	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.) (ROBERT BOSCH) (SUB SE500112)
31	-	1	Part 38	-
32	R54884	1	Washer	-
33	AR94339	1	Tee Fitting	-
34	R51936	2	Sealing Washer	-
35	AR89354	1	Fuel Line	-
36	24M7105	1	Washer	6 X 12 X 1.600 mm
37	19M7077	1	Cap Screw	M6 X 20
38	AR87691	1	Line	(SUB AR94182, AR94339, R54884, 19M7077 AND 24M7105)

FUEL INJECTION PUMP WITH CONTROL AND LUBE LINES
