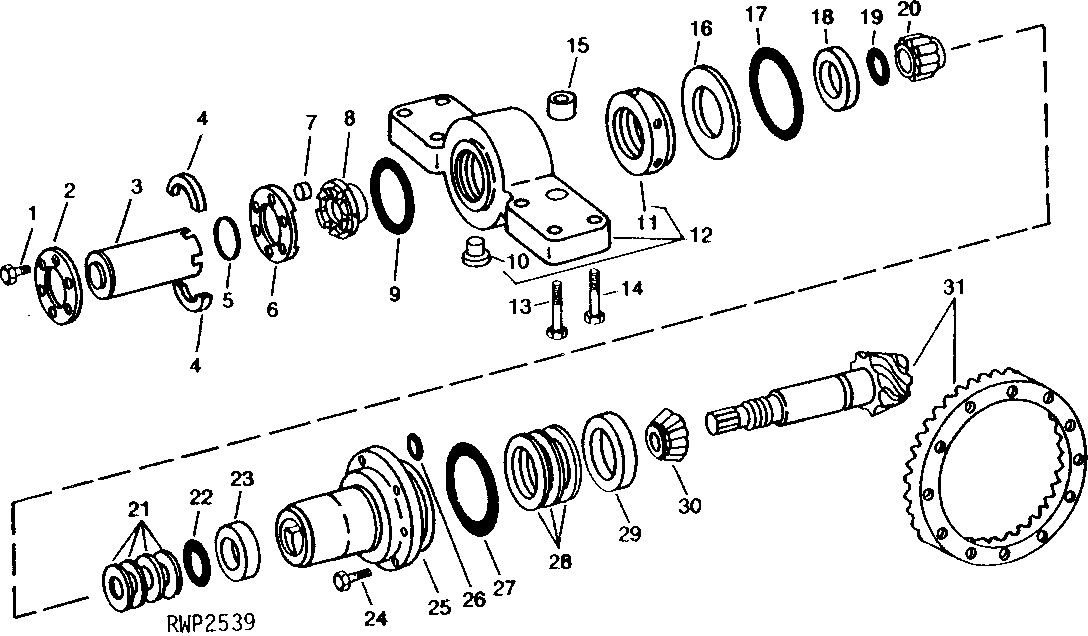

Front Differential Drive And Support

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1800	6	Cap Screw	3/8" X 1-1/2"
2	R62784	1	Retainer	-
3	R57251	1	Splined Coupling	-
4	R62785	2	Washer	-
5	U11017	1	O-Ring	-
6	R62783	1	Retainer	-
7	T11234	6	Lock Nut	-
8	R57051	1	Nut	-
9	R68543	1	O-Ring	-
10	R68717	1	Pressure Relief Valve	-
11	R78266	1	Bushing	SUB FOR R58696
12	AR89741	1	Support	MARKEDR68633; SUB AR103874 AND (4) 19H1782
12	15H558	1	Pipe Plug	1/8"
13	19H2090	2	CAP SCREW	7/8" X 3-1/2"
13	19H2693	2	Cap Screw	7/8" X 4-1/4"
14	19H2113	4	Cap Screw	3/4" X 3-1/4"
15	T30008	2	Bushing	-
16	R37439	1	WASHER	-
17	R68544	1	O-Ring	-
18	R36423	1	Seal	-
19	B3690R	1	O-Ring	-
20	JD9068	1	Bearing Cone	-
21	R58255	1	Shim	0.18MM (.007")
21	R58256	1	Shim	0.25MM (.010")
21	R58257	1	Shim	0.31MM (.012")
21	R58258	1	Shim	0.38MM (.015")
22	R58479	1	Washer	-
23	JD8255	1	Bearing Cup	-
24	R46162	6	SCREW	-
25	R64005	1	Bearing Housing W/O Bearing	-
26	R26149	1	PACKING	-
27	R27796	1	O-Ring	-
28	R35365	1	Shim	0.08MM (.003")
28	R35366	1	Shim	0.13MM (.005")
28	R35367	1	Shim	0.25MM (.010")
29	JD8280	1	Bearing Cup	SUB FOR R61921
30	JD10377	1	Bearing Cone	SUB FOR AR77078
31	AR99193	1	Gear	MARKED R51973 AND R57250; SUB FOR AR71695; MATCHED SET; ORDER COMPONENTS
31	AR86376	1	Gear	MARKED R62969 AND R62970; MATCHED SET; SUB AR77724, (2) R35365, R58255, R58256, R58257 AND R58258
31	AR68591	1	Gear	INCLUDES R51973 AND R57250

Front Differential Drive And Support
