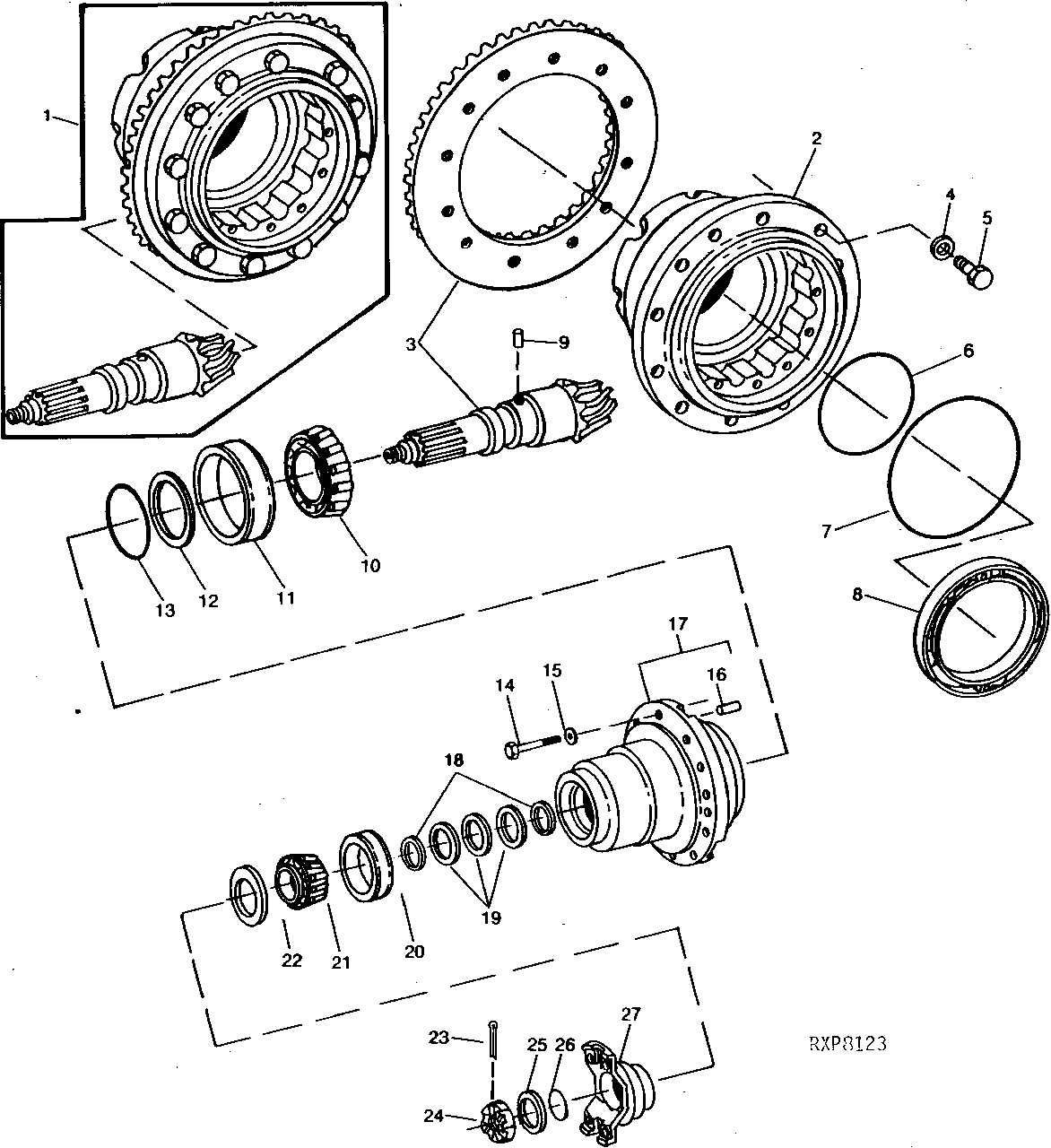

SPIRAL BEVEL GEAR, SHAFT, QUILL AND YOKE [01B17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR87473	1	HOUSING	(A) (HOUSING MARKED R63162) (SHAFT MARKED R68202) (GEAR MARKED R63164) (REAR STANDARD) (SUB AR97250 AND AR91399)
1	AR90000	1	HOUSING	(A) (HOUSING MARKED R63162) (SHAFT, MARKED R68203, (GEAR MARKED R63160) (FRONT STANDARD)
1	AR97251	1	HOUSING	(HOUSING MARKED R67044) (SHAFT MARKED R73147) (GEAR MARKED R73145) (FRONT DIFFERENTIAL LOCK)
1	AR87472	1	HOUSING	(B) (HOUSING MARKED R67044) (SHAFT MARKED R68203) (GEAR MARKED R63160) (FRONT DIFFERENTIAL LOCK) (SUB AR97251)
1	AR87472	1	HOUSING	(B) (HOUSING MARKED R67044) (SHAFT MARKED R68203) (GEAR MARKED R63160) (FRONT DIFFERENTIAL LOCK) (SUB AR97251 AND AR91399)
1	AR101125	1	HOUSING	(HOUSING MARKED R63162) (SHAFT MARKED R73148) (GEAR MARKED R73146) (REAR STANDARD) (SUB FOR AR97250) (SUB RE20883 OR AR87164)
1	AR90890	1	HOUSING	(HOUSING MARKED R63162) (SHAFT MARKED R68202) (GEAR MARKED R63164) (REAR STANDARD) (SUB AR97250)
1	AR90890	1	HOUSING	(A) (B) (HOUSING MARKED R63162) (SHAFT MARKED R68202) (GEAR MARKED R63164) (REAR STANDARD) (SUB AR97250 AND AR91399)
2	AR101131	1	HOUSING	(STANDARD DIFFERENTIAL) (MARKED R63162) (SUB R63162 AND R109006)
2	AR87164	1	HOUSING	(DIFFERENTIAL LOCK) (MARKED R67044)
3	RE20882	1	BEVEL GEAR	FRONT (GEAR MARKED R73145) (SHAFT MARKED R73147) (INCLUDES SHIMS, DOWEL PIN, CAP SCREWS AND WASHERS) (SUB AR97263 AND RE50118)
3	RE20883	1	BEVEL GEAR	REAR (GEAR MARKED R73146) (SHAFT MARKED R73148) (INCLUDES SHIMS, DOWEL PIN, CAP SCREWS AND WASHERS) (SUB AR97264 AND RE50118)
4	R73290	12	Washer	(SUB FOR T497T)
5	19H2672	12	Cap Screw	5/8" X 2"
6	R67046	1	Packing	-
7	R67047	1	Packing	-
8	R67045	1	Piston	-
9	R40336	1	DOWEL PIN	-
10	JD9612	1	BEARING CONE	-
11	JD9166	1	BEARING CUP	-
12	R63229	1	SHIM	0.46MM (.018")
12	R63227	1	SHIM	0.08MM (.003")
12	R63228	1	SHIM	0.13MM (.005")
13	R63226	1	Ring	-
14	19H2599	12	Cap Screw	5/8" X 2-1/2"
15	R73290	12	Washer	(SUB FOR T497T)
16	R26616	1	DOWEL PIN	-
17	AR87476	1	BEARING HOUSING W/O BEARING	(MARKED R66310)
18	R75639	2	Washer	(SUB FOR R44835)
19	R47596	1	Shim	0.38MM (.015")
19	R47595	1	Shim	0.30MM (.012")
19	R47594	1	Shim	0.25MM (.010")
19	R47593	1	Shim	0.18MM (.007")
20	JD8264	1	Bearing Cup	-
21	JD8970	1	Bearing Cone	-
22	AR79581	1	Seal	-
23	11M7085	1	Cotter Pin	6.300 X 63 MM
24	R47598	1	Nut	-
25	R48629	1	Washer	-
25	R48630	1	Washer	-
25	R48631	1	Washer	-
26	R44181	1	O-Ring	-
27	R64301	1	UNIVERSAL JOINT YOKE	(SUB AR94928)
27	AR94928	1	YOKE	WITH SLINGER, (MARKED R72163)
