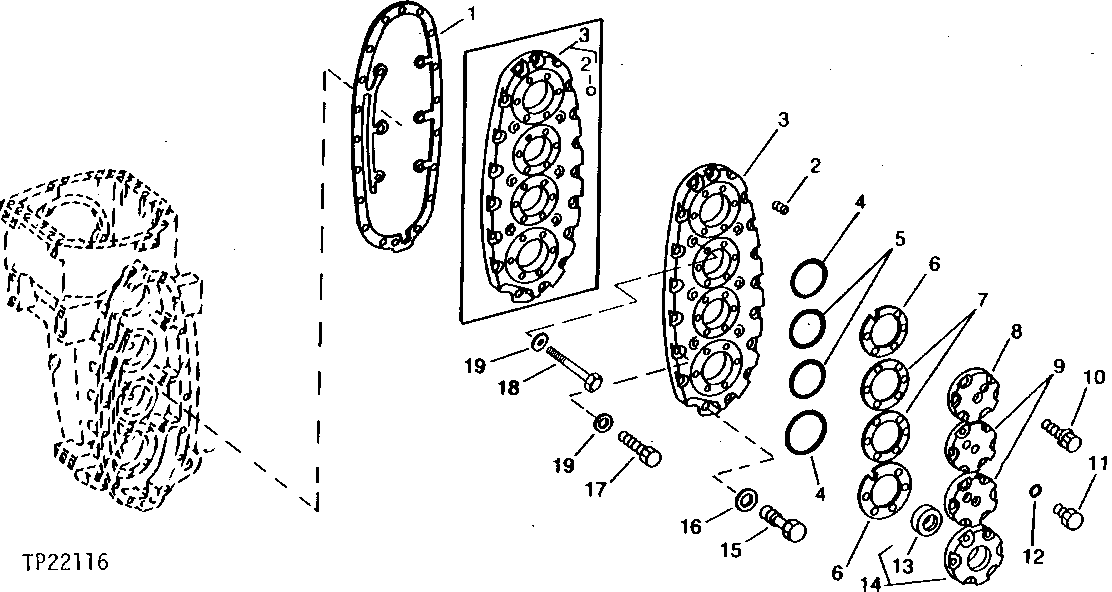

REDUCTION GEAR COVER AND BEARING RETAINERS [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R99295	1	GASKET	(SUB FOR T53689)
2	R26552	1	Ball	(SUB 15H558, WITH T53680)
2	15H558	1	Pipe Plug	1/8", (USE WITH T53680)
3	AT47904	1	COVER	(MARKED T53680) WITH BALL, (SUB T53608 AND 15H558)
3	T53680	1	COVER	-
4	T12275	2	O-Ring	-
5	F2573R	2	O-Ring	-
6	T49602	1	SHIM	.08 MM (.003")
6	T49603	1	SHIM	.13 MM (.005")
6	T49604	1	SHIM	.25 MM (.010")
7	T67782	1	SHIM	.25 MM (.010") (SUB FOR T53693)
7	T67781	1	SHIM	.13 MM (.005") (SUB FOR T53692)
7	T67780	1	SHIM	.08 MM (.003") (SUB FOR T53691)
8	T66659	1	BEARING HOUSING W/O BEARING	(SUB FOR T50413)
9	T66660	2	BEARING HOUSING W/O BEARING	(SUB FOR T53694)
10	R46567	24	Screw	-
11	R27218	3	Fitting Plug	-
12	R26448	3	O-Ring	-
13	AR103266	1	SEAL	(SUB FOR R31440, THIS APPLICATION)
14	AT63640	1	RETAINER	(SUB FOR AT47905)
15	T58508	1	FITTING PLUG	-
16	A4827R	1	Washer	-
17	T53690	6	CAP SCREW	-
18	19H2735	17	Cap Screw	1/2" X 2", (SUB FOR T49647)
19	R32214	23	Washer	-

REDUCTION GEAR COVER AND BEARING RETAINERS [01C23]
