Открытый узел

PLATFORM WITH FRONT PANEL [03I03]

PLATFORM WITH FRONT PANEL [03I03]

PLATFORM WITH FRONT PANEL [03I03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

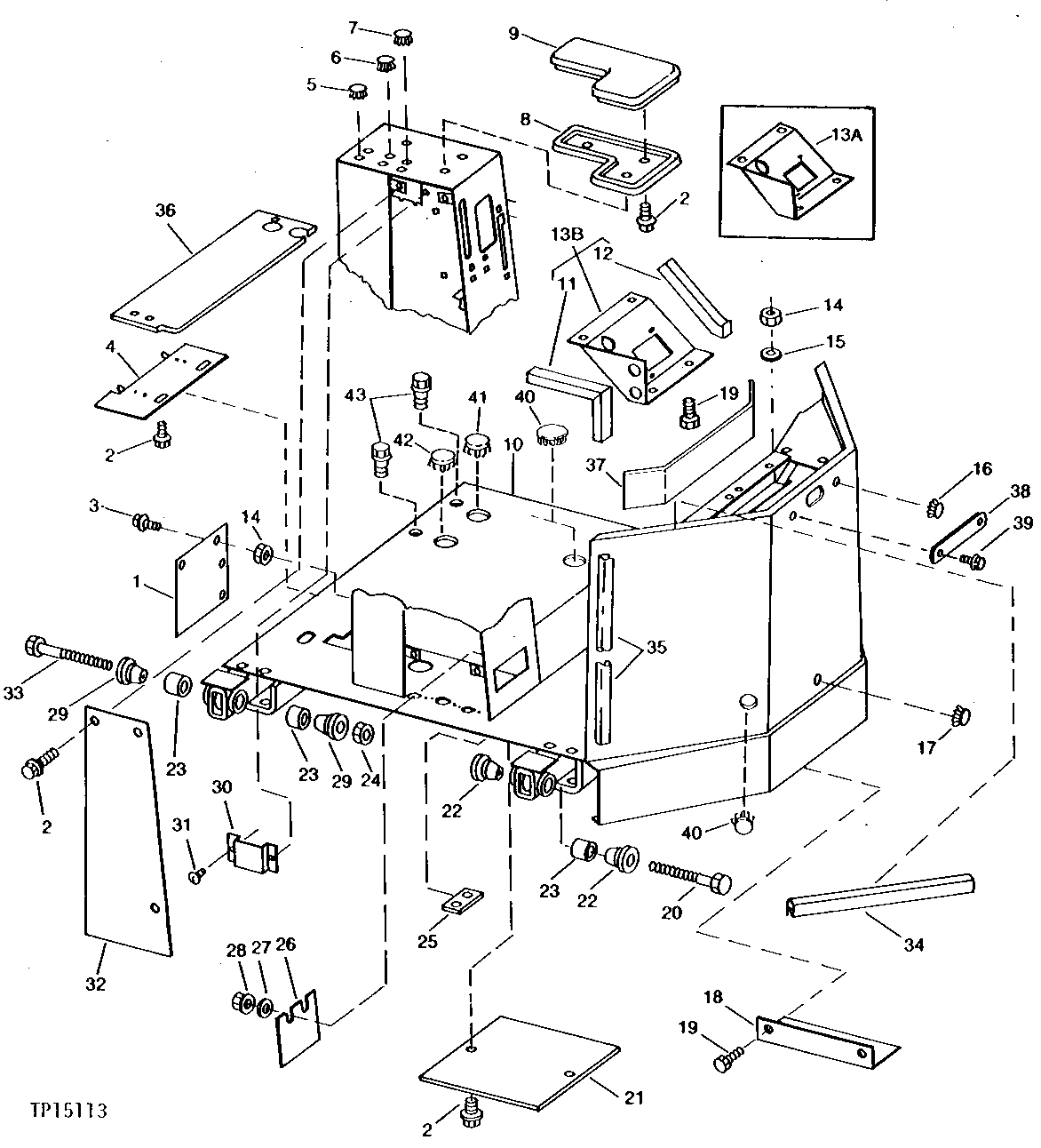

PLATFORM WITH FRONT PANEL [03I03]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T58879	1	COVER	(WITHOUT CAB OR ROPS)
2	T58694	10	Screw	-
3	37H51	4	Screw	1/4" X 1/2"
4	AT56748	1	COVER	(WITHOUT AIR CONDITIONING)
5	R28473	1	Plug	(WITHOUT LIFT HEIGHT CONTROL)
6	T16738	1	PLUG	(WITHOUT AIR CONDITIONER) (SUB FOR H80675)
7	H91792	4	PLUG	-
8	T60465	1	COVER	-
9	AT57903	1	ARMREST	-
10	AT85008	1	PLATFORM	-
10	AT80298	1	PLATFORM	(SUB AT85008)
10	AT63541	1	PLATFORM	(SUB FOR AT56747) (SUB AT80298 AND AT80347)
11	T58092	1	SEAL	PANEL END
12	T58093	1	ISOLATOR	-
13	AT55866	1	PANEL	(SUB AT63756)
14	14H786	2	Nut	1/4"
15	24H1287	2	Washer	9/32" X 5/8" X 0.065"
16	R32239	2	Plug	-
17	M2047T	1	PLUG	-
18	AT55868	1	BRACKET	-
19	19H1648	6	Cap Screw	3/8" X 3/4"
20	19H3527	2	Cap Screw	1" X 7"
21	T59091	1	STRAP	(WITHOUT AIR CONDITIONING)
22	AT56558	4	ISOLATOR	-
23	T58090	6	BUSHING	-
24	K40018	2	Lock Nut	(SUB FOR T44249, THIS APPLICATION)
25	R26789	1	STRAP	(USE WITHOUT DIFFERENTIAL LOCK)
26	T58878	1	STRAP	(WITHOUT CAB OR ROPS)
27	24H1219	2	Washer	7/16" X 1" X 0.083"
28	T126701	2	FLANGE NUT	(SUB FOR T56296)
29	AT56558	4	ISOLATOR	(SUB FOR AT56559)
30	AT56560	1	COVER	-
31	19H1227	2	Cap Screw	1/4" X 1/2"
32	T66940	1	COVER	(SUB FOR T58884)
33	08H4428	2	CAP SCREW	1" X 7-1/2"
34	-	1	Part 38	1 371 MM LONG (54") (MAKE FROM T58056) (WITHOUT CAB OR ROPS)
35	-	1	Part 39	1 156 MM LONG (46") (MAKE FROM T61861)
36	T59072	1	INSULATOR	(HEATER)
37	T57974	1	PAD	FRONT PANEL, (SUB T80018)
37	T80018	1	FOAM PAD	FRONT PANEL
37	T57975	1	FOAM PAD	FRONT PANEL
38	T66949	1	STRAP	-
39	T58694	2	Screw	FLANGED HEAD (5/16" X 5/8")
40	T14500	2	PLUG	-
41	R32239	1	Plug	(WITHOUT AIR CONDITIONING)
42	R36590	1	PLUG	(WITHOUT AIR CONDITIONING)
43	T58694	2	Screw	(WITHOUT AIR CONDITIONING)
13A	AT63756	1	PANEL	RIGHT WITH SEALS, (SUB AT68511)
13B	AT68511	1	PANEL	RIGHT WITH SEALS
