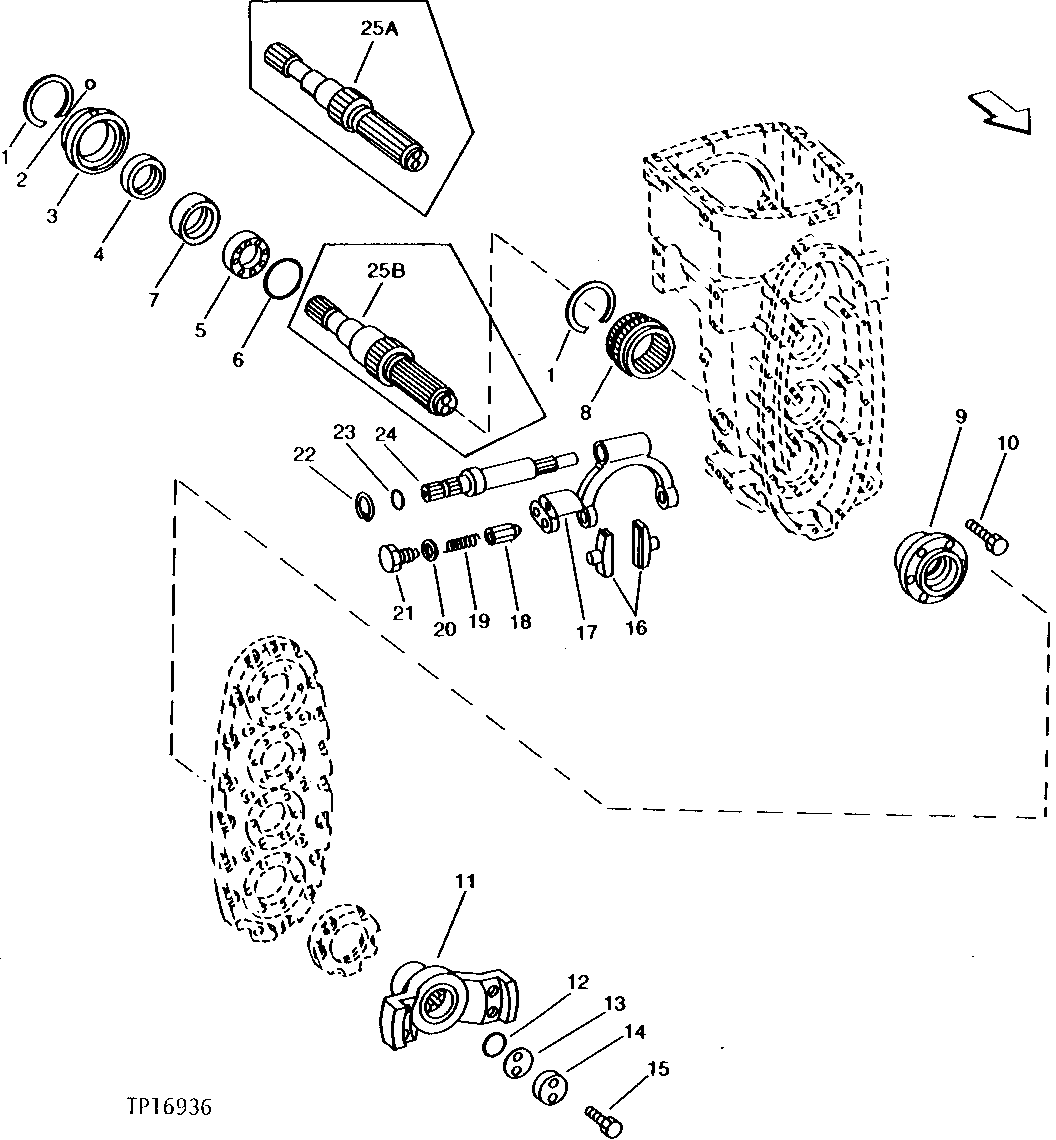

OUTPUT SHAFT AND PARK SHIFTER SHAFT [01D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F2622R	2	SNAP RING	-
2	A4742R	1	Ball	(SUB FOR H871R, THIS APPLICATION)
3	R83765	1	RETAINER	(SUB FOR T49677 AND T70996) (ALSO ORDER RE23024)
4	RE23024	1	SEAL	(SUB FOR AT47901) (ALSO ORDER T70996) (SUB FOR AT67909)
5	JD9320	1	Ball Bearing	-
6	C11884	1	O-Ring	-
7	R80038	1	SLEEVE	(USE WITH R80039)
8	T49670	1	LOCKING COLLAR	-
9	T49655	1	BEARING HOUSING W/O BEARING	-
10	R52634	4	Cap Screw	(SUB FOR R41049)
11	R64301	1	UNIVERSAL JOINT YOKE	(SUB AR94928, THIS APPLICATION)
11	AR94928	1	YOKE	-
12	R44181	1	O-Ring	-
13	T61483	1	SHIM	.30 MM (.012")
13	T61482	1	SHIM	.18 MM (.007")
14	T57562	1	WASHER	-
15	19H2898	2	Cap Screw	1/2" X 1-1/4"
16	A4570R	2	SHOE	-
17	T55504	1	YOKE	-
18	T53688	1	PAWL	-
19	R26203	1	SPRING	-
20	R43424	1	WASHER	-
21	-	1	Part 23	( R43427 NO LONGER AVAILABLE)
22	R54114	1	Snap Ring	-
23	T11220	1	O-Ring	-
23	AN190356	1	SEAL	(USE AS REQUIRED)
24	T55505	1	SHAFT	(13 TEETH)
25A	T55503	1	SHAFT	(36 AND 25 TEETH) (SUB R80039) (ALSO ORDER R80038)
25B	R80039	1	SHAFT	-

OUTPUT SHAFT AND PARK SHIFTER SHAFT [01D02]
