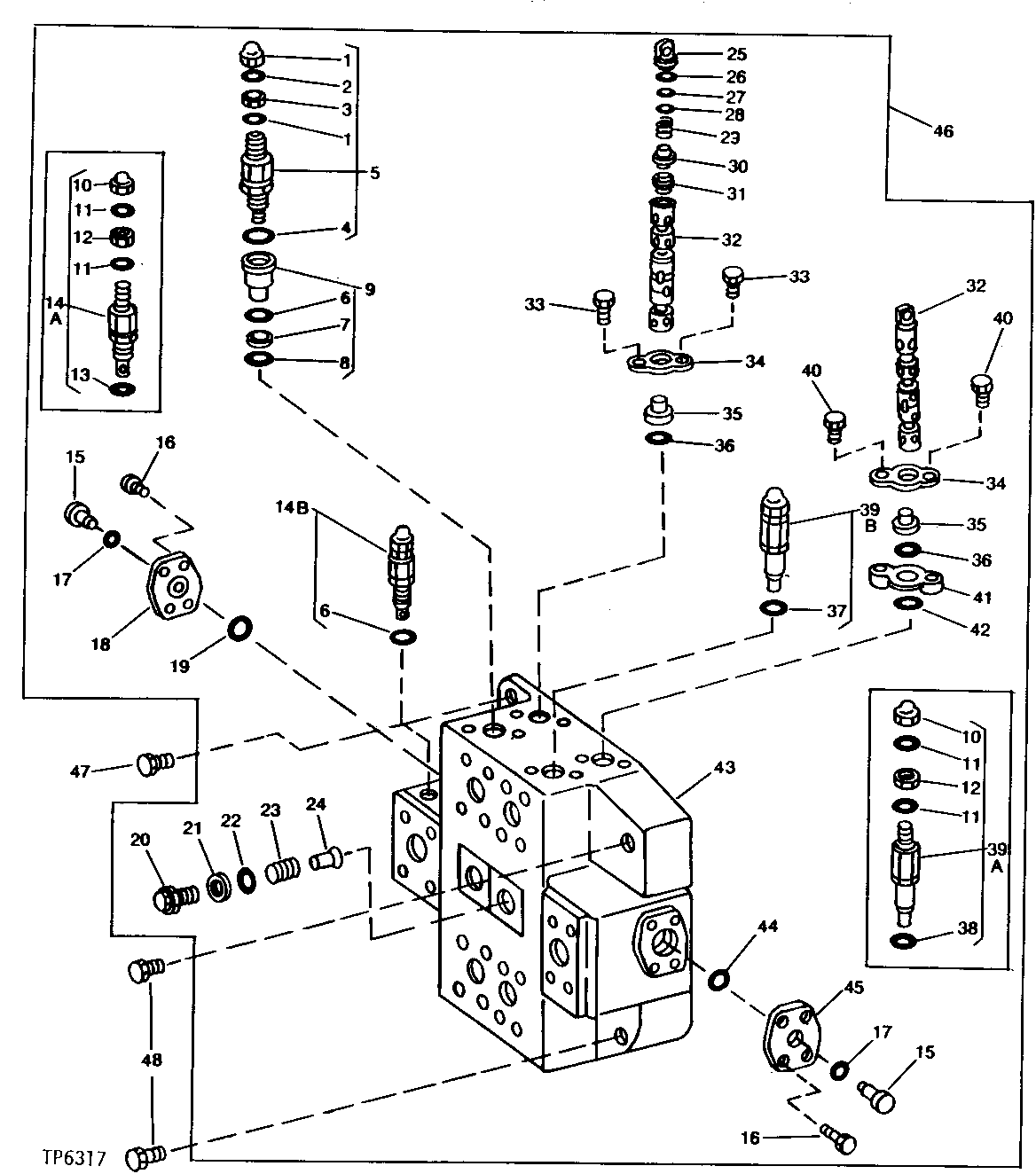

LOADER CONTROL VALVE (TWO-SPOOL UPPER SECTION) [04D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T67425	1	Nut	-
2	H63283	2	O-Ring	-
3	T67424	1	Nut	-
4	T72570	1	O-Ring	-
5	AT69752	1	RELIEF VALVE	-
6	T72573	2	O-Ring	-
7	T72572	1	BACK-UP RING	-
8	T72571	1	O-RING	-
9	AT69751	1	ADAPTER FITTING	RELIEF VALVE
10	T67425	2	Nut	-
11	H63283	4	O-Ring	-
12	T67424	2	Nut	-
13	T72570	1	O-Ring	-
15	R51031	2	Fitting	-
16	L25611	8	SCREW	(SUB FOR T62291)
17	R28782	2	O-Ring	-
18	T62300	1	FLANGE FITTING	-
19	T34248	1	O-Ring	-
20	T60350	2	FITTING	-
21	T60347	2	BACK-UP RING	-
22	R30319	2	O-Ring	-
23	T60346	2	SPRING	-
24	T60349	2	POPPET	-
25	T62309	1	END	-
26	U12547	1	O-Ring	-
27	T62302	1	SOLID SHIM	.038 MM (.015")
28	T62301	1	SOLID SHIM	.041 MM (.018")
29	T62296	1	SPRING	-
30	T62295	1	RETAINER	-
31	T62294	1	POPPET	-
32	-	1	Part 33	(SUB AT70856)
32	-	1	Part 34	(SUB AT70856)
33	19H1895	2	CAP SCREW	1/2" X 3/4"
34	T60353	2	FLANGE	-
35	T60354	2	SEAL	-
36	T71981	2	O-RING	(SUB FOR T19687, THIS APPLICATION)
37	U13639	1	O-Ring	-
38	U13639	1	O-Ring	-
40	19H2933	2	Screw	1/2" X 2-3/4", SOCKET HEAD
41	T62293	1	SPACER	-
42	P50631	1	O-Ring	-
43	-	1	Part 46	(SUB AT70856)
43	-	1	Part 47	(SUB AT70856)
44	F1870R	1	O-Ring	-
45	T62290	1	FLANGE FITTING	-
46	AT69749	1	CONTROL VALVE	2-SPOOL COMPLETE, (SUB AT70856)
46	AT70856	1	SPOOL VALVE	2-SPOOL COMPLETE
47	19H1471	1	Cap Screw	3/4" X 3-1/2"
48	19H2001	2	Cap Screw	3/4" X 5-1/2"
14A	AT69044	1	RELIEF VALVE	(SYSTEM) (SUB FOR AT64250)
14B	AT70857	1	PRESSURE RELIEF VALVE	(SYSTEM)
39A	AT69750	1	RELIEF VALVE	(CIRCUIT) (SUB AT70858)
39B	-	1	Part 42	(CIRCUIT) ( AT70858 NO LONGER AVAILABLE)

LOADER CONTROL VALVE (TWO-SPOOL UPPER SECTION) [04D01]
