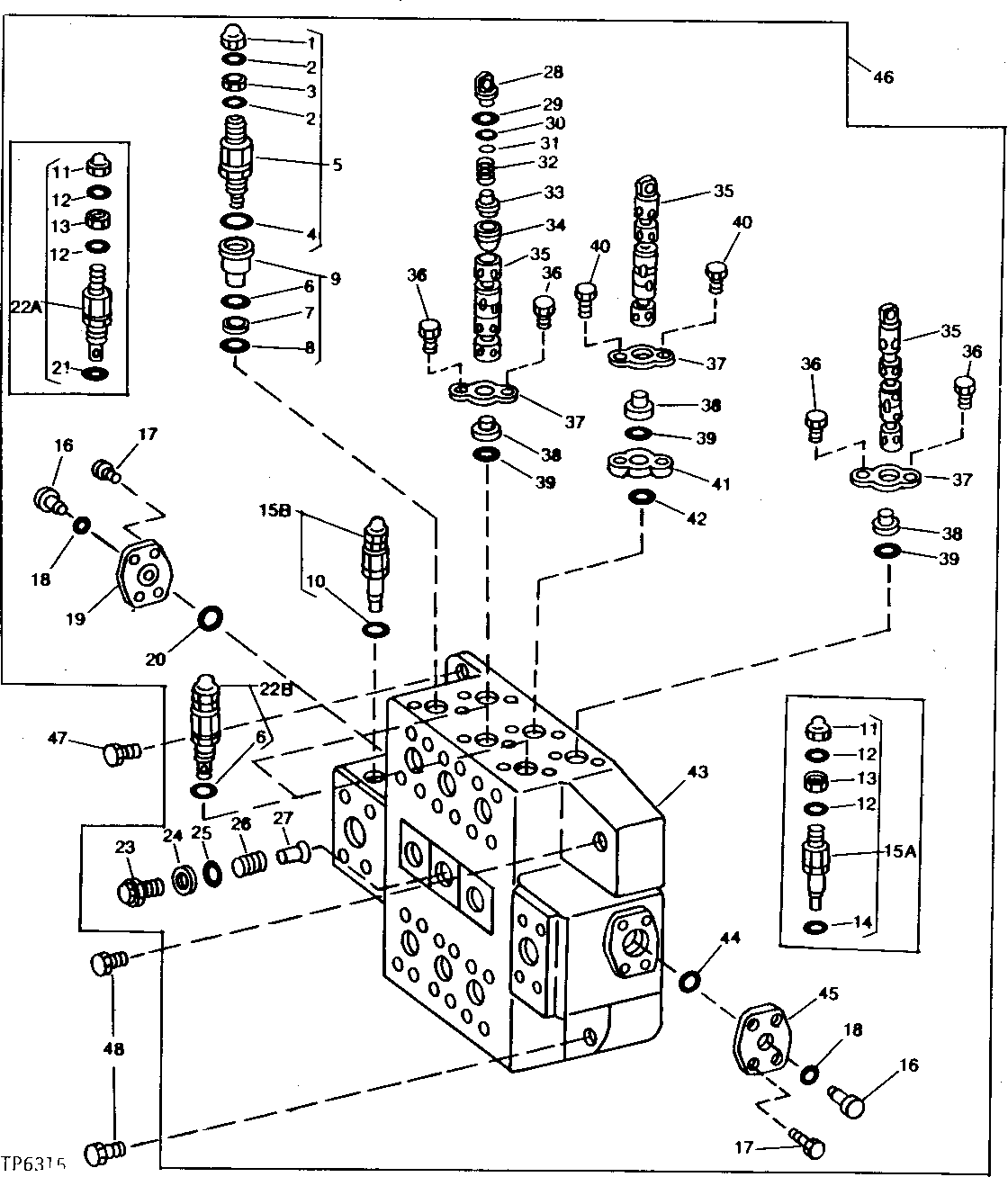

LOADER CONTROL VALVE (THREE-SPOOL UPPER SECTION) [04C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T67425	1	Nut	-
2	H63283	2	O-Ring	-
3	T67424	1	Nut	-
4	T72570	1	O-Ring	-
5	AT69752	1	RELIEF VALVE	-
6	T72573	2	O-Ring	-
7	T72572	1	BACK-UP RING	-
8	T72571	1	O-RING	-
9	AT69751	1	ADAPTER FITTING	RELIEF VALVE
10	U13639	1	O-Ring	-
11	T67425	2	Nut	-
12	H63283	4	O-Ring	-
13	T67424	2	Nut	-
14	U13639	1	O-Ring	-
16	R51031	2	Fitting	-
17	L25611	8	SCREW	(SUB FOR T62291)
18	R28782	2	O-Ring	-
19	T62300	1	FLANGE FITTING	-
20	T34248	1	O-Ring	-
21	T72573	1	O-Ring	-
23	T60350	3	FITTING	-
24	T60347	3	BACK-UP RING	-
25	R30319	3	O-Ring	-
26	T60346	3	SPRING	-
27	T60349	3	POPPET	-
28	T62309	1	END	-
29	U12547	1	O-Ring	-
30	T62302	1	SOLID SHIM	.038 MM (.015")
31	T62301	1	SOLID SHIM	.041 MM (.018")
32	T62296	1	SPRING	-
33	T62295	1	RETAINER	-
34	T62294	1	POPPET	-
35	-	1	Part 38	(SUB AT70859)
35	-	1	Part 37	(SUB AT70859)
36	19H1895	4	CAP SCREW	1/2" X 3/4"
37	T60353	3	FLANGE	-
38	T60354	3	SEAL	-
39	T71981	3	O-RING	(SUB FOR T19687, THIS APPLICATION)
40	19H2933	2	Screw	1/2" X 2-3/4"
41	T62293	1	SPACER	-
42	P50631	1	O-Ring	-
43	-	1	Part 46	(SUB AT70859)
43	-	1	Part 47	(SUB AT70859)
44	F1870R	1	O-Ring	-
45	T62290	1	FLANGE FITTING	-
46	AT69753	1	CONTROL VALVE	3-SPOOL COMPLETE, (SUB AT70859)
46	AT70859	1	CONTROL VALVE	3-SPOOL COMPLETE
47	19H1471	1	Cap Screw	3/4" X 3-1/2"
48	19H2001	2	Cap Screw	3/4" X 5-1/2"
15A	AT69044	1	RELIEF VALVE	(SYSTEM) (SUB FOR AT64250)
15B	AT70857	1	PRESSURE RELIEF VALVE	(SYSTEM)
22A	AT69750	2	RELIEF VALVE	(CIRCUIT)
22B	-	2	Part 24	(CIRCUIT) ( AT70858 NO LONGER AVAILABLE)

LOADER CONTROL VALVE (THREE-SPOOL UPPER SECTION) [04C21]
