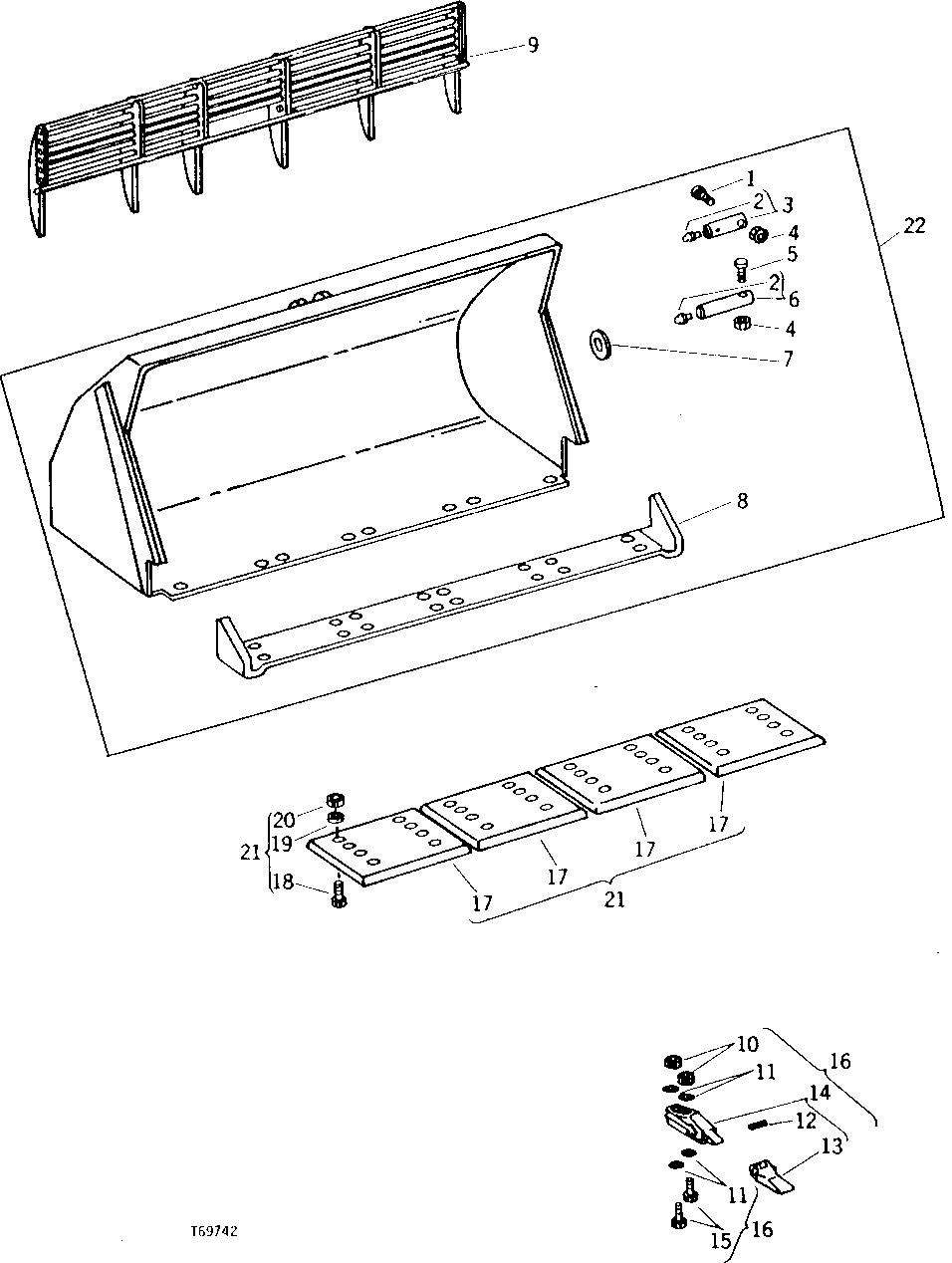

LOADER BUCKETS (SERIAL NO. -506809) [04B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4304	1	Cap Screw	3/4" X 6-1/2", (SUB FOR 08H4247)
2	JD7759	3	Lubrication Fitting	(SUB FOR T57407) STRAIGHT, 1/8"
3	AT55323	1	PIN FASTENER	(BUCKET LINK TO BUCKET) (USE IF AVAILABLE OR ORDER JD7759 AND T57416 PIN)
4	T25879	3	Nut	-
5	19H3307	2	Cap Screw	3/4" X 6"
6	AT55324	2	PIN FASTENER	(BOOM TO BUCKET PIVOT) (USE IF AVAILABLE OR ORDER T162396 AND T57417 PIN)
7	T60753	1	WASHER	-
8	T187708	1	CUTTING EDGE	(SUB FOR T57407) 3.4 M3 (4-1/2" CU. YD.) G.P. (ILLUSTRATED), 3.8 M3 (5 CU. YD.) G.P. AND 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET
8	T57422	1	CUTTING EDGE	L.M., 5.4 M3, (7 CU. YARD) BUCKET
8	T57432	1	BLADE	ROCK, 3.4 M3, (4-1/2 CU. YD) BUCKET
8	T57442	1	CUTTING EDGE	G.P., 2.8 M3, (3-1/2 CU. YD) BUCKET
9	AT55347	1	SPILL SHEET	AUXILIARY
10	U14554	16	LOCK NUT	(SUB FOR T56007) 2.8 M3 (3-1/2 CU. YD.), 3.4 M3 (4-1/2 CU. YD.), 4.2 M3 (5-1/2 CU. YD.) BUCKET
11	T56006	32	Washer	2.8 M3 (3-1/2 CU. YD.), 3.4 M3 (4-1/2 CU. YD.), 4.2 M3 (5-1/2 CU. YD.) BUCKET
12	R136155	8	Groove Pin	-
12	25H1191	8	Groove Pin	1/2" X 4", (SUB FOR T56005) (SUB R136155)
13	-	8	Part 17	( T56004 NO LONGER AVAILABLE)
14	-	8	Part 18	2.8 M3 (3-1/2 CU. YD.) G.P., 3.4 M3 (4-1/2 CU. YD.) G.P., 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET ( AT53816 NO LONGER AVAILABLE, FURNISH COMPONENTS)
14	-	8	Part 19	( T56003 NO LONGER AVAILABLE) (NOT ILLUSTRATED)
15	19H3368	16	Cap Screw	7/8" X 4-1/2", 7/8" X 4-1/2", 2.8 M3 (3-1/2 CU. YD.), 3.4 M3 (4-1/2 CU. YD.), 4.2 M3 (5-1/2 CU. YD.) BUCKET
16	AT53817	1	TOOTH	2.8 M3 (3-1/2 CU. YD.) G.P., 3.4 M3 (4-1/2 CU. YD.) G.P., 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET (CONTAINS (32) T56006, (16) U14554, AND (16) 19H3368)
17	T57933	4	Dura-Max Cutting Edge	3.4 M3 (4-1/2 CU. YD.) G.P., 3.8 M3 (5 CU. YD.) G.P., 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET
18	09H1763	16	Bolt	7/8" X 4", 7/8" X 4", 3.4 M3 (4-1/2 CU. YD.) G.P., 3.8 M3 (5 CU. YD.) G.P., 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET
19	T56006	32	Washer	3.4 M3 (4-1/2 CU. YD.) G.P., 4.2 M3 (5-1/2 3.8 M3 (5 CU. YD.) G.P., CU. YD.) M.H. BUCKET
20	U14554	16	LOCK NUT	(SUB FOR T56007) 3.4 M3 (4-1/2 CU. YD.) G.P., 4.2 M3 (5-1/2 3.8 M3 (5 CU. YD.) G.P., 4.2 M3 (5-1/2 CU. YD.) M.H. BUCKET
21	AT55788	1	CUTTING EDGE	AUXILIARY, 3.4 M3 (4-1/2 CU. YD.) G.P., 4.2 M3, 3.8 H3 (5 CU. YD.) G.P., (5-1/2 CU. YD.) M.H. BUCKET
22	AT56241	1	LOADER BUCKET	GENERAL PURPOSE, 3.5 M3 (4-1/2 CU. YD.), 1 999 MM WIDE (118.1") (SUB AT73851)
22	AT55313	1	LOADER BUCKET	GENERAL PURPOSE, 3.4 M3 (4-1/2 CU. YD.), 2 253 MM WIDE (128")
22	AT61341	1	LOADER BUCKET	GENERAL PURPOSE, 3.8 M3 (5 CU. YD.) (SUB AT73847)
22	AT55316	1	LOADER BUCKET	MATERIALS HANDLING, 4.2 M3 (5-1/2 CU. YD.) (SUB AT73849)
22	AT55315	1	LOADER BUCKET	LIGHT MATERIALS, 5.4 M3 (7 CU. YD.)
