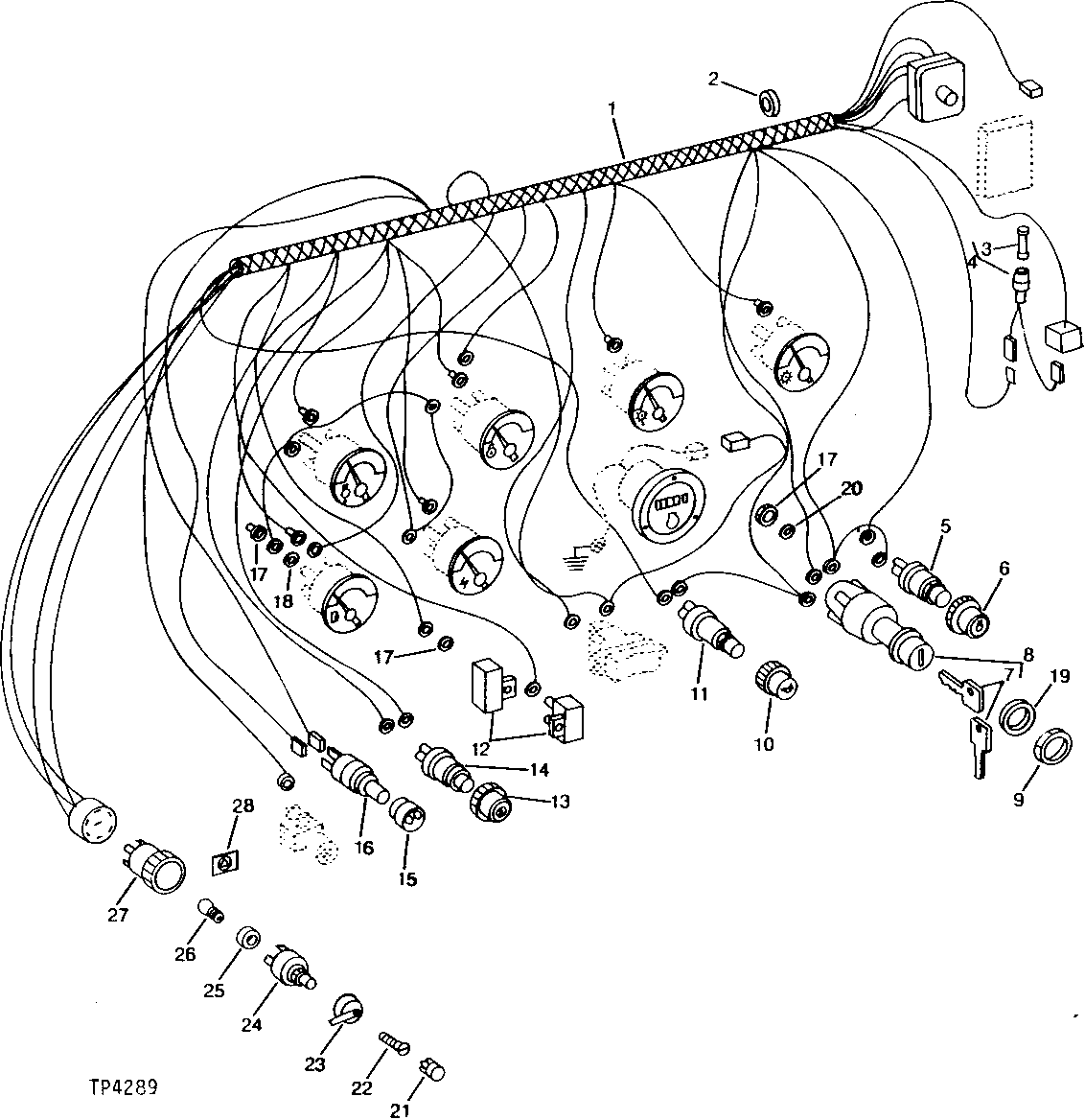

INSTRUMENT PANEL HARNESS WITH SWITCHES (SERIAL NO. 340199- ) [03E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78965	1	WIRING HARNESS	(USE IF AVAILABLE OR ORDER AT78966 HARNESS AND T67894 TERMINAL CONNECTOR)
1	AT69012	1	WIRING HARNESS	(SUB FOR AT64730)
2	R27180	1	Grommet	-
3	AT28061	1	FUSE	5-AMP
4	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427)
4	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
5	AT25258	1	SWITCH	START
6	T58440	1	CAP	(RED)
7	AT195302	1	Key	(SUB FOR AR51481 AND AT145929) (SET OF TWO)
8	AT37390	1	SWITCH	IGNITION
9	R44342	1	Nut	-
10	T55501	1	Cap	(BLACK)
11	AT25258	1	SWITCH	HORN
12	AT42040	2	CIRCUIT BREAKER	-
13	T55585	1	Cap	(YELLOW)
14	AT25258	1	SWITCH	FLUID STARTING AID
15	AT60729	1	KNOB	WASHER-WIPER
16	AT48388	1	SWITCH	WASHER-WIPER
17	14H631	13	Nut	0.190"
18	12H295	10	Lock Washer	0.190"
19	24H1275	1	Washer	1-1/64" X 1-1/2" X 0.075"
20	12H246	3	LOCK WASHER	0.190"
21	H91792	1	PLUG	-
22	21H1372	1	Screw	1/8" X 3/8"
23	R56026	1	Knob	-
24	AT63769	1	SWITCH	DIRECTIONAL
25	24H1652	1	Washer	13/32" X 11/16" X 7/64"
26	TH108548	1	BULB	(SUB FOR T67008)
27	T67007	1	SWITCH	FLASHER EMERGENCY LIGHT
28	T67009	1	DECALS	HAZARD LIGHTS FUSE HOLDER

INSTRUMENT PANEL HARNESS WITH SWITCHES (SERIAL NO. 340199- ) [03E18]
