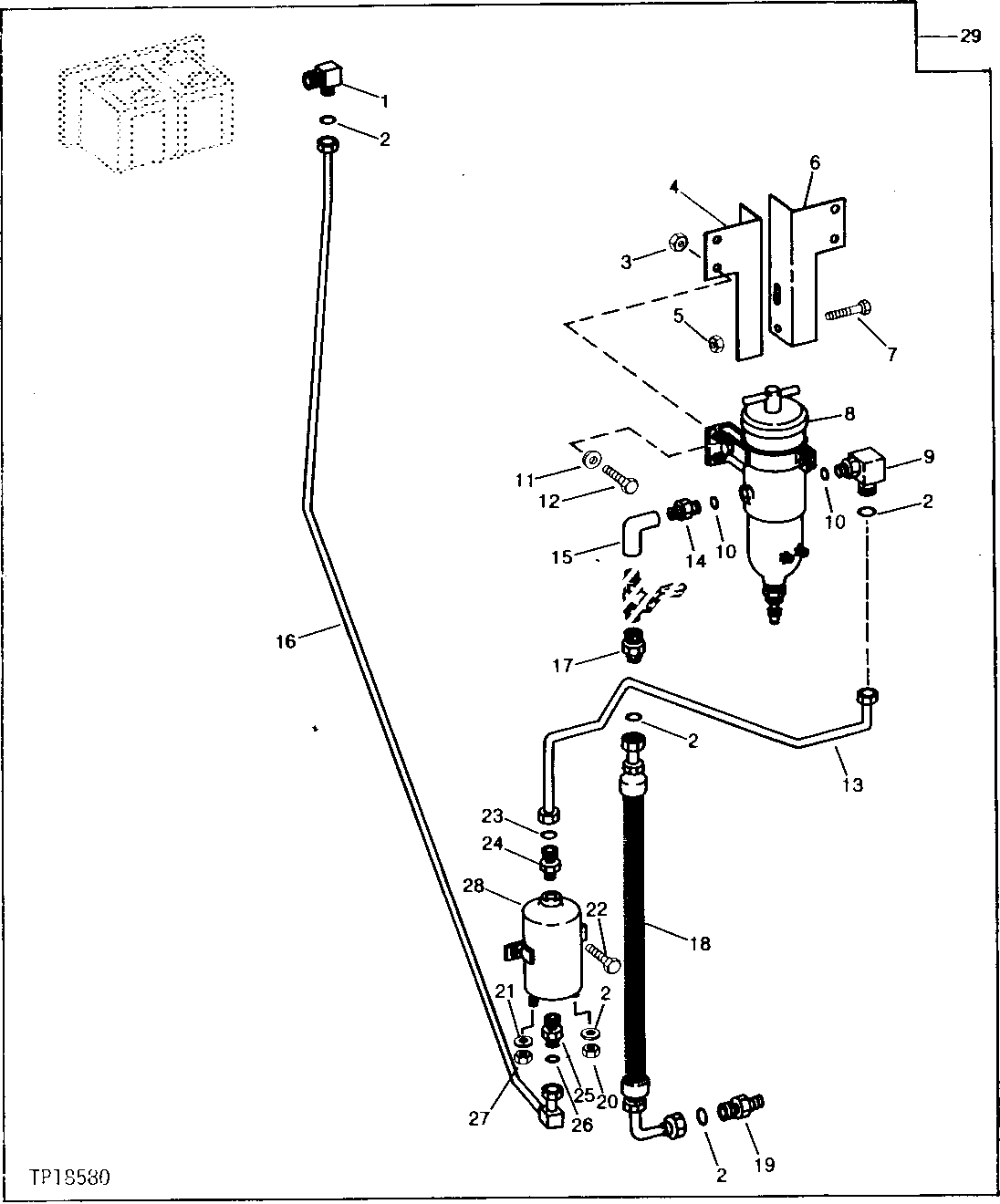

FUEL PUMP AND FILTER KIT (SERIAL NO. 506809- ) [02J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T78644	1	Elbow Fitting	-
2	T77613	4	O-Ring	-
3	14H1076	4	Nut	9.525 MM (3/8") (SUB FOR 14H785, THIS APPLICATION)
4	T78166	1	BRACKET	-
5	14H1076	2	Nut	3/8"
6	-	1	Part 6	( T78165 NO LONGER AVAILABLE)
7	19H2676	2	Cap Screw	3/8" X 1"
8	RE228937	1	FILTER	(SUB FOR RE11324)
9	38H1004	1	Elbow Fitting	-
10	R26448	2	O-Ring	-
11	24H1305	4	Washer	13/32" X 13/16" X 0.065"
12	19H1648	4	Cap Screw	3/8" X 3/4"
13	AT77446	1	FUEL LINE	-
14	T42285	1	Adapter Fitting	-
15	15H650	1	ELBOW FITTING	-
16	AT77445	1	FUEL LINE	-
17	T78646	1	Adapter Fitting	-
18	AT78092	1	HYDRAULIC HOSE - FABRICATE	11/16" X 550 MM (21-3/4") X 11/16"
19	38H1171	1	Adapter Fitting	-
20	14M7297	1	Nut	M5, NEGATIVE TERMINAL
21	12M3999	2	Lock Washer	6.400 MM
22	T55821	2	BOLT	-
23	T77613	1	O-Ring	-
24	T104327	1	Adapter Fitting	(SUB FOR T78647)
25	T78642	1	ADAPTER FITTING	-
26	T77814	1	O-Ring	-
27	14M7100	1	Nut	M4, POSITIVE TERMINAL
28	RE16143	1	FUEL PUMP	-
29	AT312934	1	PUMP	(SUB FOR AT77448)

FUEL PUMP AND FILTER KIT (SERIAL NO. 506809- ) [02J09]
