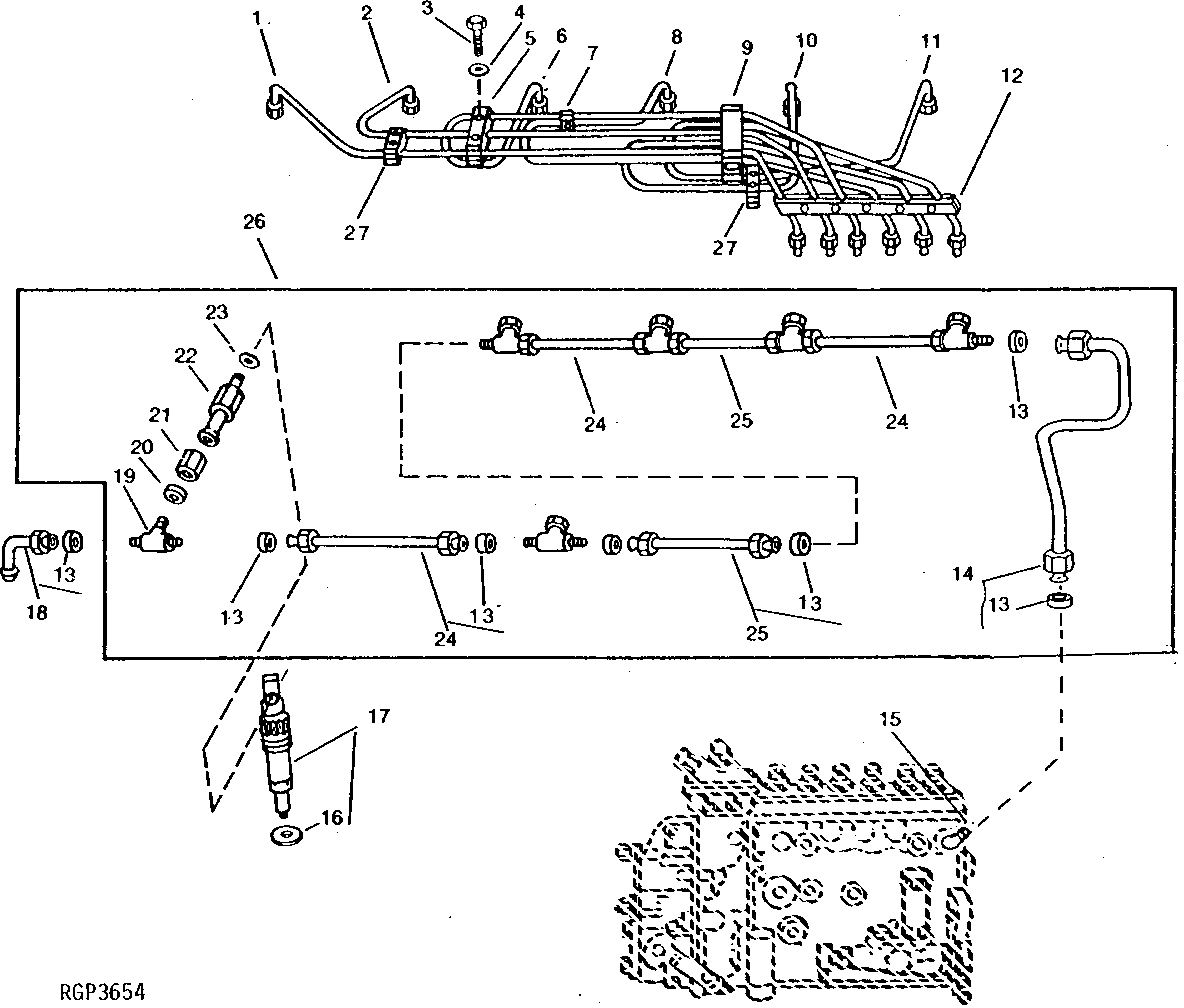

FUEL INJECTION NOZZLES AND FUEL LINES (6101 - REPLACEMENT ENGINE) [02E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE47721	1	Fuel Line	NO. 6
2	RE47720	1	Fuel Line	NO. 5
3	19H1849	2	Cap Screw	5/16" X 1-1/4"
4	12H303	2	Lock Washer	5/16"
5	R67197	1	Strap	-
5	R67195	1	Strap	-
5	R67196	2	Clamp	-
6	RE47719	1	Fuel Line	NO. 4
7	R120181	2	Strap	-
7	R58186	2	Clamp	-
7	R120182	1	Strap	-
7	RE55672	1	Bolt	-
8	RE47718	1	Fuel Line	NO. 3
9	R74660	1	Absorber	(INNER)
9	R74661	1	Absorber	(OUTER)
10	RE47717	1	Fuel Line	NO. 2
11	RE47716	1	Fuel Line	NO. 1
12	R120197	1	Clamp	-
12	R120198	1	Clamp	-
12	R59301	1	Reinforcement	-
12	RE55672	5	Bolt	-
13	R51936	13	Sealing Washer	-
14	RE42283	1	Fuel Line	-
15	R67364	1	Elbow Fitting	-
16	R84472	6	Washer	(NOT INCLUDED W/ RE65467)
17	RE65467	6	Nozzle Holder	(NOT AS SHOWN)
17	SE500186	6	Injection Nozzle Reman	(REMANUFACTERED)
17	SE501127	1	Injection Nozzle Reman	(SINGLE PACK) (REMANUFACTURED FOR RE65467)
18	AR104650	1	Fuel Line	(SUB FOR RE503092)
19	R79606	6	Tee Fitting	-
20	R79605	6	Washer	-
21	R79604	6	Tube Nut	-
22	R89175	6	Fitting	(ALSO ORDER R77551)
23	R77551	6	O-Ring	-
24	RE11926	3	Fuel Line	-
25	RE11927	2	Fuel Line	-
26	RE11929	1	Fuel Line	-
27	R120183	1	Strap	-
27	R59297	2	Half Clamp	-
27	R120184	1	Strap	-
27	RE55672	2	Bolt	-
27	RE55672	2	Bolt	-
27	R120183	1	Strap	-
27	R59297	2	Half Clamp	-
27	R120184	1	Strap	-
