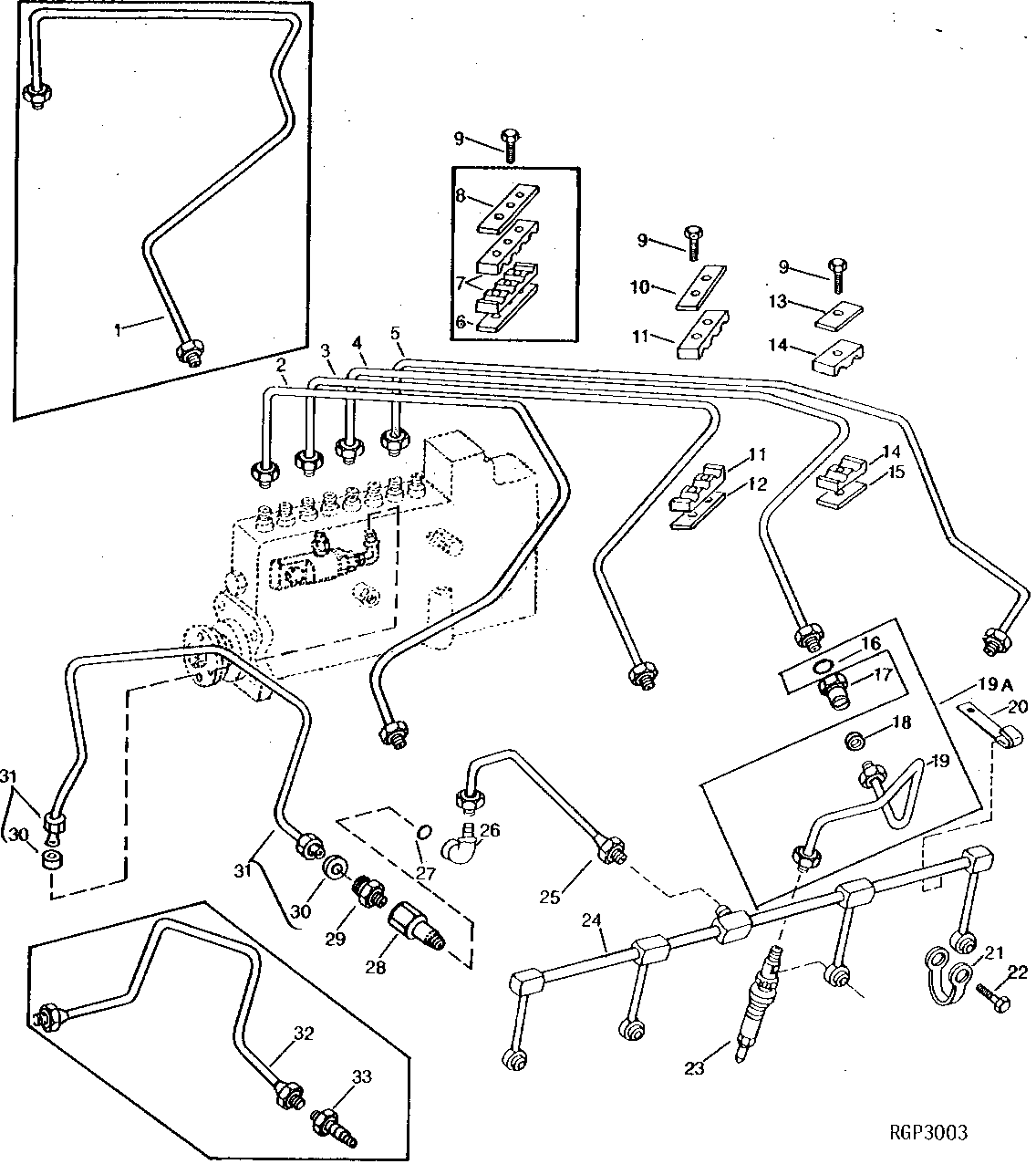

FUEL INJECTION LINES AND NOZZLES (RIGHT BANK) (8955 - EARLY ENGINE) [02E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR89519	1	FUEL LINE	NO. 4, (SUB RE20964)
2	AR102944	1	Fuel Line	NO. 4, (SUB RE20964)
2	RE20964	1	Fuel Line	NO. 4
3	AR89518	1	Fuel Line	NO. 3, (SUB RE20963)
3	RE20963	1	FUEL LINE	NO. 3
4	AR89517	1	Fuel Line	NO. 2, (SUB RE20962)
4	RE20962	1	FUEL LINE	NO. 2
5	AR89516	1	FUEL LINE	NO. 1, (SUB RE20961)
5	RE10776	1	Fuel Line	NO. 1, (SUB RE20961)
5	RE20961	1	Fuel Line	NO. 1
6	R61146	1	STRAP	-
7	R59299	2	CLAMP	-
8	R59300	1	STRAP	-
9	21H1463	10	Cap Screw	0.190" X 7/8"
9	21H1463	11	Cap Screw	0.190" X 7/8"
10	R59298	1	Strap	-
10	R59298	3	Strap	-
11	R59297	2	Half Clamp	-
11	R59297	6	Half Clamp	-
12	R61145	1	Strap	-
12	R61145	3	Strap	-
13	R59305	5	Strap	-
14	R58186	10	Clamp	-
15	R61144	5	Strap	-
16	R35155	4	O-Ring	(SUB FOR R63548, APPL)
17	R68671	4	Fitting	-
18	R66101	4	Packing	-
19	AR89520	4	FUEL LINE	(SUB RE30649)
19	RE20950	4	FUEL LINE	(SUB RE30649)
20	R62978	3	Clip	-
21	R63809	4	CLEVIS	-
22	R62968	4	Bolt	-
23	SE500446	4	INJECTION NOZZLE	(SUB FOR AR97404) (REMANUFACTURED)
23	SE501130	1	INJECTION NOZZLE	(SINGLE PACK) (REMANUFACTURED FOR AR97404)
23	-	4	Part 35	(SUB AR97404)
23	-	4	Part 34	(SUB AR78489)
24	AR78894	1	FUEL LINE	-
25	AR76703	1	OIL LINE	-
26	R62977	1	Elbow Fitting	-
27	R63548	1	O-Ring	-
28	R73917	1	UNION FITTING	-
29	R63604	1	Fitting	-
30	R51936	2	Sealing Washer	-
31	AR98331	1	Fuel Line	-
32	-	1	Part 46	( AR82589 NO LONGER AVAILABLE)
33	R136522	1	LUBRICATION FITTING	(SUB FOR AR76702)
19A	RE30649	4	KIT	(SUB FOR AR89520 OR RE20950)

FUEL INJECTION LINES AND NOZZLES (RIGHT BANK) (8955 - EARLY ENGINE) [02E15]
