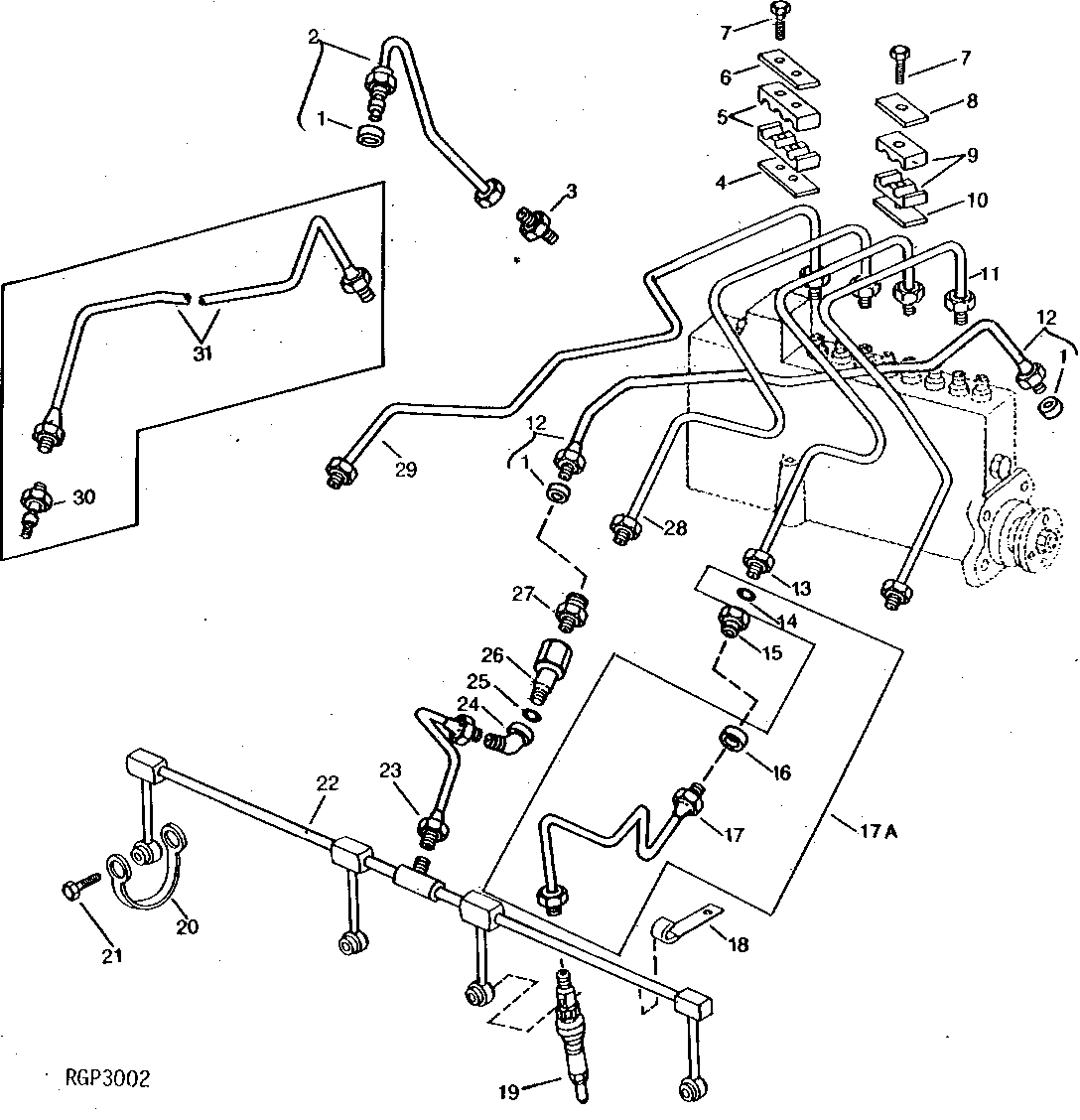

FUEL INJECTION LINES AND NOZZLES (LEFT BANK) (8955 - EARLY ENGINE) [02E13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51936	3	Sealing Washer	-
1	R51936	1	Sealing Washer	(SUB FOR R63603)
2	AR75837	1	FUEL LINE	-
3	R63604	1	Fitting	-
4	R61145	3	Strap	-
5	R59297	6	Half Clamp	-
6	R59298	3	Strap	-
7	21H1463	11	Cap Screw	0.190" X 7/8"
7	21H1463	12	Cap Screw	0.190" X 7/8"
8	R59305	5	Strap	-
8	R59305	6	Strap	-
9	R58186	10	Clamp	-
9	R58186	12	Clamp	-
10	R61144	5	Strap	-
10	R61144	6	Strap	-
11	AR89515	1	FUEL LINE	NO. 4, (SUB RE20954)
11	RE20954	1	FUEL LINE	NO. 4
12	AR98332	1	Fuel Line	-
13	AR89514	1	Fuel Line	NO. 3, (SUB RE20953)
13	RE20953	1	FUEL LINE	NO. 3
14	R35155	4	O-Ring	(SUB FOR R63548, APPL)
15	R68671	4	Fitting	-
16	R66101	4	Packing	-
17	AR89520	4	FUEL LINE	(SUB RE30649)
17	RE20950	4	FUEL LINE	(SUB RE30649)
18	R62978	3	Clip	(SUB RE30649)
19	-	4	Part 28	(SUB AR78489)
19	-	4	Part 29	(SUB AR97404)
19	SE500446	4	INJECTION NOZZLE	(SUB FOR AR97404) (REMANUFACTURED)
19	SE501130	1	INJECTION NOZZLE	(SINGLE PACK) (REMANUFACTURED FOR AR97404)
20	R63809	4	CLEVIS	-
21	R62968	4	Bolt	-
22	AR78894	1	FUEL LINE	-
23	AR76703	1	OIL LINE	-
24	R62977	4	Elbow Fitting	-
25	R63548	1	O-Ring	-
26	R73917	1	UNION FITTING	-
27	R63604	1	Fitting	-
28	AR89513	1	Fuel Line	NO. 2, (SUB RE20952)
28	RE20952	1	FUEL LINE	NO. 2
29	AR89512	1	FUEL LINE	NO. 1, (SUB RE20951)
29	RE10777	1	Fuel Line	NO. 1, (SUB RE20951)
29	RE20951	1	FUEL LINE	NO. 1
30	R136522	1	LUBRICATION FITTING	(SUB FOR AR76702)
31	-	1	Part 46	( AR82590 NO LONGER AVAILABLE)
17A	RE30649	4	KIT	(SUB FOR AR89520 OR RE20950)

FUEL INJECTION LINES AND NOZZLES (LEFT BANK) (8955 - EARLY ENGINE) [02E13]
