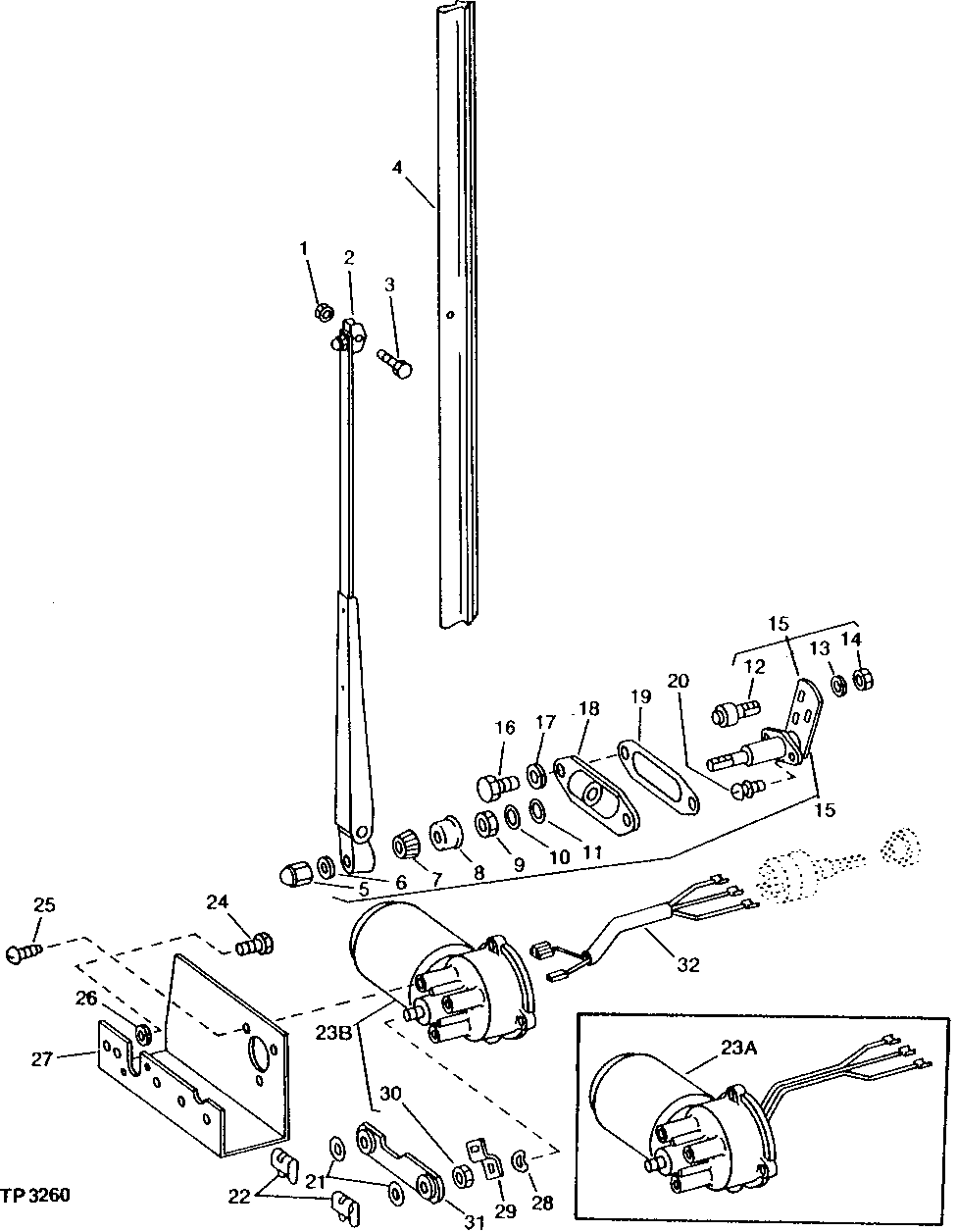

FRONT WINDSHIELD WIPER AND MOTOR [03I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T35440	1	Lock Nut	-
2	AT53868	1	WIPER ARM	-
3	T35441	1	Screw	-
4	AT53025	1	WIPER BLADE	(SUB FOR AT53869)
5	-	1	Part 5	( U46514 NO LONGER AVAILABLE)
6	12H291	1	Lock Washer	5/16"
7	-	1	Part 7	( U46513 NO LONGER AVAILABLE)
8	-	1	Part 8	( U46512 NO LONGER AVAILABLE)
9	-	1	Part 9	( U46511 NO LONGER AVAILABLE)
10	24H1362	1	Washer	41/64" X 1" X 0.075", (SUB FOR U46510)
11	-	1	Part 11	LEATHER ( U46509 NO LONGER AVAILABLE)
12	U46507	3	PIN	-
13	12H297	3	Lock Washer	1/4"
14	14H649	3	Nut	1/4"
15	AT58147	1	SHAFT	(SUB FOR AT29857) ( AT29857 IS NO LONGER AVAILABLE)
16	19H2664	1	Cap Screw	5/16" X 3/4"
17	12H303	1	Lock Washer	5/16"
18	T56019	1	COVER	-
19	T56020	1	GASKET	-
20	12H295	2	Lock Washer	0.190"
20	21H1127	2	SCREW	0.190" X 7/16", (SUB FOR AU43855) (ALSO ORDER 12H295)
21	T32255	2	Shim	-
22	U46506	2	Clip	-
24	19H3138	2	Cap Screw	1/4" X 5/8"
25	AU43854	3	SCREW WITH WASHER	-
26	12H302	2	Lock Washer	1/4"
27	AT103999	1	BRACKET	(SUB FOR U46515)
28	U46508	1	WASHER	-
29	T56018	1	ARM	(USE WITH AT38992 AND AT67132)
29	RE48813	1	Arm	(SUB FOR AT141988) (USE WITH AT115599)
30	F3220R	1	Lock Nut	(SUB FOR AU43857, THIS APPLICATION)
31	AU43853	1	Link	-
32	AT66482	1	WIRING HARNESS	(USE WITH AT67132)
32	AT135811	1	Wiring Harness	(USE WITH AT115599)
23A	-	1	Part 25	(SUB FOR AT67132) (SUB RE48813, AT135811 AND AT115599)
23A	-	1	Part 24	(WITH WIRE) (SUB FOR AT38992) (SUB RE48813, AT135811 AND AT115599)
23B	AT115599	1	ELECTRIC MOTOR	(WITHOUT WIRE) (SUB FOR AT67132, THIS APPLICATION)

FRONT WINDSHIELD WIPER AND MOTOR [03I18]
