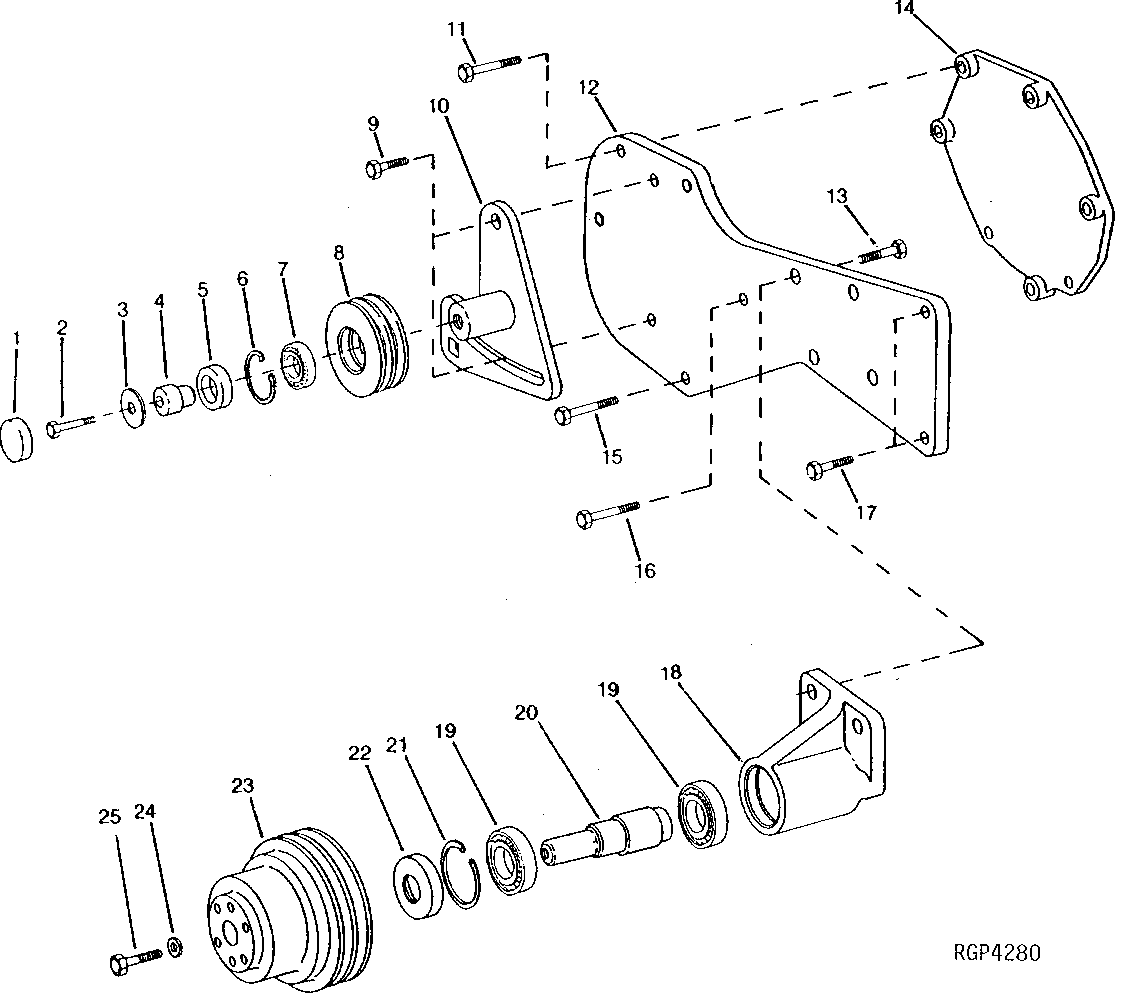

FAN DRIVE PULLEY, SUPPORT AND IDLER PULLEY (6101 - REPLACEMENT ENGINE) [02H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66077	1	PLUG	-
2	19H2678	1	Cap Screw	7/16" X 2-1/8"
3	24H1330	1	Washer	15/32" X 1-3/8" X 7/64"
4	R70377	1	HUB	-
5	AR92593	1	SEAL	-
6	R55408	1	Wear Ring	-
7	JD8670	1	BALL BEARING	-
8	T105390	1	IDLER	-
9	19H1792	2	Cap Screw	1/2" X 1"
10	RE46233	1	Bracket	-
11	19H3175	3	Cap Screw	3/8" X 3-5/8"
12	R108877	1	PLATE	-
13	19H1815	4	Cap Screw	1/2" X 1-1/4"
14	R108856	1	Cover	-
15	19H3217	1	Cap Screw	3/8" X 1-3/4"
16	19H3483	1	Cap Screw	3/8" X 1-1/8"
17	19H3175	2	Cap Screw	3/8" X 3-5/8"
18	RE53176	1	HOUSING	(NOT AS SHOWN)
19	JD10329	2	Ball Bearing	-
20	R63987	1	Shaft	-
21	R62191	1	Snap Ring	1.7 MM (.067") (RED)
21	R62192	1	Snap Ring	1.9 MM (.077") (GREEN)
21	R62193	1	Snap Ring	2.2 MM (.087") (BLUE)
21	R62194	1	Snap Ring	2.5 MM (.097") (WHITE)
22	RE20768	1	Seal	-
23	R108857	1	Pulley	-
24	T20217	1	Washer	-
25	R79850	1	Cap Screw	-
..	T21242	2	Washer	(BELT TIGHTENER BRKT TO BELT TIGHTENER LOWER SCREW)
..	19H2055	1	CAP SCREW	(IDLER PULLEY HUB TO BELT TIGHTENER BRACKET)

FAN DRIVE PULLEY, SUPPORT AND IDLER PULLEY (6101 - REPLACEMENT ENGINE) [02H06]

Нет текстового описания
