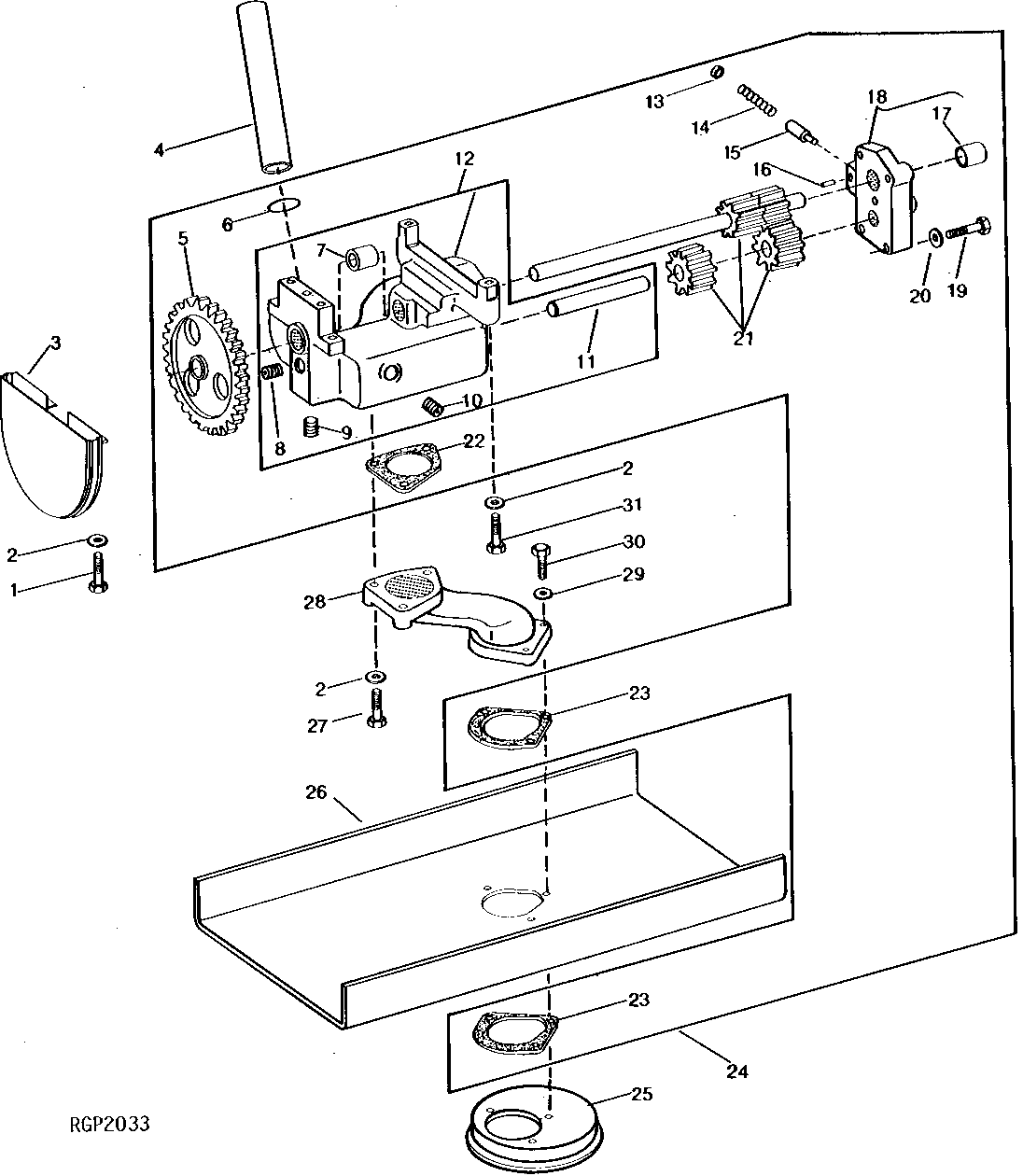

ENGINE OIL PUMP AND INTAKE (8955 - EARLY ENGINE) [02D10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7166	3	Cap Screw	M10 X 20
2	M72490	10	Washer	(SUB FOR R42729)
3	AR73970	1	SHIELD	-
4	R61014	1	Line	-
5	R61007	1	GEAR	-
6	R61015	1	O-Ring	-
7	R61004	2	BUSHING	-
8	R104592	1	Pipe Plug	-
9	15H666	1	Pipe Plug	3/8"
10	15H665	1	PIPE PLUG	3/4"
11	R61003	1	DOWEL PIN	-
12	RE16105	1	Housing	(MARKED R61002) (SUB FOR AR73966)
13	24H1287	1	Washer	9/32" X 5/8" X 0.065"
14	T31636	1	Spring	-
15	R63532	1	Valve	-
16	34H284	1	Spring Pin	3/16" X 1-1/4"
17	R61004	1	BUSHING	-
18	AR73969	1	COVER	(MARKED R61008)
19	19M7572	4	Cap Screw	M10 X 45
20	M72490	4	Washer	(SUB FOR R42729)
21	RE22976	1	GEAR	(MATCHED SET) (SUB FOR AR89662)
22	R61013	1	GASKET	-
23	R66695	2	GASKET	-
24	RE22977	1	PUMP	(SUB FOR AR89661 OR RE11041) ( RE22977 IS NO LONGER AVAILABLE)
25	AR75851	1	OIL PUMP INTAKE	-
26	R66490	1	ISOLATOR	-
27	19M7358	3	Cap Screw	M10 X 40
28	R62958	1	HOUSING	-
29	R40716	3	Washer	-
30	19M7513	3	Cap Screw	M8 X 30
31	19M7742	4	Cap Screw	M10 X 65

ENGINE OIL PUMP AND INTAKE (8955 - EARLY ENGINE) [02D10]
