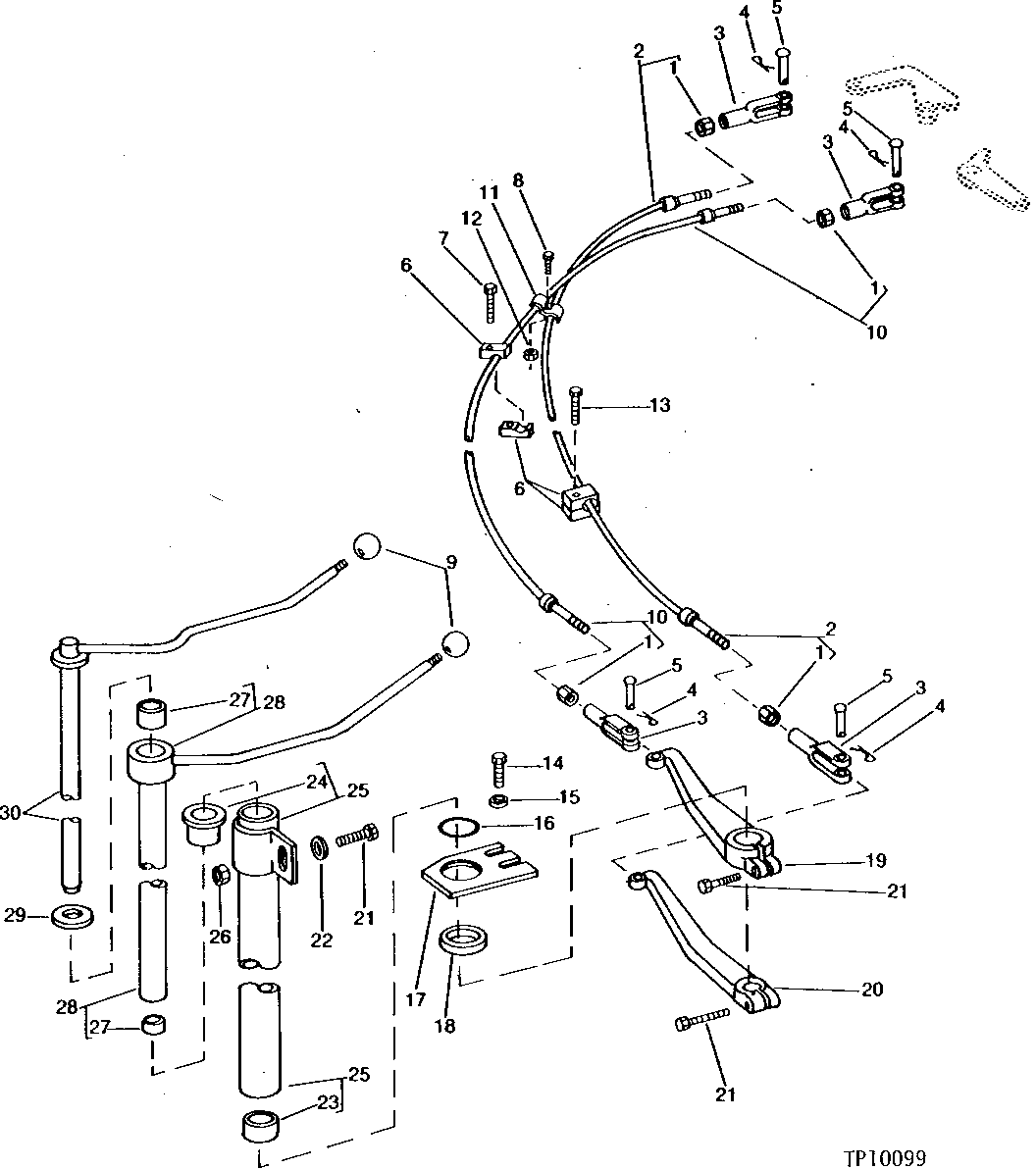

DIRECTIONAL AND SPEED SELECTOR SHIFT LEVERS AND LINKAGE [01C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H860	4	Nut	1/4"
2	AT77592	1	PUSH PULL CABLE	DIRECTIONAL SHIFT, (SUB FOR AT55877)
3	M3742T	4	Yoke	-
4	11M7077	4	Cotter Pin	1.600 X 25 MM, (USE WITH L4667T)
4	11M7082	4	Cotter Pin	2.500 X 25 MM, (USE WITH R662R)
5	L4667T	4	PIN FASTENER	(SUB R662R AND 11H234)
5	R662R	1	PIN FASTENER	-
6	T33483	8	CLAMP	-
7	19H3217	2	Cap Screw	3/8" X 1-3/4", (SUB FOR 19H3217, THIS APPLICATION)
8	19H2705	1	Cap Screw	5/16" X 1"
9	M526T	2	KNOB	-
10	AT77592	1	PUSH PULL CABLE	SPEED SELECTOR SHIFT, (SUB FOR AT55877)
11	T14073	2	Clamp	-
12	14H785	2	Nut	5/16"
13	19H2633	2	Cap Screw	3/8" X 1-1/2"
14	19H118	2	CAP SCREW	5/16" X 1"
15	24H1136	2	Washer	11/32" X 11/16" X 0.065"
16	R29463	1	O-Ring	-
17	T58116	1	SUPPORT	-
18	T58117	1	ISOLATOR	-
19	T58114	1	LEVER	LOWER SPEED SELECTOR SHIFT
20	T58115	1	LEVER	LOWER DIFFERENTIAL SHIFT
21	19H3239	3	Cap Screw	3/8" X 1-1/4"
22	24H1652	1	Washer	13/32" X 11/16" X 7/64"
23	T58113	1	BUSHING	-
24	T58112	1	BUSHING	-
25	AT55875	1	STEERING COLUMN	(USE IF AVAILABLE OR ORDER T58112, T58113 AND AT55876 STEERING COLUMN)
26	14H812	1	NUT	3/8"
27	T58109	2	Bushing	-
28	AT55873	1	LEVER	SPEED SELECTOR SHIFT
29	T58105	1	WASHER	-
30	AT55872	1	LEVER	DIRECTIONAL

DIRECTIONAL AND SPEED SELECTOR SHIFT LEVERS AND LINKAGE [01C18]
