DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43340	1	Plate	-
2	AR88550	6	Disk	(SUB FOR AR43086) (SUB RE29429, R43340 AND (5) R43343)
2	RE29429	6	Disk	-
3	R43343	5	Clutch Plate	-
4	R1901R	3	SPRING	-
5	R109006	1	Thrust Washer	(SUB FOR R74916)
6	34H385	3	Spring Pin	1/4" X 1-3/4"
7	RE36863	1	Cover	(MARKED R68592 OR R98136) (SUB FOR AR72432, AR89393 AND AR101123) (ALSO ORDER (3) 34H385) (SUB R98136 AND R109006)
8	R47172	12	Washer	-
9	R115437	12	Cap Screw	(SUB FOR R43406)
10	R68187	8	BOLT	-
11	R47172	8	Washer	-
12	R109006	1	Thrust Washer	(SUB FOR R74916)
13	AR101124	1	HOUSING	(MARKED R63242) (SUB FOR AR90889)
14	R60038	1	Packing	-
15	34H348	1	Spring Pin	3/8" X 1"
16	R63347	1	BEVEL GEAR	-
17	R112769	4	THRUST WASHER	(SUB FOR R63341)
18	R48253	4	PINION	(SUB FOR R70040)
18	R120349	4	Pinion	-
19	R57377	2	PINION SHAFT	-
19	R70038	2	PINION SHAFT	-
20	B1402R	4	SNAP RING	(SUB FOR F215R)
21	R110707	4	THRUST WASHER	(SUB FOR R70042) (ALSO ORDER B1402R)
22	R70041	104	NEEDLE ROLLER	-
23	R70039	4	THRUST WASHER	-
24	AR91399	1	PINION	(NO LONGER AVAILABLE, ORDER UNIT PARTS)
25	R63340	1	BEVEL GEAR	-

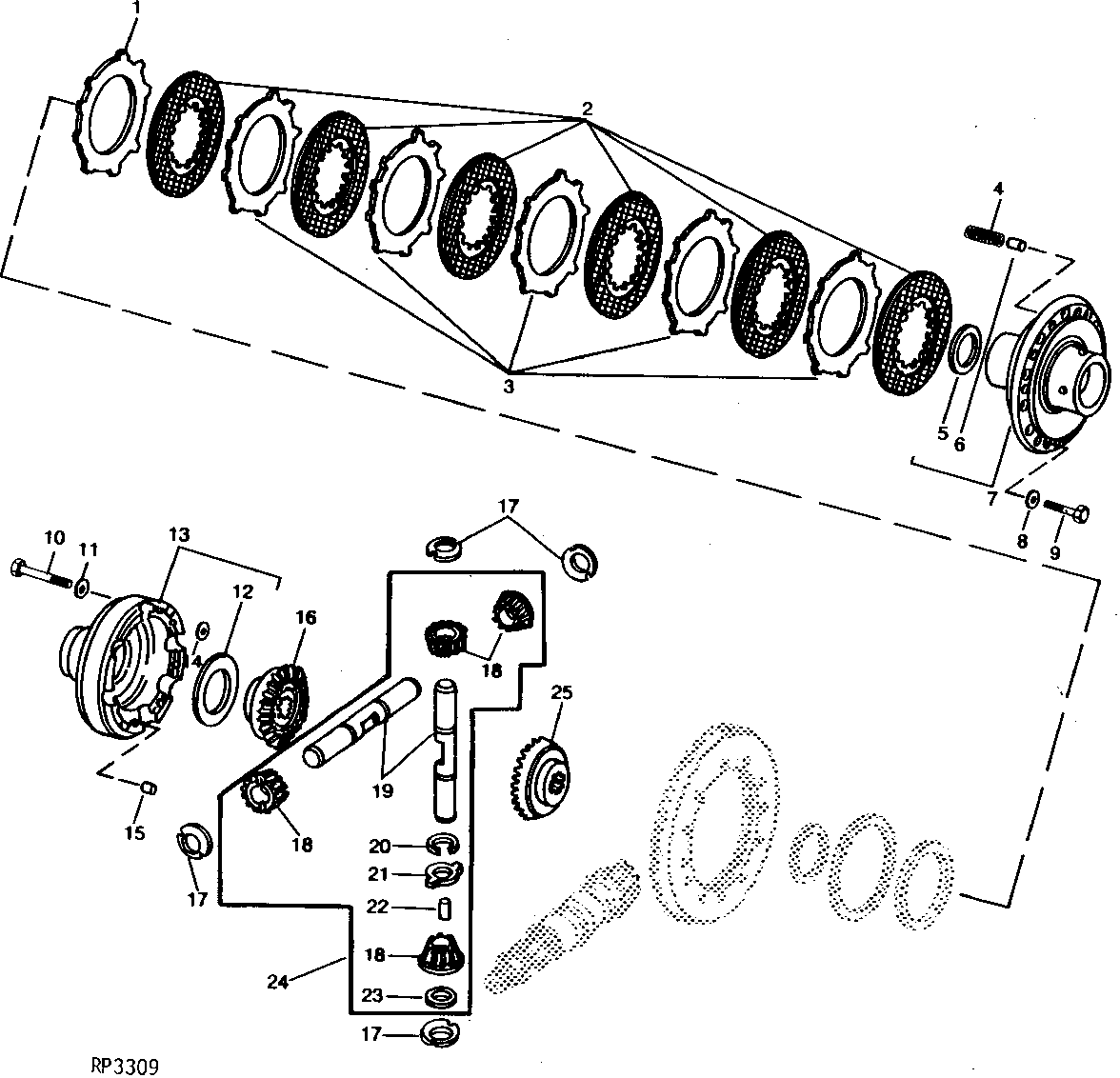

DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B19]
