DECALS AND LABELS [03C15]

DECALS AND LABELS [03C15]

DECALS AND LABELS [03C15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

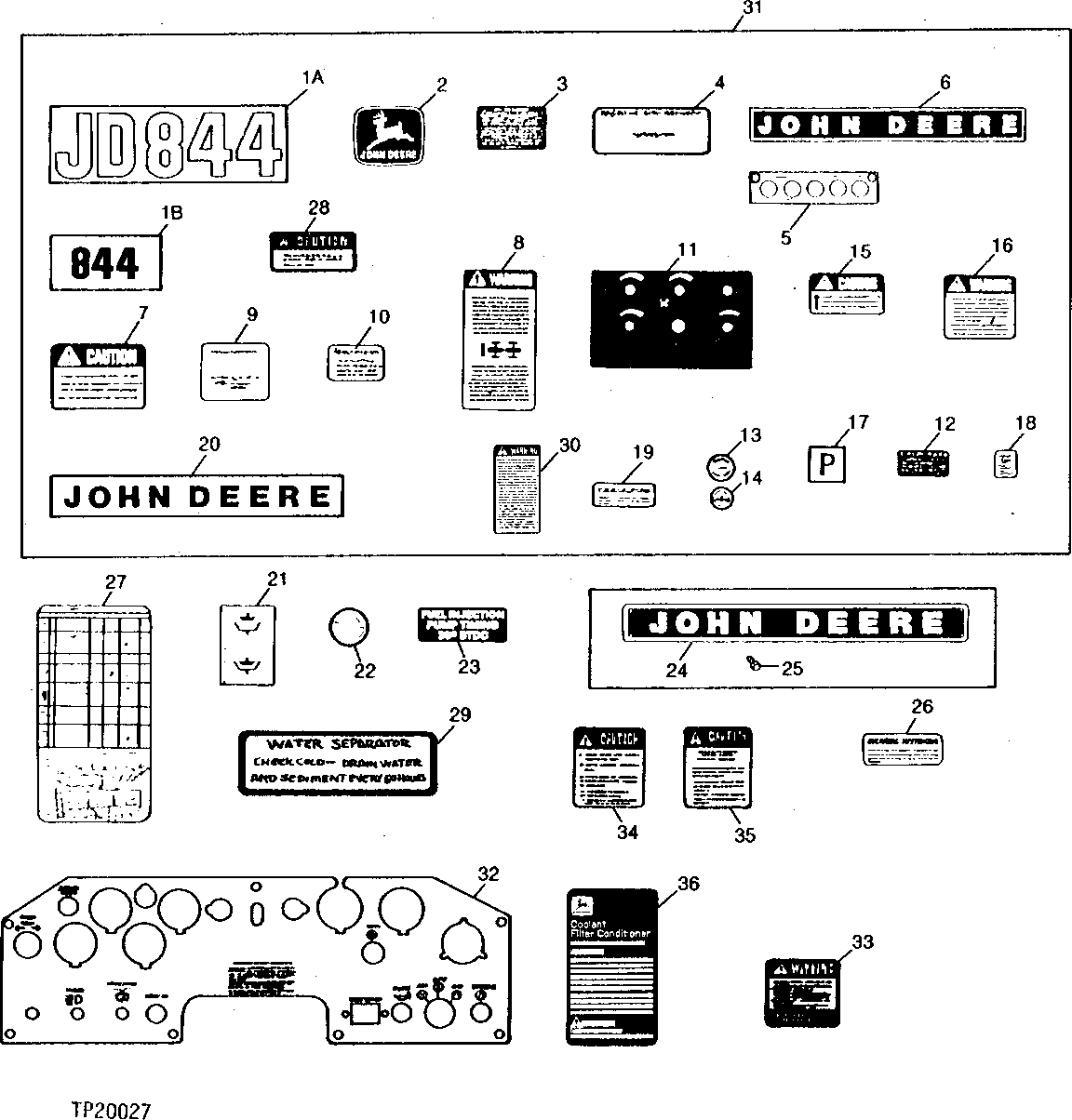

DECALS AND LABELS [03C15]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-	2	Part 3	DECAL ( JD5543 NO LONGER AVAILABLE)
2	JD5626	2	LABEL	LEAPING DEER
3	R56902	1	Label	DRY AIR CLEANER
4	-	1	Part 6	BATTERY CONNECTION AND PRECAUTION ( T23616, NO LONGER AVAILABLE)
5	T108298	1	LABEL	(SUB FOR T67742) STEERING COLUMN COVER (WITH EMERGENCY STEERING)
6	R66170	2	Label	JOHN DEERE (ENGINE VALVE COVER)
7	T43705	1	SAFETY SIGN	CAUTION
8	T50844	2	SAFETY SIGN	SAFETY
9	T66743	1	SAFETY SIGN	PARK-LOCK RELEASE
10	T42170	1	Label	INSTRUCTIONAL
11	T58532	1	LABEL	CONTROL CONSOLE
12	R68957	1	LABEL	VALVE CLEARANCE INSTRUCTION
13	-	1	Part 15	OIL FILLER CAP (SUB AT66945)
14	-	1	Part 16	DIFFERENTIAL LOCK FUSE HOLDER (SUB AT66945)
15	T58537	2	LABEL	HYDRAULIC RESERVOIR
16	T64883	1	SAFETY SIGN	PLATFORM TILTING
17	T58531	1	SAFETY SIGN	PARK
18	T72537	1	LABEL	OSHA ROPS
19	T70522	2	LABEL	ENGINE SIDE SHIELD
20	JD5616	2	LABEL	JOHN DEERE (ENGINE SIDE SHIELD)
21	T58533	1	LABEL	TRANSMISSION DISCONNECT
22	T55229	1	LABEL	WEIGHT
23	-	1	Part 25	FUEL INJECTION PUMP TIMING (NO LONGER AVAILABLE)
24	T33461	2	IDENTIFICATION PLATE	-
25	T10671	1	CAP SCREW	-
26	T70524	1	DECALS	ENGINE SIDE SHIELD (SPANISH)
26	T70525	1	LABEL	ENGINE SIDE SHIELD (FRENCH)
26	T70523	1	DECALS	ENGINE SIDE SHIELD (GERMAN)
27	T78790	1	LABEL	PERIODIC SERVICE CHART, (SUB FOR T69005, T73902 AND T76645)
27	T103184	1	LABEL	PERIODIC SERVICE CHART
27	T58536	1	LABEL	PERIODIC SERVICE CHART
28	T77604	1	SAFETY SIGN	DOWNSHIFT
29	T72735	1	LABEL	WATER SEPARATOR
30	T146102	1	Label	START SAFETY, (SUB FOR T75512, T146102 OR T146102 OR T146102)
31	-	1	Part 37	DECAL REFINISHING (ENGLISH) (SUB AT68997 FOR AT66945)
31	AT68997	1	LABEL KIT	DECAL (ENGLISH)
32	T101691	1	LABEL	INSTRUMENT PANEL (SUB FOR T81927)
33	T146431	1	SAFETY SIGN	ACCUMULATOR (WARNING)
34	T101405	1	SAFETY SIGN	CAUTION, SHUTDOWN
35	T146443	1	Safety Sign	CAUTION, SECONDARY STEERING, (SUB FOR T101497)
36	R73066	1	LABEL	COOLANT CONDITIONER FILTER
1A	T58530	2	LABEL	SERIES DESIGNATION
1B	T71707	2	LABEL	SERIES DESIGNATION
