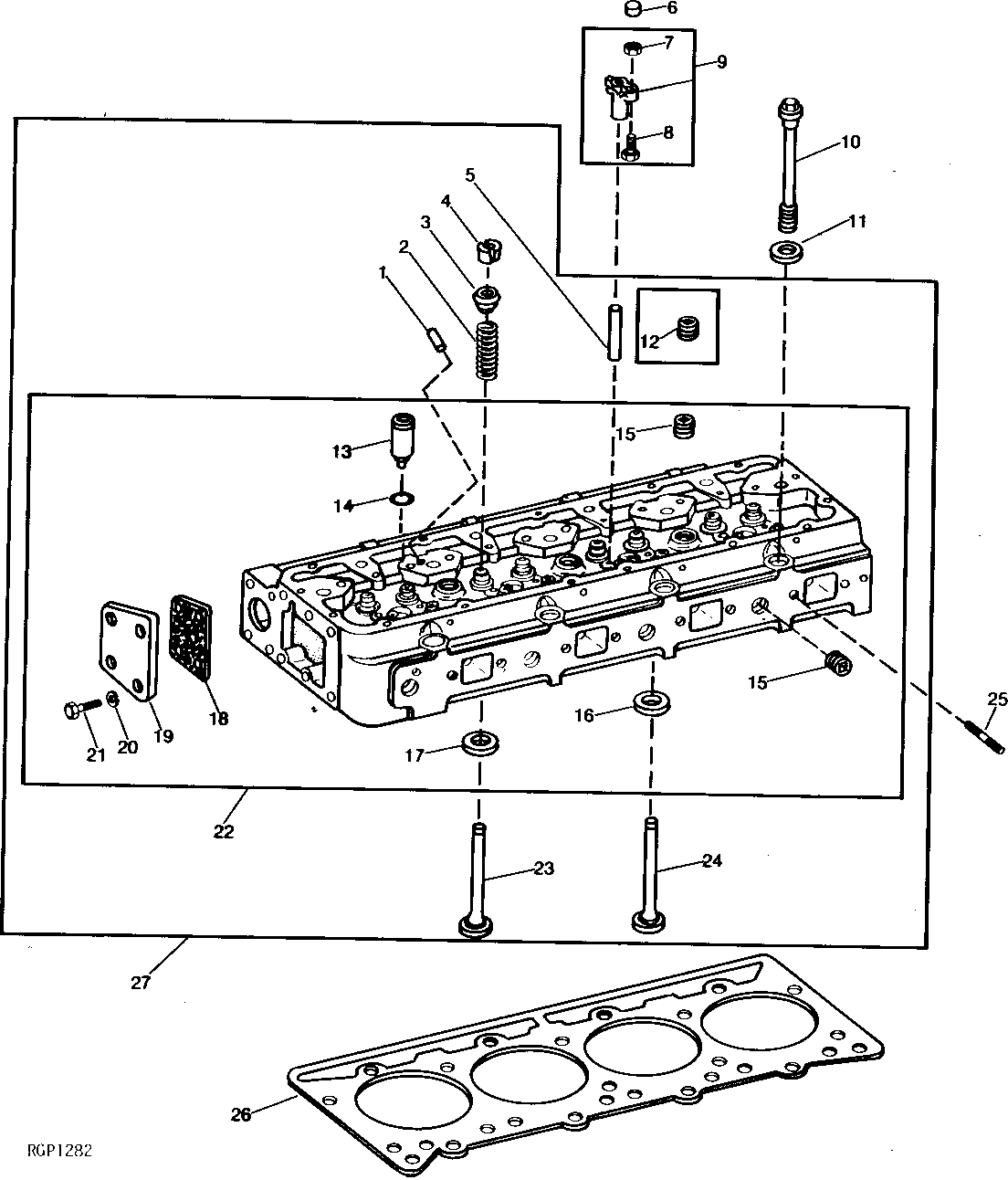

CYLINDER HEAD AND VALVES (RIGHT OR LEFT BANK) (8955 - EARLY ENGINE) [02D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H247	1	Spring Pin	1/8" X 3/4"
2	R49571	16	SPRING	-
3	R62530	16	ROTATOR	-
4	T20077	32	Retainer	-
5	R61999	8	DOWEL PIN	-
6	R40366	8	CAP	-
7	R60717	8	Nut	M10
8	R60582	8	Screw	M10 X 27.500
9	AR73480	8	ARM	-
10	R63324	18	BOLT	-
11	R63325	18	WASHER	16.660 X 27.750 X 4.390 MM (0.656" X 1.093" X 0.173")
12	15H690	3	Pipe Plug	3/4", (SUB FOR AR72318)
13	R62528	4	SLEEVE	-
14	R56751	4	O-Ring	-
15	15H562	4	Pipe Plug	1", (SUB FOR AR78522)
15	15H562	7	Pipe Plug	1", (SUB FOR AR78522)
15	15H690	3	Pipe Plug	3/4", (SUB FOR AR72318)
16	R50356	8	VALVE SEAT INSERT	STD
16	R55061	8	VALVE SEAT INSERT	0.25 MM OS
17	R68136	8	VALVE SEAT INSERT	0.25 MM OS
17	R63078	8	VALVE SEAT INSERT	STD
18	R75133	1	GASKET	-
19	R75134	1	Cover	-
20	12M7066	4	Lock Washer	10 MM
21	19M7402	4	Cap Screw	M10 X 25
22	AR76896	1	CYLINDER HEAD	(A) (B) (MARKED R58024) (SUB RG20631)
22	RE10733	1	CYLINDER HEAD	(A) (B) (MARKED R73272) (SUB RG20631)
22	RE10733	1	CYLINDER HEAD	(MARKED R73272) (SUB RG20631)
23	R68138	8	INTAKE VALVE	0.5 MM OS
23	R68139	8	Intake Valve	1.0 MM OS
23	R68137	8	INTAKE VALVE	0.075 MM OS
23	R78445	8	INTAKE VALVE	(SUB FOR R63079) STD
24	R50357	8	EXHAUST VALVE	STD
24	R55056	8	EXHAUST VALVE	0.08 MM OS
24	R55058	8	EXHAUST VALVE	0.38 MM OS
24	R55060	8	EXHAUST VALVE	0.76 MM OS
25	R61296	8	STUD	(SUB R82735, APPL)
26	RE51641	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R62409)
27	RE11270	1	CYLINDER HEAD	(SUB RG20631)
27	RG20631	1	Cylinder Head	(REMANUFACTURED)

CYLINDER HEAD AND VALVES (RIGHT OR LEFT BANK) (8955 - EARLY ENGINE) [02D23]
