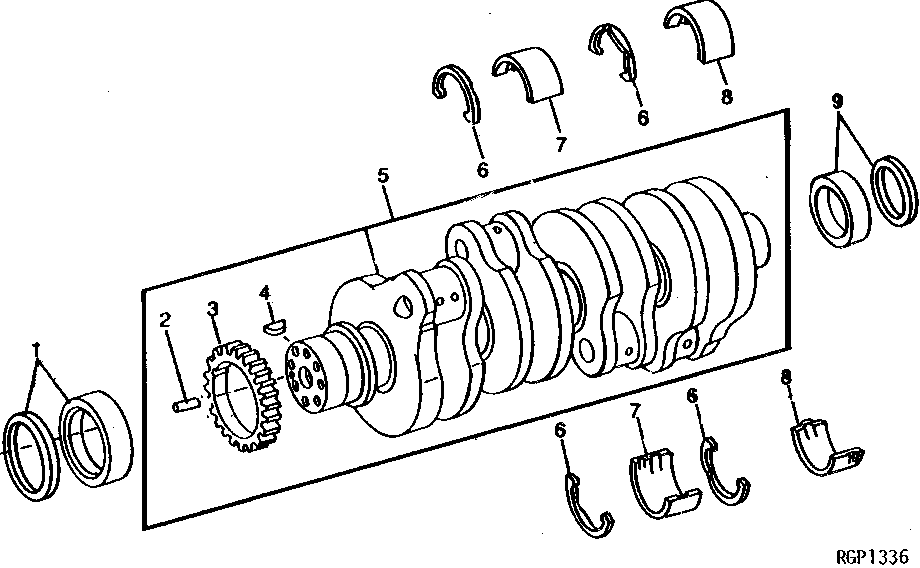

CRANKSHAFT AND MAIN BEARINGS (ENGINE SERIAL NO. -002235) [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR85112	1	SEAL	(REAR) (WET CLUTCH)
2	R61403	1	DOWEL PIN	-
3	R58756	1	GEAR	-
4	26H85	1	Shaft Key	1/4" X 1"
5	AR70669	1	CRANKSHAFT	(MARKED R58739) (SUB RG20629 AND RE10660)
6	AR85115	1	WASHER	(PKG (4) R61410) (SUB RE17510)
6	RE17510	1	WASHER	(PKG (4) R76217 OR (4) R80626) (SUB FOR AR104047)
6	RE17511	1	WASHER	0.18 MM OS (PKG (4) R68130 OR (4) R80627) (SUB FOR AR85086)
7	RE13229	1	THRUST BEARING	0.05 MM US (PKG R68122 AND R68123 OR R78467 AND R78468) (SUB FOR AR85071)
7	-	1	Part 13	0.75 MM US (PKG R68128 AND R68129) (AR85085 NLA)
7	RE13231	1	THRUST BEARING	0.50 MM US (PKG R68126 AND R68127 OR R78471 AND R78472) (SUB FOR AR85084)
7	RE13230	1	THRUST BEARING	0.25 MM US (PKG R68124 AND R68125 OR R78469 AND R78470) (SUB FOR AR85077)
7	RE13228	1	THRUST BEARING	STD (PKG R61408 AND R61409 OR R78465 AND R78466) (SUB FOR AR85070)
8	RE13232	1	BEARING	STD (PKGF R61406 AND R61407 OR R78473 AND R78474) (SUB FOR AR85012)
8	RE13233	1	BEARING	0.05 MM US (PKG R68114 AND R68115 OR R78475 AND R78476) (SUB FOR AR85014)
8	RE13234	1	BEARING	0.25 MM US (PKG R68116 AND R68117 OR R78477 AND R78478) (SUB FOR AR85021)
8	RE13235	1	BEARING	0.50 MM US (PKG R68118 AND R68119 OR R78479 AND R78480) (SUB FOR AR85059)
8	-	1	Part 18	0.75 MM US (PKG R68120 AND R68121) (AR85063 NLA)
9	AR85087	1	SEAL	(FRONT)

CRANKSHAFT AND MAIN BEARINGS (ENGINE SERIAL NO. -002235) [02B14]
