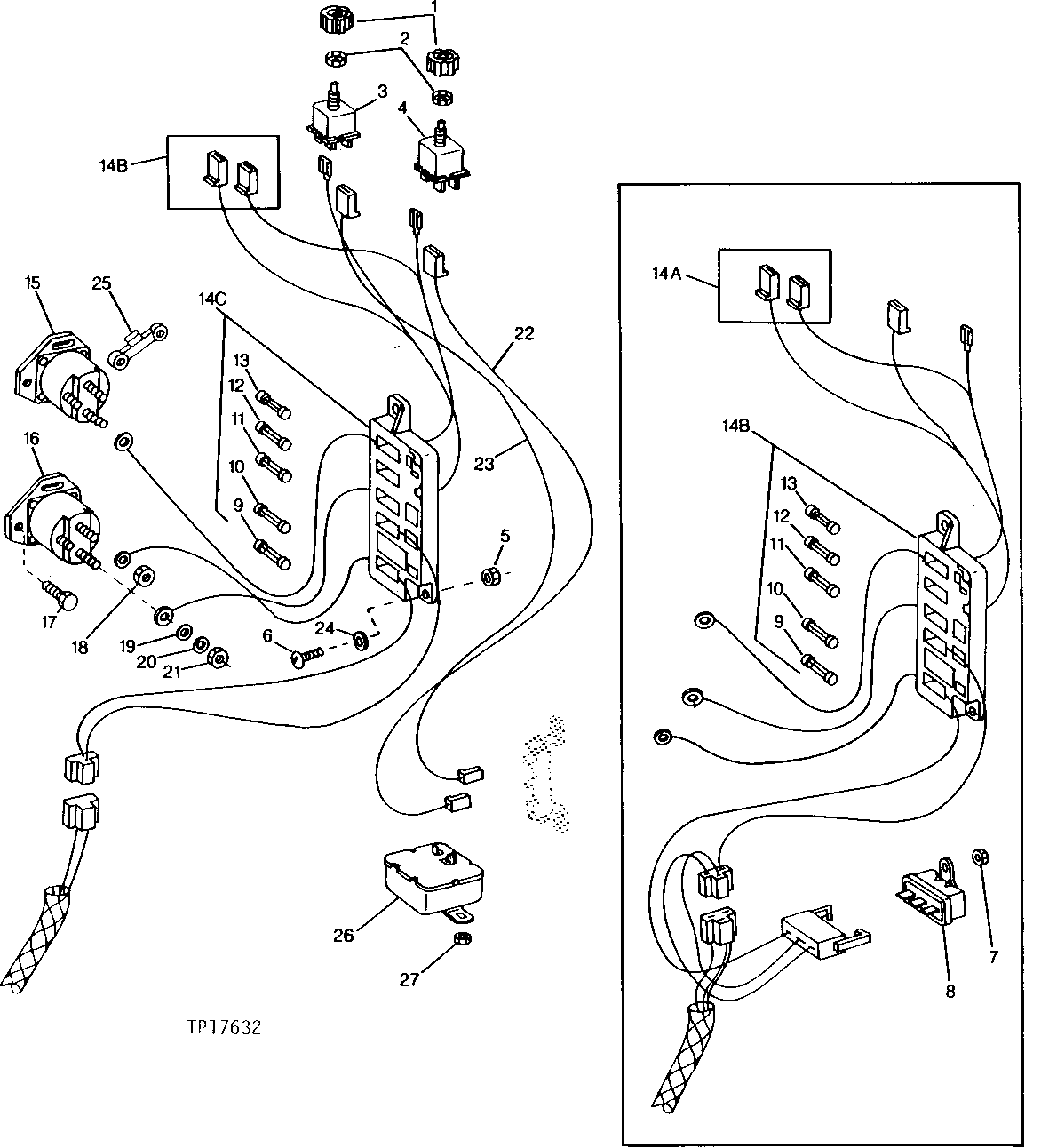

CONTROL CONSOLE WIRING HARNESS WITH RELAYS, SWITCHES AND FUSES [03F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL58295	2	Knob	(SUB FOR AR69370) (SUB FOR AR49969, THIS APPLICATION)
2	E46066	2	Nut	(SUB FOR R44165)
3	AH84588	1	SWITCH	BLOWER
4	AH84588	1	SWITCH	DEFROSTER
5	14H608	2	NUT	0.216"
6	21H1374	2	SCREW	0.216" X 1-7/8"
7	14H605	1	Nut	0.164"
8	AR77344	1	FUSE	THERMAL
9	AT28077	1	Fuse	10 AMPERE (COMPRESSOR)
10	B32206	1	FUSE	3 AMPERE, (SUB FOR T33840)
11	AH84167	1	FUSE	30 AMPERE (CONDENSER)
12	AT28077	1	Fuse	10 AMPERE (DEFROSTER)
13	AH76113	1	FUSE	20 AMPERE (PRESSURIZER)
15	AT52025	1	SOLENOID	AIR CONDITIONER
16	AT52025	1	SOLENOID	CONDENSER
17	19H1227	4	Cap Screw	1/4" X 1/2"
18	14H631	4	Nut	0.190"
19	24H1136	2	Washer	11/32" X 11/16" X 0.065"
20	24H1283	2	Washer	7/32" X 1/2" X 0.049"
21	14H785	2	Nut	5/16"
22	AT56461	1	WIRING LEAD	DEFROSTER SWITCH TO RESISTOR, (SUB AT63754)
23	AT56455	1	WIRING LEAD	BLOWER SWITCH TO RESISTER, (SUB AT63754)
24	24H1285	1	Washer	17/64" X 7/16" X 0.065"
25	AT64384	1	DIODE	-
26	AT38184	1	FLASHER	24-VOLT
27	14H786	2	Nut	1/4"
14A	AT56763	1	FUSE BOX	CONSOLE WITH HARNESS, (SUB AT63757)
14B	AT63757	1	FUSE BOX	(NOT ILLUSTRATED)
14C	AT84675	1	FUSE HOLDER	-
