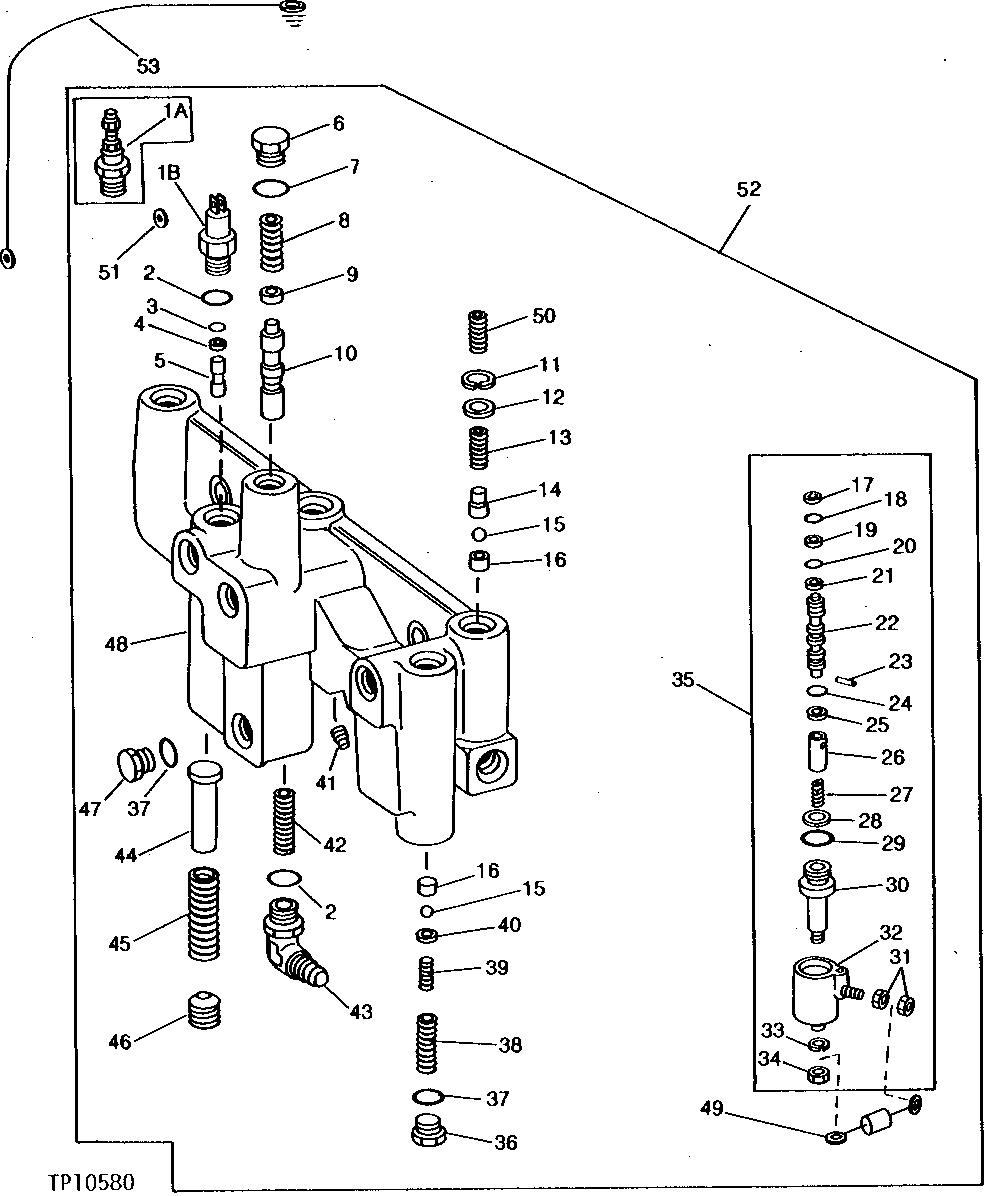

CLOSED CENTER MODULE WITH DIFFERENTIAL LOCK [03B11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	R26448	3	O-Ring	-
3	R26976	2	O-Ring	-
4	T42571	2	Back-Up Ring	-
5	T70613	2	PIN FASTENER	(SUB FOR T37170, THIS APPLICATION)
6	R41155	1	Fitting Plug	(SUB FOR R39112 AND T22867, THIS APPLICATION)
7	R26375	1	O-Ring	-
8	R46862	1	Spring	-
9	R82133	1	SHIM	(SUB FOR R46901)
10	R46855	1	SPOOL VALVE	(SUB R79134 AND R74418, THIS APPLICATION)
10	R79134	1	VALVE	(SUB FOR R74417) (SUB R82134 AND (11) R82133)
10	R82134	1	VALVE	-
11	R33282	2	Snap Ring	-
12	R48013	2	Washer	-
13	R44256	2	SPRING	-
14	R44254	4	GUIDE	-
15	400R	4	Ball	-
16	R48014	1	SEAT	-
17	R42926	1	Back-Up Ring	-
18	R45186	1	O-RING	-
19	R45187	1	Back-Up Ring	-
20	R45638	1	O-Ring	-
21	R46701	1	Snap Ring	-
22	-	1	Part 25	( AR81176 NO LONGER AVAILABLE)
23	34H227	1	Spring Pin	3/32" X 1/2"
24	N31772	1	O-Ring	-
25	R46702	1	Back-Up Ring	-
26	-	1	Part 29	( R58884 NO LONGER AVAILABLE)
27	R64698	1	Compression Spring	-
28	R64697	1	SHIM	-
29	U12547	1	O-Ring	-
30	-	1	Part 33	( AR48903 NO LONGER AVAILABLE)
31	14H605	2	Nut	0.164"
32	AT59569	1	ELECTRICAL COIL	-
33	12H297	1	Lock Washer	1/4"
34	14H786	1	Nut	1/4"
35	AT59568	1	SOLENOID VALVE	-
36	R47607	2	Pipe Plug	-
37	R26286	4	O-Ring	-
38	R47605	2	SPRING	-
39	R47606	2	Spring	-
40	R31632	1	SHIM	.38 MM (.015")
41	15H558	3	Pipe Plug	1/8"
42	R31698	1	SPRING	(SUB R79134 AND R74418, THIS APPLICATION)
42	R74418	1	Spring	-
43	AT35121	1	Elbow Fitting	-
43	38H1173	1	Adapter Fitting	-
44	T37171	2	PIN	-
45	T24499	2	SPRING	-
46	T70612	2	SET SCREW	(SUB FOR U46118, THIS APPLICATION)
47	R27094	1	Drain Plug	-
48	-	1	Part 53	(SUB AT53877)
48	-	1	Part 54	(SUB AT75902)
49	AT55005	1	DIODE	-
50	288SE	1	SPRING	-
51	12M7084	4	Lock Washer	4.300 MM
52	AT53877	1	VALVE	-
52	AT75902	1	MODULE	-
52	AT85026	1	MODULE	-
53	AT103183	2	WIRING LEAD	(SUB FOR AT70413, THIS APPLICATION)
1A	AU43706	2	PLUG	-
1B	AT75903	2	SWITCH	-

CLOSED CENTER MODULE WITH DIFFERENTIAL LOCK [03B11]
