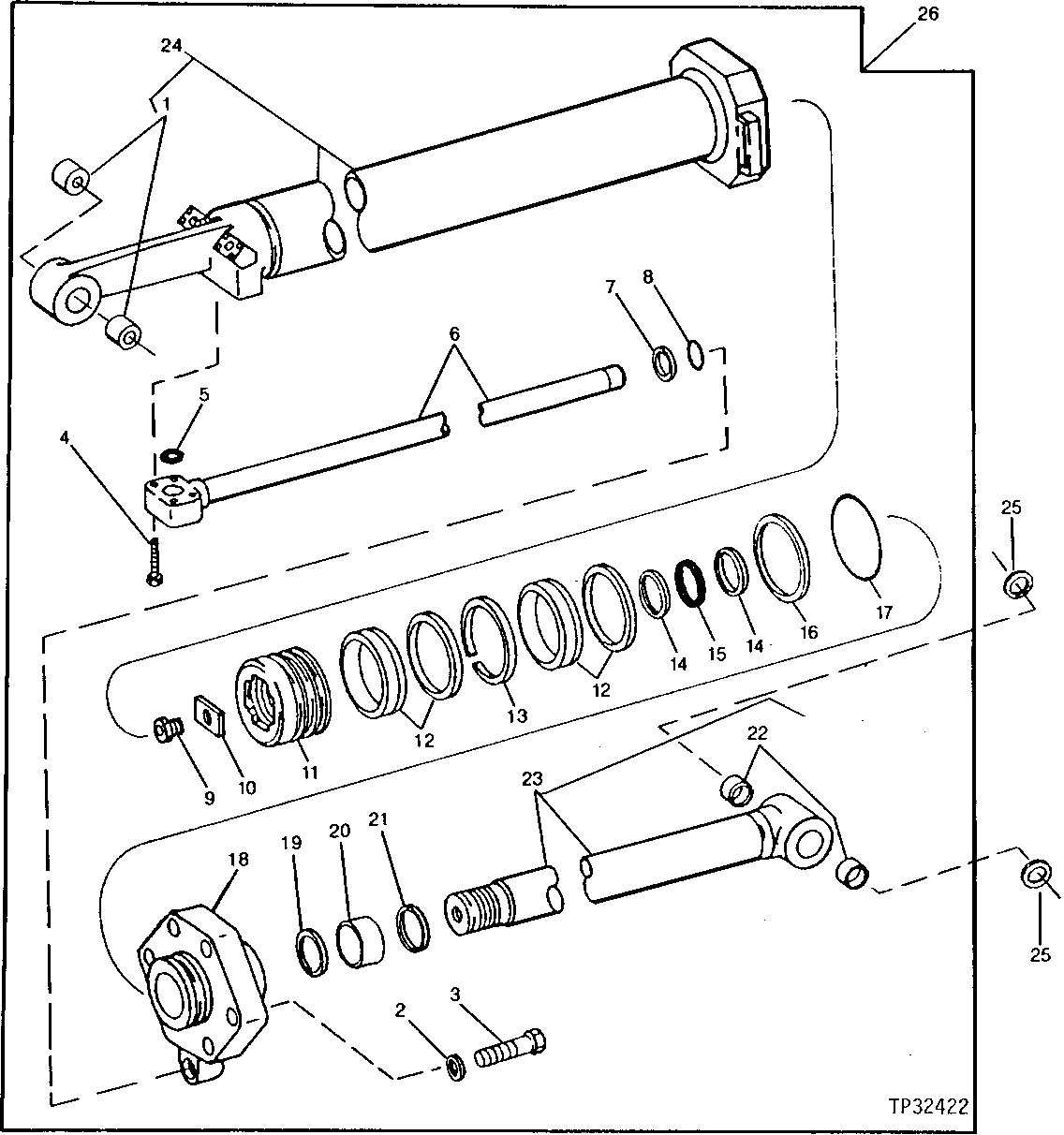

BUCKET CYLINDER (SERIAL NO. -405128) [04E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR96277	1	HYDRAULIC CYLINDER BARREL	-
1	T56510	2	BUSHING	-
2	T30636	6	Washer	-
3	19H3313	6	Cap Screw	1" X 4-1/2"
4	19H1781	4	CAP SCREW	1/2" X 3-1/2"
5	T42421	1	WASHER	(K)
6	AT55611	1	LINE	-
7	T57735	1	BACK-UP RING	(K)
8	U11017	1	O-Ring	(K)
9	T46649	1	ADAPTER FITTING	-
10	T57336	1	STRAP	-
11	R80892	1	PISTON	(SUB FOR T57732) (ALSO ORDER RE11563, (2) R77642, R78807 AND AR95509)
12	AR91556	2	SEAL	(K) (SUB FOR T46623) (SUB AR96234)
12	-	2	Part 14	SEAL, (SUB AR104162)
12	AR104162	2	SEAL	(SUB FOR AR95512)
13	R72663	1	WEAR RING	-
13	T46624	1	WEAR RING	(K) (SUB R72663)
14	N131825	2	RING	(K)
15	R26621	1	O-RING	(K)
16	T46620	1	O-RING	(K)
17	R78807	1	BACK-UP RING	(K) (SUB FOR T46621, THIS APPLICATION)
18	T57734	1	GUIDE	-
19	T48355	1	SEAL	(K)
20	T46640	1	WEAR RING	(K)
21	T46639	1	Seal	(K)
22	T56510	2	BUSHING	(USE WITH AT55609 ROD)
22	R94020	2	BUSHING	(USE WITH RE35454 ROD)
23	RE35454	1	ROD	(SUB FOR AT55609)
24	AT55606	1	HYDRAULIC CYLINDER BARREL	(SUB AR96277)
24	AR96272	1	HYDRAULIC CYLINDER	(SUB AR105664)
25	T102138	2	Seal	(SUB FOR T53732, THIS APPLICATION)
26	AT55605	1	HYDRAULIC CYLINDER	(SUB AR96272)

BUCKET CYLINDER (SERIAL NO. -405128) [04E01]
