BRAKE VALVE HYDRAULICS (SERIAL NO. 511237- ) [03B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

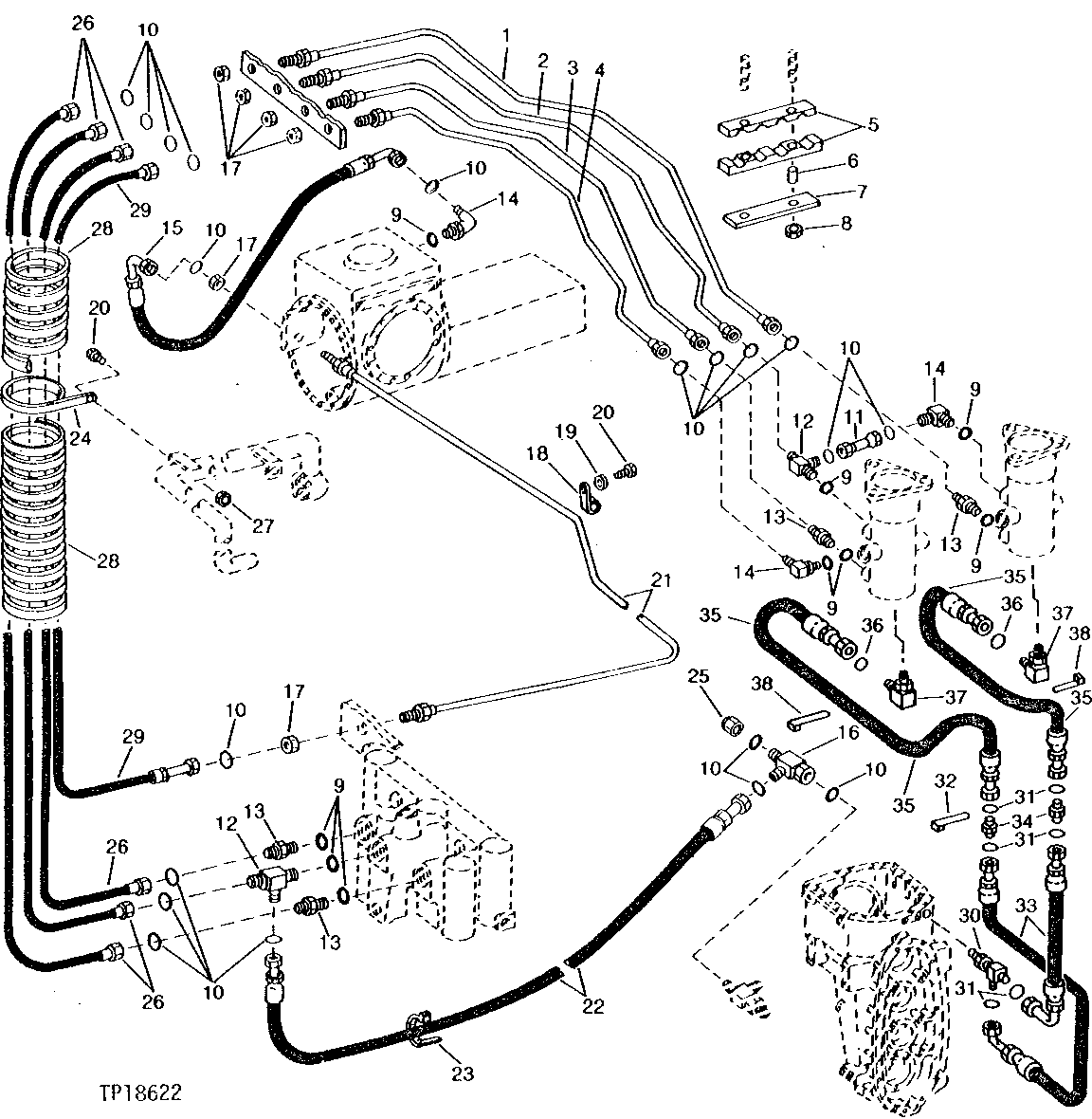

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT85022	1	BRAKE LINE	CAB, FRONT BRAKE PRESSURE
2	AT85023	1	BRAKE LINE	CAB, BRAKE RETURN
3	AT85021	1	BRAKE LINE	CAB, REAR BRAKE PRESSURE
4	AT85013	1	BRAKE LINE	CAB, REAR BRAKE
5	T60064	2	CLAMP	-
6	T60803	2	BUSHING	-
7	T60063	1	STRAP	-
8	14H812	2	NUT	3/8"
9	R26448	9	O-Ring	-
10	T77857	20	O-Ring	-
11	AT85020	1	LINE	BRAKE RETURN
12	AT85009	2	Tee Fitting	-
13	38H1173	4	Adapter Fitting	-
14	38H1314	3	Elbow Fitting	90°
15	AT85015	1	HYDRAULIC HOSE - FABRICATE	13/16" X 775 MM (30-1/2") X 13/16"
16	38H1031	1	Tee Fitting	-
17	T78716	6	Nut	-
18	R46415	1	CLAMP	-
19	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
20	19H1648	2	Cap Screw	3/8" X 3/4"
21	AT85014	1	BRAKE LINE	REAR BRAKE ENGINE FRAME
22	AT85024	1	HYDRAULIC HOSE - FABRICATE	13/16" X 1 475 MM (58") X 13/16"
23	R44302	1	Tie Band	-
24	T15437	1	CLAMP	-
25	38H1416	1	Fitting	WITHOUT DIFFERENTIAL LOCK
26	AT85011	3	HYDRAULIC HOSE - FABRICATE	13/16" X 2 000 MM (78-3/4") X 13/16"
27	E55662	1	Flange Nut	(SUB FOR T55822)
28	T41592	1	GUARD	-
29	AT103702	1	HYDRAULIC HOSE	(SUB FOR AT85011, THIS APPLICATION)
30	38H1392	1	Tee Fitting	-
31	T77613	6	O-Ring	-
32	H77698	1	Tie Band	-
33	AT103537	2	HYDRAULIC HOSE - FABRICATE	11/16" X 508 MM (20") X 11/16"
34	AT84495	2	Check Valve	-
35	AT103498	2	HYDRAULIC HOSE - FABRICATE	9/16" X 927 MM (36-1/2") X 11/16"
36	T77814	2	O-Ring	-
37	38H1319	2	Elbow Fitting	-
38	R44302	2	Tie Band	-
