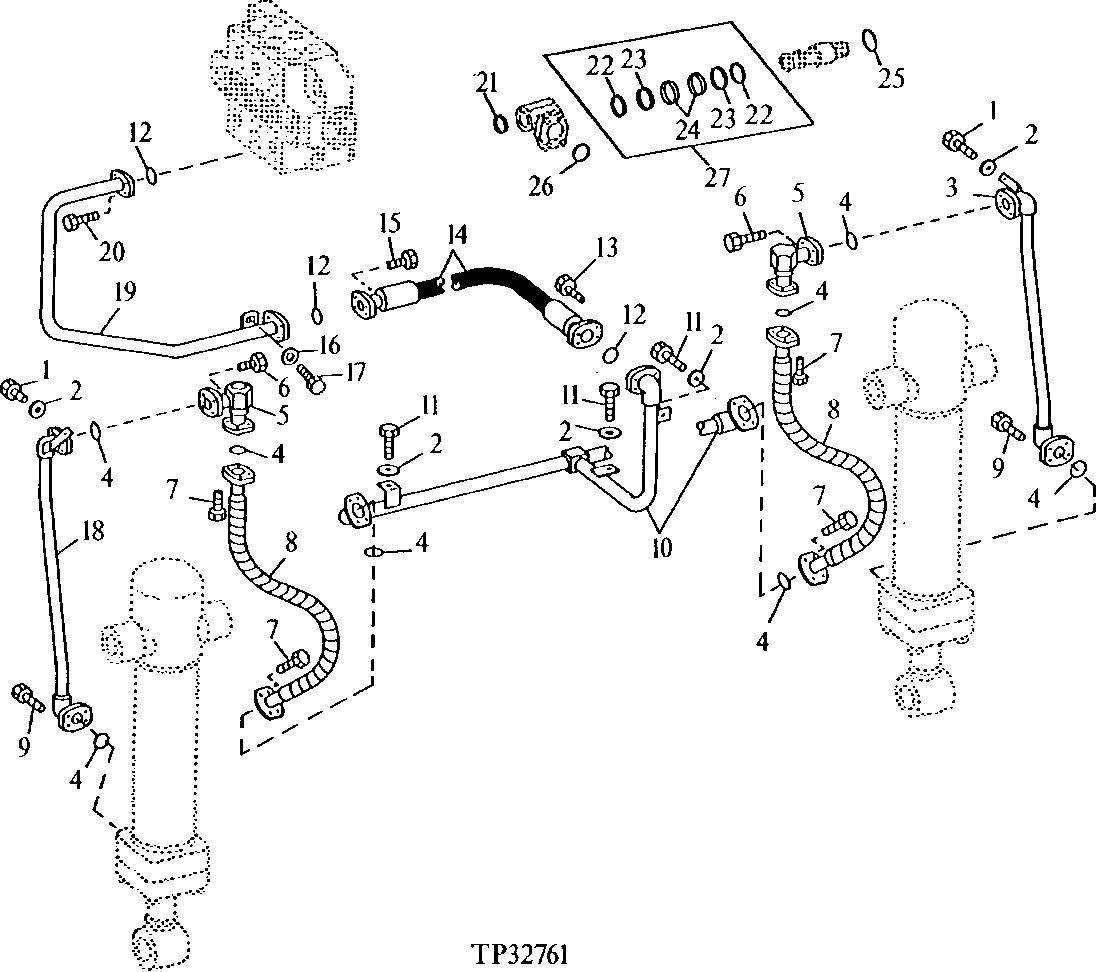

BOOM CYLINDER RETRACT HYDRAULICS [04D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	24H1682	2	Washer	13/32" X 7/8" X 0.120"
3	AT84704	1	OIL LINE	(SUB FOR AT53638 AND AT70835)
4	N131838	8	O-Ring	-
5	AT53642	2	FLANGE FITTING	(CONTAINS AT135775)
6	19H1773	8	CAP SCREW	7/16" X 1-1/8"
7	19H3205	16	Cap Screw	7/16" X 1-1/2"
8	AT70838	2	HYDRAULIC HOSE - FABRICATE	1-1/4" X 790 MM (31") X 1-1/4" 680 MM LONG (1-1/4" X 27") (SUB FOR AT53643)
9	19H2921	8	Screw	7/16" X 1-1/2", SOCKET HEAD
10	AT84691	1	OIL LINE	(SUB FOR AT53644 AND AT70831)
11	19H2676	3	Cap Screw	3/8" X 1"
12	T42421	3	WASHER	-
13	19H2473	4	Cap Screw	1/2" X 1-3/4"
14	-	1	Part 14	1-1/2" X 1 473 MM (58") X 1-1/2", (SUB FOR AT53637 AND AT70840) (AT84696 NO LONGER AVAILABLE)
15	19H1777	4	Cap Screw	1/2" X 1-3/4"
16	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
17	19H2898	1	Cap Screw	1/2" X 1-1/4"
18	AT84705	1	OIL LINE	(SUB FOR AT53641 AND AT70836)
19	AT84698	1	OIL LINE	(SUB FOR AT53634 AND AT70842)
20	19H1815	4	Cap Screw	1/2" X 1-1/4"
21	U11030	1	Snap Ring	-
22	T22827	2	O-Ring	-
23	R73101	2	Washer	-
24	R42763	2	O-RING	-
25	U13639	1	O-Ring	-
26	N131838	2	O-Ring	-
27	AT135775	1	KIT	SWIVEL REPAIR, (SUB FOR AT55689)

BOOM CYLINDER RETRACT HYDRAULICS [04D09]
