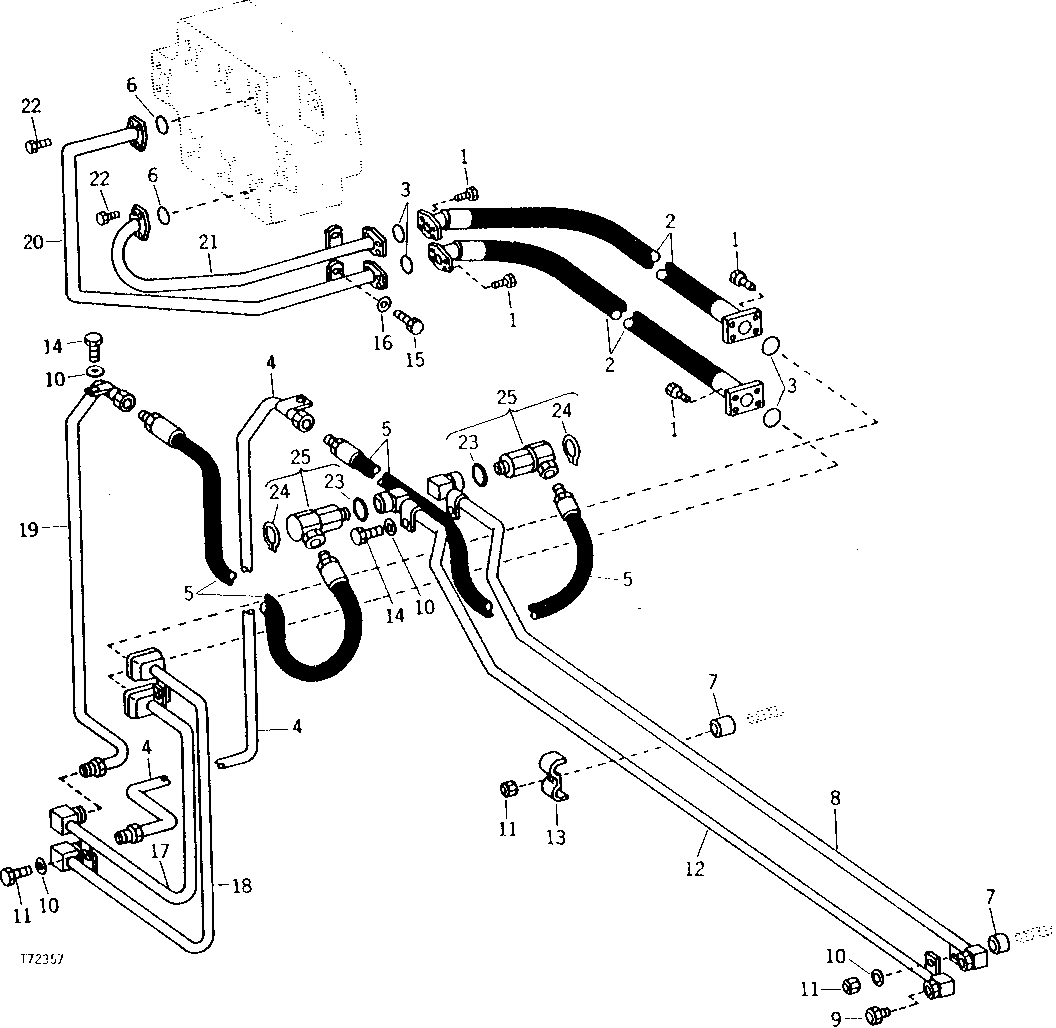

AUXILIARY HYDRAULICS (SERIAL NO. -509366) [04E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2633	16	Cap Screw	3/8" X 1-1/2"
2	AT55676	2	HYDRAULIC HOSE	1" X 1 473 MM (58") X 1", (SUB AT70845)
2	AT70845	2	HYDRAULIC HOSE - FABRICATE	1" X 1 473 MM (58") X 1"
3	T78313	4	O-Ring	(SUB FOR H61355)
4	AT55679	1	OIL LINE	-
5	AT55681	2	HYDRAULIC HOSE - FABRICATE	1" X 838 MM (33") X 1"
6	T42421	2	WASHER	-
7	28H1576	2	Bushing	3/4" X .875"
8	AT55683	1	OIL LINE	-
9	R37202	2	Fitting	-
10	24H1682	4	Washer	13/32" X 7/8" X 0.120"
11	T11234	2	Lock Nut	-
12	AT55682	1	OIL LINE	-
13	T40705	1	Clamp	-
14	19H2284	4	Cap Screw	3/8" X 7/8"
15	19H3472	2	Cap Screw	5/8" X 9-3/4"
16	24H1341	2	Washer	17/32" X 15/16" X 0.060"
17	AT55678	1	LINE	(SUB AT70847)
17	AT70847	1	OIL LINE	-
18	AT55677	1	LINE	-
19	AT55680	1	OIL LINE	-
20	AT55675	1	TUBE	(SUB AT70846)
20	AT70846	1	LINE	-
21	AT55674	1	TUBE	(SUB AT70848)
21	AT70848	1	LINE	-
22	19H2898	8	Cap Screw	1/2" X 1-1/4"
23	U12547	2	O-Ring	(SUB FOR (2) F3171R)
24	T33282	2	Snap Ring	-
25	AT28147	2	ELBOW FITTING	-
25	AT63109	1	KIT	(REPAIRS FOR AT28147) (SUB FOR AT32499)

AUXILIARY HYDRAULICS (SERIAL NO. -509366) [04E14]
