Открытый узел

Wiring Harness, Driver information (CONSOLE) (903000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8859	2	Elec.Connect Locking Device	-
1	57M8860	1	Elec.Connect Locking Device	-
1	57M8861	1	Elec. Connector Terminal	Cavity Y
1	57M8862	6	Elec. Connector Terminal	Cavity A, B, C, E, F, Z
1	57M8863	13	Elec. Connector Terminal	Cavity D, G, H, J, K, L, M, P, R, S, T, V, X
1	57M8857	1	Elec. Connector Housing	Cab Harness Interconnect 2
2	57M8911	7	Elec. Connector Terminal	Cavity A, N, P, U, V, W, Y
2	57M8913	7	Elec. Connector Terminal	Cavity E, F, H, J, K, L, M
2	57M8912	6	Elec. Connector Terminal	Cavity B, C, D, R, S, T
2	57M8860	1	Elec.Connect Locking Device	-
2	57M8859	2	Elec.Connect Locking Device	-
2	57M8858	1	Elec. Connector Housing	Cab Harness Interconnect 1
3	57M7256	1	Elec. Connector Housing	Warning Horn
3	57M7289	1	Elec.Connect Locking Device	-
3	57M7252	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M7839	1	Electrical Connector Assy	Implement CAN
4	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
4	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
4	57M7469	1	Electrical Connector Assy	-
5	57M7260	1	Elec. Connector Housing	Tractor CAN - Active Terminating Device
5	57M7291	1	Electrical Connector Assy	-
5	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
5	57M7258	2	Elec. Connector Seal	Cavity A, C
5	57M9215	4	Elec. Connector Seal	Cavity B, D, E, F
6	R78054	1	Electrical Connector Assy	Convenience Outlet
6	R78061	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9218	3	Elec. Connector Seal	Cavity A, B, C
7	57M7713	1	Electrical Connector Assy	Inverter Backlighting
7	57M7718	1	Electrical Connector Assy	-
7	57M7548	2	Elec. Connector Terminal	Cavity 1, 2
8	Z70791	3	Elec. Connector Terminal	Cavity 3, 4, 8
8	57M8808	5	Elec. Connector Terminal	Cavity 1, 2, 5, 6, 7
8	57M8802	1	Elec. Connector Housing	Infocenter Display
8	57M8783	1	Elec. Connector Housing	-
9	57M7256	1	Elec. Connector Housing	To ATC Harness
9	57M7289	1	Elec.Connect Locking Device	-
10	RE46735	1	Electrical Connector Assy	Front Wiper Switch
11	57M8758	1	Elec. Connector Housing	Road Lights
11	57M8757	4	Elec.Connect Locking Device	-
11	57M8759	1	Elec.Connect Locking Device	-
11	57M7511	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, B
12	57M7791	1	Elec. Connector Housing	Field Light Switch
12	57M7730	2	Electrical Connector Assy	-
12	57M7501	5	Elec. Connector Terminal	Cavity A, B, C, D, E
13	57M7790	1	Electrical Connector Assy	Hazard Switch
13	57M7729	1	Electrical Connector Assy	-
13	57M7500	2	Elec. Connector Terminal	Cavity B, C
14	Z70791	2	Elec. Connector Terminal	Cavity 1, 6
14	57M7427	2	Elec. Connector Terminal	Cavity 2, 5
14	57M7714	1	Electrical Connector Assy	SCV Set - Up Panel
14	57M7719	1	Electrical Connector Assy	-
15	57M7793	1	Elec. Connector Housing	MFWD Switch
15	57M7732	2	Electrical Connector Assy	-
15	57M7501	5	Elec. Connector Terminal	Cavity A, B, C, G, H
16	57M7790	1	Electrical Connector Assy	Rear Wiper Switch
16	57M7729	1	Electrical Connector Assy	-
17	57M8809	1	Elec. Connector Terminal	-
18	57M7730	2	Electrical Connector Assy	-
18	57M7501	5	Elec. Connector Terminal	Cavity A, B, C, D, E
18	57M7791	1	Elec. Connector Housing	PTO Remote Select SW
19	57M8798	1	Elec. Connector Terminal	-
20	57M7792	1	Electrical Connector Assy	EH Secondary Brake SW
20	57M7731	1	Electrical Connector Assy	-
21	57M9183	1	Elec. Connector Housing	Service Advisor
21	N282069	2	Elec. Connector Terminal	Cavity A, B
21	57M8164	4	Elec. Connector Terminal	Cavity C, D, H, J
22	RE227765	1	Wiring Harness	-

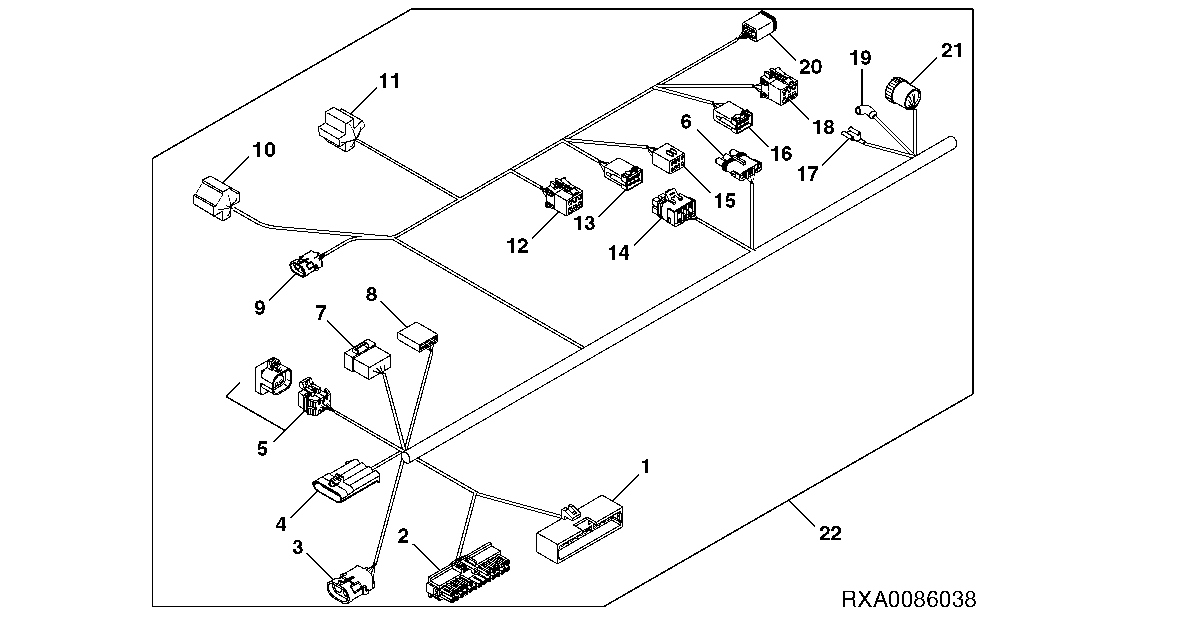

Wiring Harness, Driver information (CONSOLE) (903000 - )
