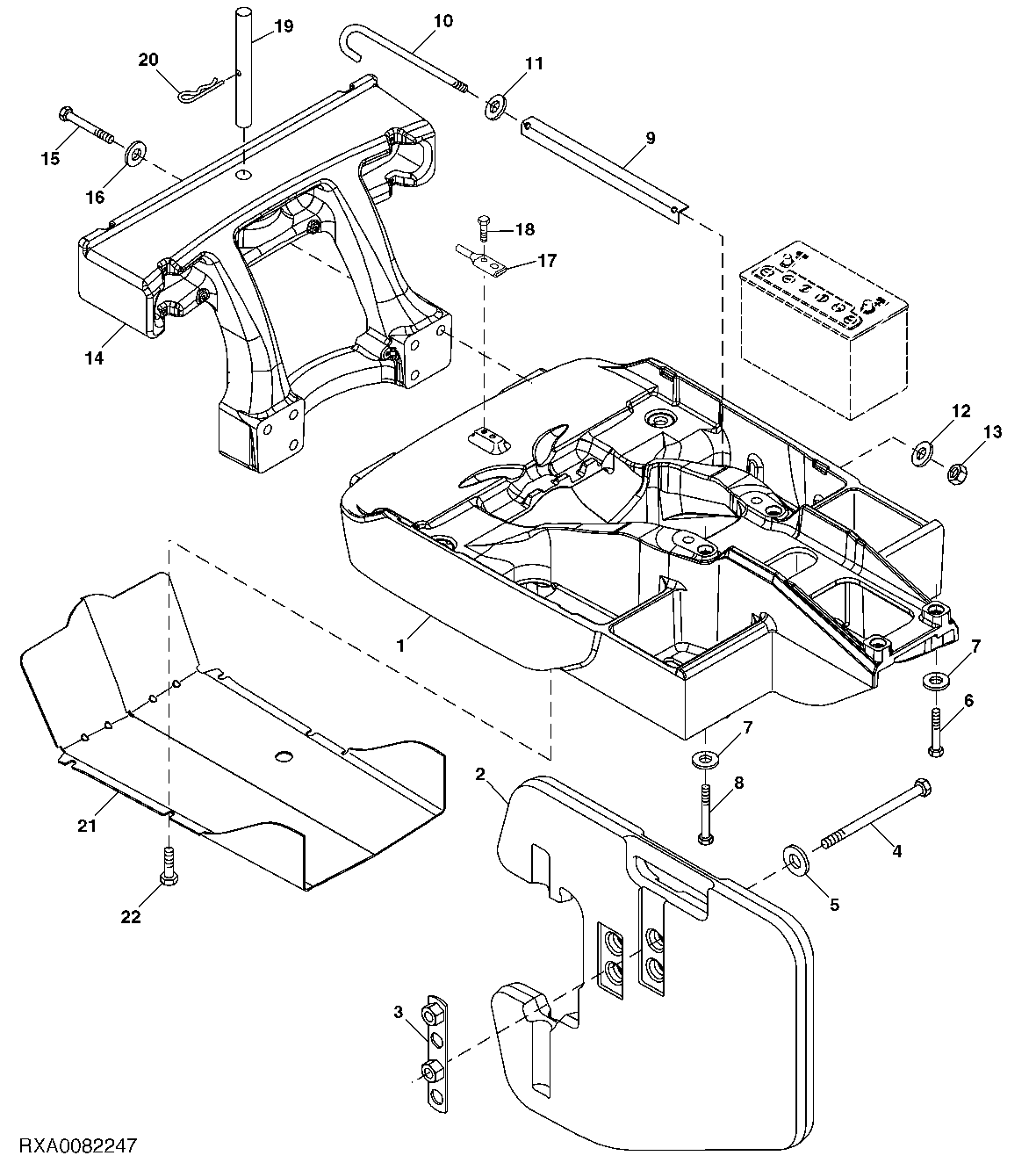

Frame Weights / Front Weight Support / Front Support

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R242153	1	Support	-
2	R127764	1	Counterweight	43 kg / Weight, Order Through Waterloo Tractor Weight Program
3	AR68801	2	Retainer	-
4	19H1926	2	Cap Screw	(4 WEIGHTS) 5/8" X 4-3/4"
4	08H4225	2	Cap Screw	(8, 12 WEIGHTS) 5/8" X 11-1/2"
4	R161069	2	Cap Screw	(16, 22 WEIGHTS)
4	08H4248	2	Cap Screw	(10 WEIGHTS) 5/8" X 8-1/2"
5	24M7241	2	Washer	17 X 34 X 4 mm
6	19M9134	2	Cap Screw	M20 X 80, HS=10.9
7	24M7242	6	Washer	21.400 X 42 X 5 mm
8	19M9139	4	Cap Screw	M20 X 130, HS=10.9
9	R119989	2	Angle	-
10	R192571	4	Hook Bolt	-
11	24M7088	4	Washer	6.600 X 12 X 1.600 mm
12	24M7250	4	Washer	6.400 X 17 X 3 mm
13	14M7298	4	Flange Nut	M8
14	R242154	1	Support	ORDER R548745
14	R567402	1	Support	(ORDER THROUGH WATERLOO TRACTOR WEIGHT PROGRAM) SUB FOR R548745
15	19M9141	6	Cap Screw	M20 X 150, HS=10.9
16	24M7242	6	Washer	21.400 X 42 X 5 mm
17	R250316	1	Striker	-
18	19M7784	2	Screw	M10 X 20
19	L169060	1	Pin Fastener	SUB FOR APPL T32146
20	L12491	1	Spring Locking Pin	-
21	R248993	1	Deflector	-
22	19M7785	4	Screw	M10 X 25, HS=10.9

Frame Weights / Front Weight Support / Front Support
