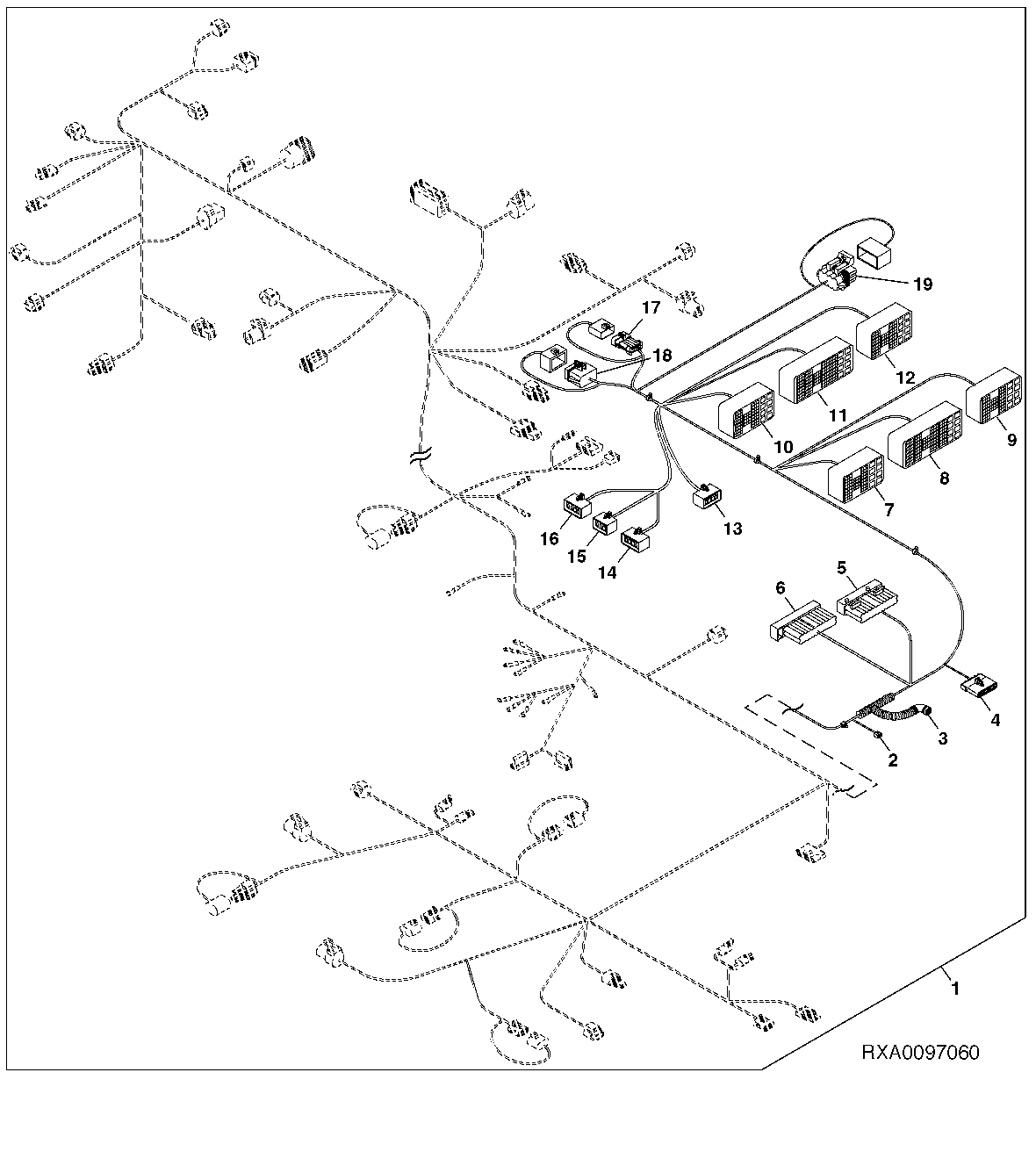

Chassis Wiring Harness Connectors (3/3) (Ev) (Ils)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE250959	1	Chassis Wiring Harness	(SUB FOR RE211491)
2	57M7305	1	Elec. Connector Housing	TRANSMISSION HARNESS
2	57M7307	1	Electrical Connector Assy	-
3	57M8795	1	Elec. Connector Housing	CAB CONNECTION
4	57M7301	1	Elec. Connector Housing	HITCH SWITCH AND IMPLEMENT GROUND
4	57M7308	1	Elec. Connector Accessory	-
5	57M8070	1	Elec. Connector Housing	TRANSMISSION HARNESS
5	57M8943	1	Elec.Connect Locking Device	-
5	57M8076	1	Elec. Connector Terminal	-
6	57M8944	1	Elec. Connector Housing	TRANSMISSION HARNESS
6	57M8943	1	Elec.Connect Locking Device	-
7	57M8520	1	Elec. Connector Housing	HYDRAULIC CONTROLLER J1
7	57M8528	1	Electrical Connector Cap	-
8	57M8527	1	Elec. Connector Housing	HYDRAULIC CONTROLLER J2
8	57M8529	1	Electrical Connector Cap	-
9	57M8519	1	Elec. Connector Housing	HYDRAULIC CONTROLLER J3
9	57M8528	1	Electrical Connector Cap	-
10	57M8528	1	Electrical Connector Cap	-
10	57M8523	1	Elec. Connector Housing	ENGINE CONTROL UNIT J3 CONTROLLER
11	57M8527	1	Elec. Connector Housing	ENGINE CONTROL UNIT J2 CONTROLLER
11	57M8529	1	Electrical Connector Cap	-
12	57M8519	1	Elec. Connector Housing	ENGINE CONTROL UNIT J1 CONTROLLER
12	57M8528	1	Electrical Connector Cap	-
13	57M7262	1	Elec. Connector Housing	HITCH FOLLOWING
13	57M8907	1	Elec.Connect Locking Device	-
14	57M7262	1	Elec. Connector Housing	SELECTIVE CONTROL VALVES 2 & 3
14	57M8907	1	Elec.Connect Locking Device	-
15	57M7261	1	Elec. Connector Housing	HITCH AND SELECTIVE CONTROL VALVE 1
15	57M7296	1	Elec. Connector Accessory	-
16	57M7803	1	Elec. Connector Housing	SELECTIVE CONTROL VALVES 4 & 5
16	57M8907	1	Elec.Connect Locking Device	-
17	57M7284	1	Elec. Connector Housing	HYS HARNESS
17	57M7290	1	Elec. Connector Accessory	-
18	57M8416	1	Elec. Connector Housing	AUTOTRAC HARNESS
18	57M7469	1	Electrical Connector Assy	-
19	57M7261	1	Elec. Connector Housing	-
19	57M7290	1	Elec. Connector Accessory	-

Chassis Wiring Harness Connectors (3/3) (Ev) (Ils)

Нет текстового описания
