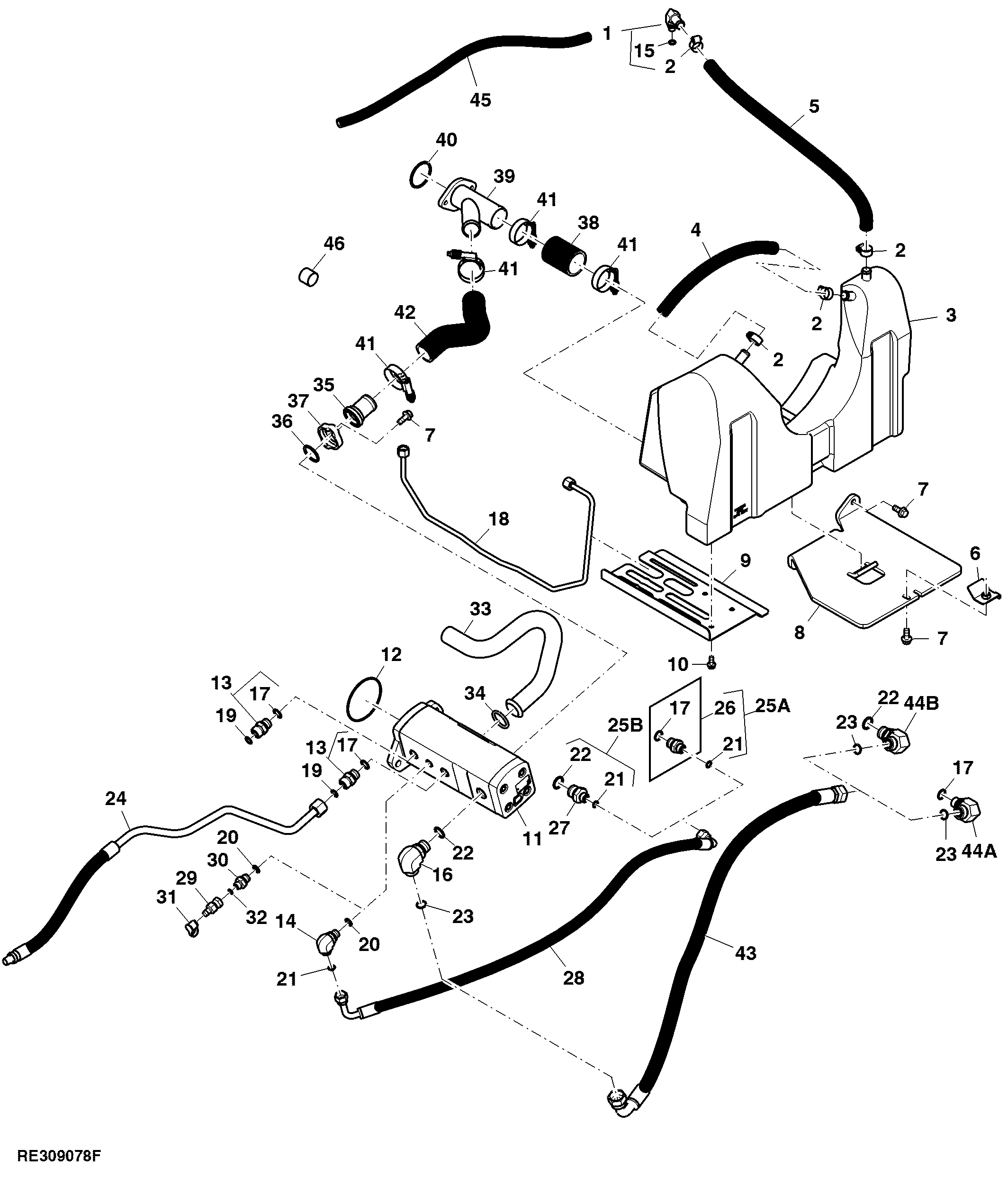

Oil Take Out Pump Kit - Transmission Pump, IVT™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE246866	1	Elbow Fitting	-
2	TY22467	4	Clamp	-
3	R565750	1	Hydraulic Reservoir	SUB FOR R255795
4	R246900	1	Hydraulic Hose	-
5	R246901	1	Hydraulic Hose	-
6	RE255802	1	Clamp	-
7	19M7785	6	Screw	M10 X 25
8	R255801	1	Plate	-
9	R255799	1	Shield	-
10	19M7866	3	Screw	M8 X 20
11	RE302046	1	Pump	-
12	T42302	1	O-Ring	-
13	38H5004	2	Adapter Fitting	-
14	38H5017	1	Elbow Fitting	USE WITH RE305354
15	51M7041	1	O-Ring	11.300 X 2.200 mm
16	38H5019	1	Elbow Fitting	-
17	51M7045	4	O-Ring	19.300 X 2.200 mm
18	RE308976	1	Oil Line	-
19	T77932	2	O-Ring	-
20	51M7043	2	O-Ring	15.300 X 2.200 mm
21	T77857	3	O-Ring	-
22	51M7047	3	O-Ring	23.600 X 2.900 mm
23	T77858	3	O-Ring	-
24	RE305358	1	Oil Line	-
26	38H5076	1	Adapter Fitting	-
27	38H5181	1	Adapter Fitting	-
28	RE305354	1	Hydraulic Hose	-
29	RE60701	1	Diagnostic Coupling	-
30	38H5012	1	Adapter Fitting	-
31	R77175	1	Cover	-
32	T77613	1	O-Ring	-
33	RE305359	1	Oil Line	-
34	A4540R	1	O-Ring	-
35	RE306392	1	Tube	-
36	U10289	1	O-Ring	-
37	R175113	1	Flange Fitting	-
38	RE305357	1	Hydraulic Hose	-
39	RE305360	1	Flange Fitting	-
40	F1870R	1	O-Ring	-
41	RE56098	4	Clamp	-
42	RE305356	1	Hydraulic Hose	-
43	RE311626	1	Hydraulic Hose	-
45	R309079	1	Hydraulic Hose	-
46	R313122	1	Orifice	-
25A	61M5076	1	Adapter Fitting	-
25B	61M5181	1	Adapter Fitting	-
44A	38H5066	1	Elbow Fitting	-
44B	38H5019	1	Elbow Fitting	-

Oil Take Out Pump Kit - Transmission Pump, IVT™

Нет текстового описания
