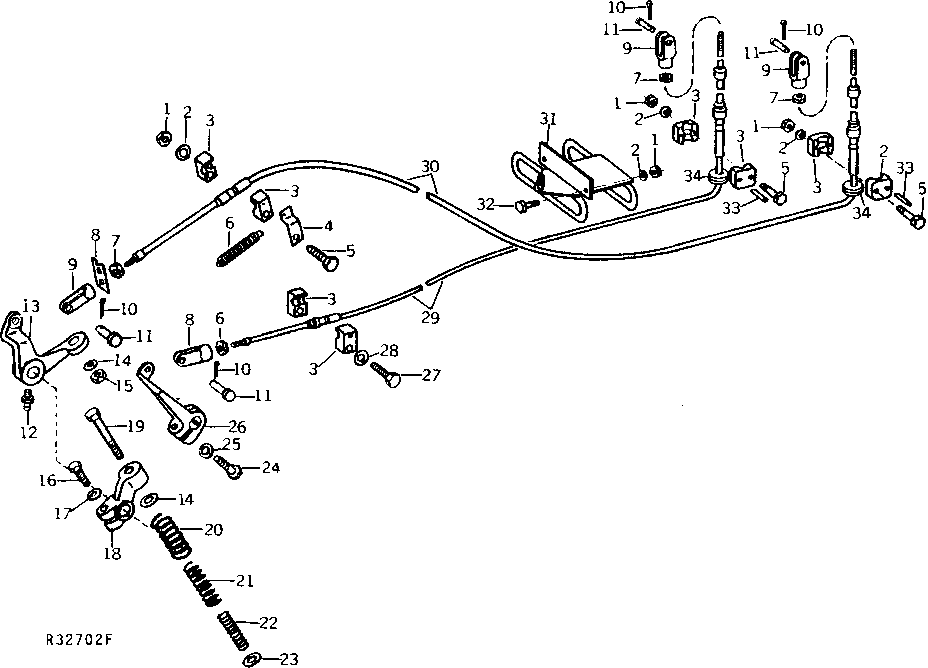

Transmission Shifter Control Cables and Arms (002755 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1076	5	Nut	3/8"
2	12H304	5	Lock Washer	3/8"
3	R47806	8	Clamp	-
4	R59354	1	Bracket	-
5	19H3181	3	CAP SCREW	3/8" X 2"
6	R59352	1	Spring	-
7	14H774	4	Nut	3/8"
8	R59353	1	Strap	(NLA)
9	T13606	4	Yoke	-
10	11M7081	4	Cotter Pin	2.500 X 20 mm
11	R65563	4	Pin Fastener	(SUB FOR C1067R)
12	JD7759	1	Lubrication Fitting	-
13	R64003	1	Arm	RANGE SELECTOR (SUB FOR R62361)
14	R57696	2	Washer	(SUB FOR R1870R)
15	T11234	1	Lock Nut	-
16	19H1800	1	Cap Screw	3/8" X 1-1/2"
17	12H304	1	Lock Washer	3/8"
18	R58873	1	Arm	PARK RELEASE
19	19H2228	1	Cap Screw	3/8" X 4"
20	R26637	1	SPRING	-
21	R26638	1	SPRING	-
22	R26369	1	SPRING	-
23	24H1219	1	Washer	7/16" X 1" X 0.083"
24	19H1800	1	Cap Screw	3/8" X 1-1/2"
25	12H304	1	Lock Washer	3/8"
26	R57760	1	Arm	SPEED SELECTOR
27	19H3181	1	CAP SCREW	3/8" X 2"
28	12H304	1	Lock Washer	3/8"
29	R48720	1	Seal	(SLEEVE TO INNER MEMBER INPUT END) (SUB FOR R48719)
29	R48720	1	Seal	(SLEEVE TO INNER MEMBER OUTPUT END)
29	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
29	AR76746	1	Push Pull Cable	(SPEED SELECTOR)
30	AR76747	1	Push Pull Cable	(RANGE SELECTOR)
30	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
30	R48720	1	Seal	(SLEEVE TO INNER MEMBER INPUT END) (SUB FOR R48719)
30	R48720	1	Seal	(SLEEVE TO INNER MEMBER OUTPUT END)
31	AR78349	1	Guide	-
32	19H1731	2	Cap Screw	3/8" X 1"
33	34H254	2	Spring Pin	1/8" X 1-1/2"
34	R62356	2	Grommet	-

Transmission Shifter Control Cables and Arms (002755 - )
