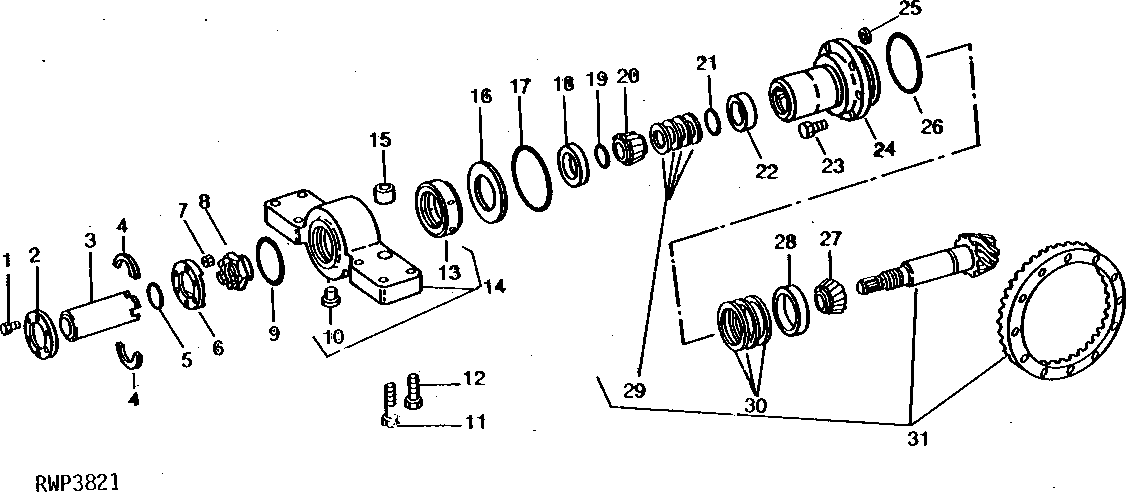

Front Differential Drive And Support Assembly

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1800	6	Cap Screw	3/8" X 1-1/2"
2	R62784	1	Retainer	-
3	R57251	1	Splined Coupling	-
4	R62785	2	Washer	-
5	U11017	1	O-Ring	-
6	R62783	1	Retainer	-
7	T11234	6	Lock Nut	-
8	R57051	1	Nut	-
9	R64075	1	O-Ring	USE WITH AR68471
9	R68543	1	O-Ring	USE WITH AR89741
10	-	1	Part 11	-
11	19H2693	2	Cap Screw	7/8" X 4-1/4"
11	19H2090	2	CAP SCREW	7/8" X 3-1/2"
12	19H2113	4	Cap Screw	3/4" X 3-1/4"
13	R78266	1	Bushing	SUB FOR R58696
14	AR68471	1	Support	MARKED R57156 OR R70308; SUB AR103874 AND (4) 19H1782
14	AR89741	1	Support	MARKED R68633 OR R70308; SUB AR103874 AND (4) 19H1782
15	T30008	2	Bushing	-
16	R37439	1	WASHER	-
17	R64074	1	O-Ring	USE WITH AR68471
17	R68544	1	O-Ring	USE WITH AR89741
18	AR82993	1	Seal	-
19	B3690R	1	O-Ring	-
20	JD9068	1	Bearing Cone	-
21	R58479	1	Washer	-
22	JD8255	1	Bearing Cup	-
23	R46162	6	SCREW	-
24	R57759	1	Bearing Housing W/O Bearing	SUB R72849, R68543 AND R68544
24	R72849	1	Bearing Housing W/O Bearing	-
25	R26149	1	PACKING	-
26	R27796	1	O-Ring	-
27	JD9004	1	BEARING CONE	SUB JD10377
28	JD8280	1	Bearing Cup	-
29	R58255	1	Shim	TK = 0.18 mm (0.007")
29	R58256	1	Shim	TK = 0.25 mm (0.010")
29	R58257	1	Shim	TK = 0.31 mm (0.012")
29	R58258	1	Shim	TK = 0.38 mm (0.015")
30	R35365	1	Shim	TK = 0.08 mm (0.003")
30	R35366	1	Shim	TK = 0.13 mm (0.005")
30	R35367	1	Shim	TK = 0.25 mm (0.010")
31	AR99193	1	Gear	MATCHED SET; MARKED R51973 AND R57250SUB FOR AR71695; ORDER COMPONENTS
31	AR68591	1	Gear	INCLUDES R51973 AND R57250

Front Differential Drive And Support Assembly
