Wiring Harness, e23™ Transmission ( - 100464)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE583790	1	Chassis Wiring Harness	-
2	19M7865	1	Screw	M8 X 16
3	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3,4, 5
3	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 41, 42, 53
3	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 14, 19, 22, 23, 24, 27, 28, 31, 32, 33, 35, 39, 40, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52
3	57M10366	1	Elec. Connector Housing	Rear Chassis Control Unit Connector A570-3
4	57M10401	1	Elec. Connector Accessory	-
5	57M8281	1	Elec. Connector Housing	Chassis to Transmission Harness Interconnect 1 XX330
5	RWA11098	1	Repair Wire Assembly	Cavity B, C, E, F, G, K, L, M, N, P, R
5	RWA11103	1	Repair Wire Assembly	Cavity A
6	57M11996	1	Elec. Connector Accessory	-
7	57M8910	1	Clip	-
8	57M9210	1	Elec. Connector Housing	Forward High Proportional Solenoid Vavle Y642
8	RWA11097	1	Repair Wire Assembly	Cavity A, B
9	57M9210	1	Elec. Connector Housing	S2 Proportional Solenoid Valve Y643
9	RWA11097	1	Repair Wire Assembly	Cavity A, B
10	57M9210	1	Elec. Connector Housing	S1 Proportional Solenoid Valve Y645
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9210	1	Elec. Connector Housing	S3 Proportional Solenoid Valve Y646
11	RWA11097	1	Repair Wire Assembly	Cavity A, B
12	57M9210	1	Elec. Connector Housing	S4 Proportional Solenoid Valve Y644
12	RWA11097	1	Repair Wire Assembly	Cavity A, B
13	57M9210	1	Elec. Connector Housing	R3 Proportional Solenoid Valve Y639
13	RWA11097	1	Repair Wire Assembly	Cavity A, B
14	57M8625	1	Elec. Connector Housing	Park Brake Pressure Sensor B707
14	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
15	57M8924	1	Elec. Connector Housing	Park Sump Block Solenoid Y670
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M8924	1	Elec. Connector Housing	Park Brake Supply Solenoid Y633
16	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	57M8924	1	Elec. Connector Housing	MFWD Solenoid Y665
18	57M8625	1	Elec. Connector Housing	R2 Clutch Pressure B640
18	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
19	57M8924	1	Elec. Connector Housing	R2 Proportional Solenoid Valve Y640
19	RWA11097	1	Repair Wire Assembly	Cavity A, B
20	57M8924	1	Elec. Connector Housing	R1 Proportional Solenoid Valve Y628
20	RWA11097	1	Repair Wire Assembly	Cavity A, B
21	57M8625	1	Elec. Connector Housing	System 2 Pressure Sensor B727
21	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M9782	1	Elec. Connector Housing	Lube Pressure Sensor B721
22	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
23	57M8924	1	Elec. Connector Housing	Lube Priority Solenoid Valve Y635
23	RWA11097	1	Repair Wire Assembly	Cavity A, B
24	57M8924	1	Elec. Connector Housing	Hydraulic Oil Cooler Solenoid Y624
24	RWA11097	1	Repair Wire Assembly	Cavity A, B
25	RWA11097	1	Repair Wire Assembly	Cavity A, B
25	57M9210	1	Elec. Connector Housing	Reverse Proportional Solenoid Valve Y673
26	57M9210	1	Elec. Connector Housing	Forward Low Proportional Solenoid Valve Y641
26	RWA11097	1	Repair Wire Assembly	Cavity A, B
27	57M9775	1	Elec. Connector Housing	Counter Shaft C Speed Sensor B548
27	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
27	57M10155	1	Elec. Connector Accessory	-
28	57M9775	1	Elec. Connector Housing	Counter Shaft B Speed Sensor B549
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
29	57M8633	8	Elec. Connector Accessory	-
30	57M11380	7	Elec. Connector Accessory	-
31	RE258807	15	Tie Band	-
32	57M12055	2	Elec. Connector Accessory	-
33	T102934	1	Clamp	-
34	57M11405	3	Elec. Connector Accessory	-
35	57M9847	1	Elec. Connector Accessory	-
36	57M10421	1	Elec. Connector Accessory	-

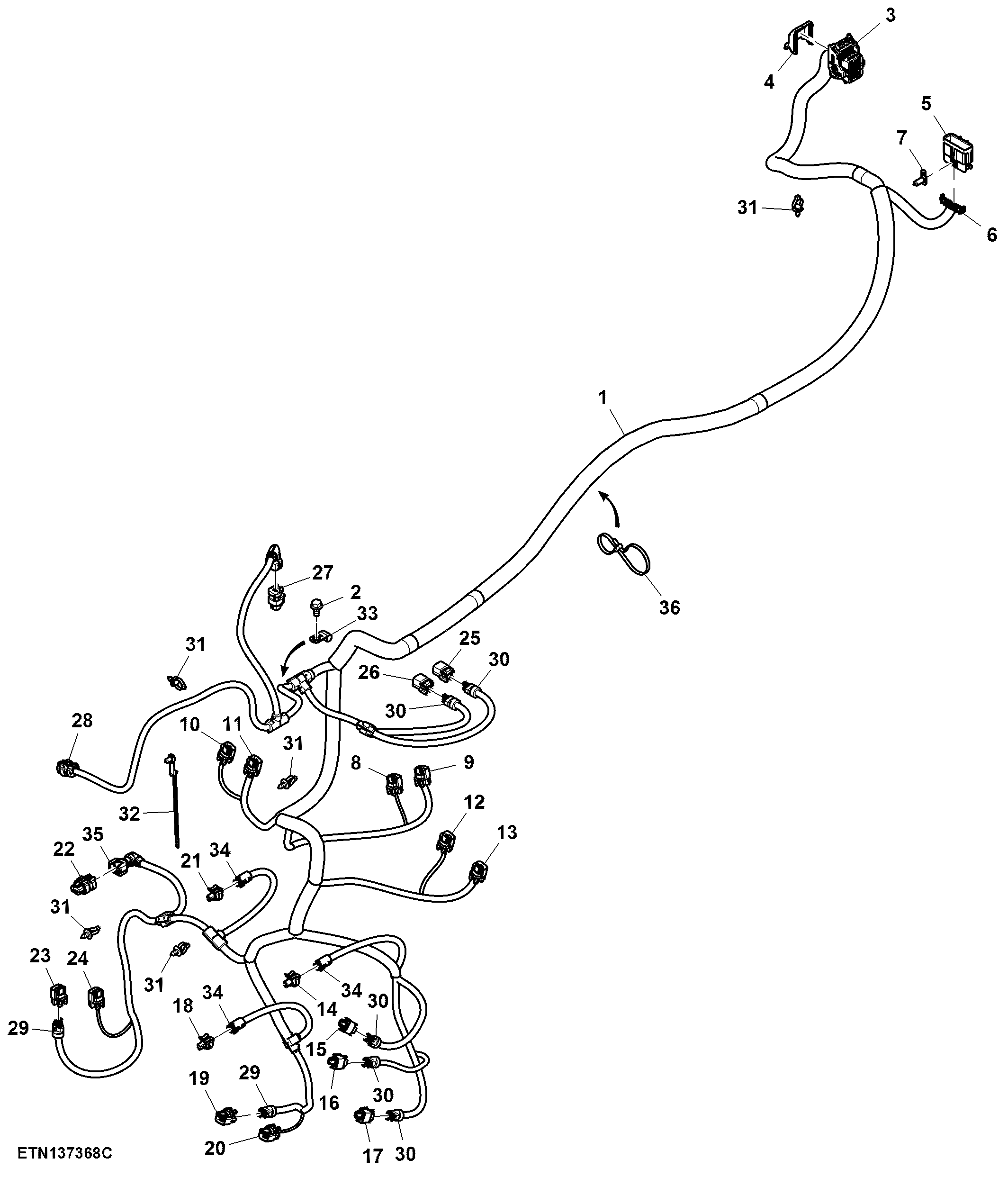

Wiring Harness, e23™ Transmission ( - 100464)
