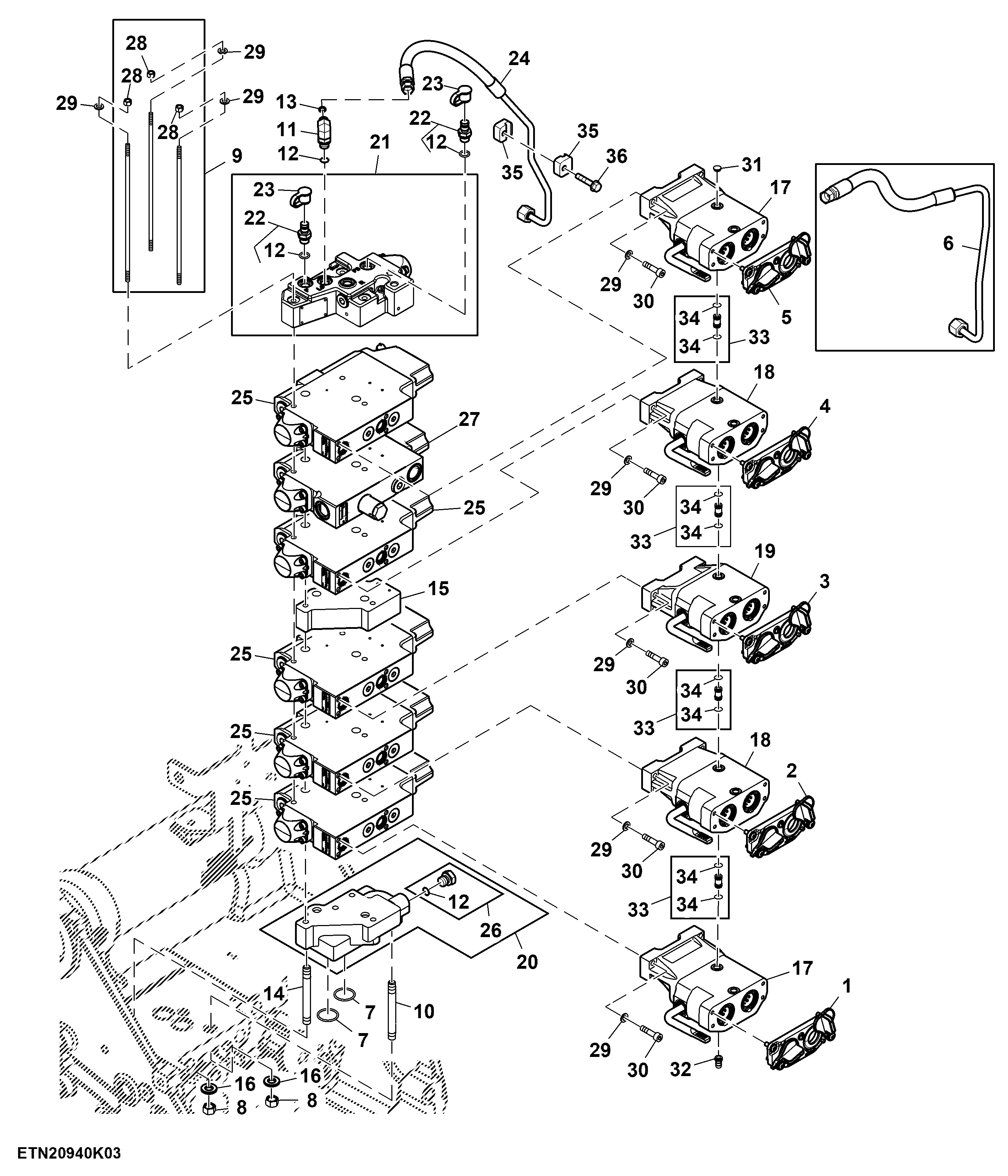

Selective Control Valve, W/ Hitch, 5 Rear SCV, Standard Flow ( - 100428)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574941	1	Cover	Number I, Green, SCV Coupler
2	RE574660	1	Cover	Number II, Blue, SCV Coupler
3	RE574942	1	Cover	Number III, Brown, SCV Coupler
4	RE574943	1	Cover	Number IV, Black, SCV Coupler
5	RE574944	1	Cover	Number V, Violet, SCV Coupler
6	RE561937	1	Hydraulic Hose	SCV Load Sense ORDER RE581740; ALSO ORDER (2) H127589 AND 19M7798
7	T122075	2	O-Ring	-
8	14M7275	2	Nut	M12
9	RE283444	1	Stud Kit	-
10	L169038	1	Stud	-
11	38H5025	1	Elbow Fitting	-
12	51M7041	5	O-Ring	11.300 X 2.200 mm
13	T77814	1	O-Ring	-
14	42M7062	1	Stud	-
15	RE283453	1	Manifold	-
16	24M7240	2	Washer	13 X 25 X 3 mm
17	RE559659	2	Breakaway Coupler	Low Profile SUB FOR RE262015
18	RE559660	2	Breakaway Coupler	Mid Profile SUB FOR RE262016
19	RE559661	1	Breakaway Coupler	High Profile SUB FOR RE262017
20	RE260570	1	Manifold	-
21	RE271469	1	Manifold	-
22	RE190805	3	Diagnostic Coupling	-
23	R77175	3	Cover	-
24	RE581740	1	Hydraulic Hose	SCV Load Sense
25	RE588375	5	Selective Control Valve	140 LPM, SUB FOR RE580227 OR RE337466
26	RE46684	1	Fitting Plug	-
27	RE588380	1	Selective Control Valve	Hitch Control Valve Unit (HV1) SUB FOR RE580525 OR RE563557; V800
28	14M7327	3	Lock Nut	M8
29	24M7095	23	Washer	8.400 X 15 X 1.600 mm
30	R266977	20	Socket Head Screw	-
31	R267667	2	Cap	-
32	R267668	2	Hose Fitting	-
33	RE272882	8	Tube	Drain
34	R10093	16	O-Ring	-
35	H127589	2	Clamp	USE WITH RE581740
36	19M7798	1	Screw	M8 X 40, USE WITH RE581740
