Открытый узел

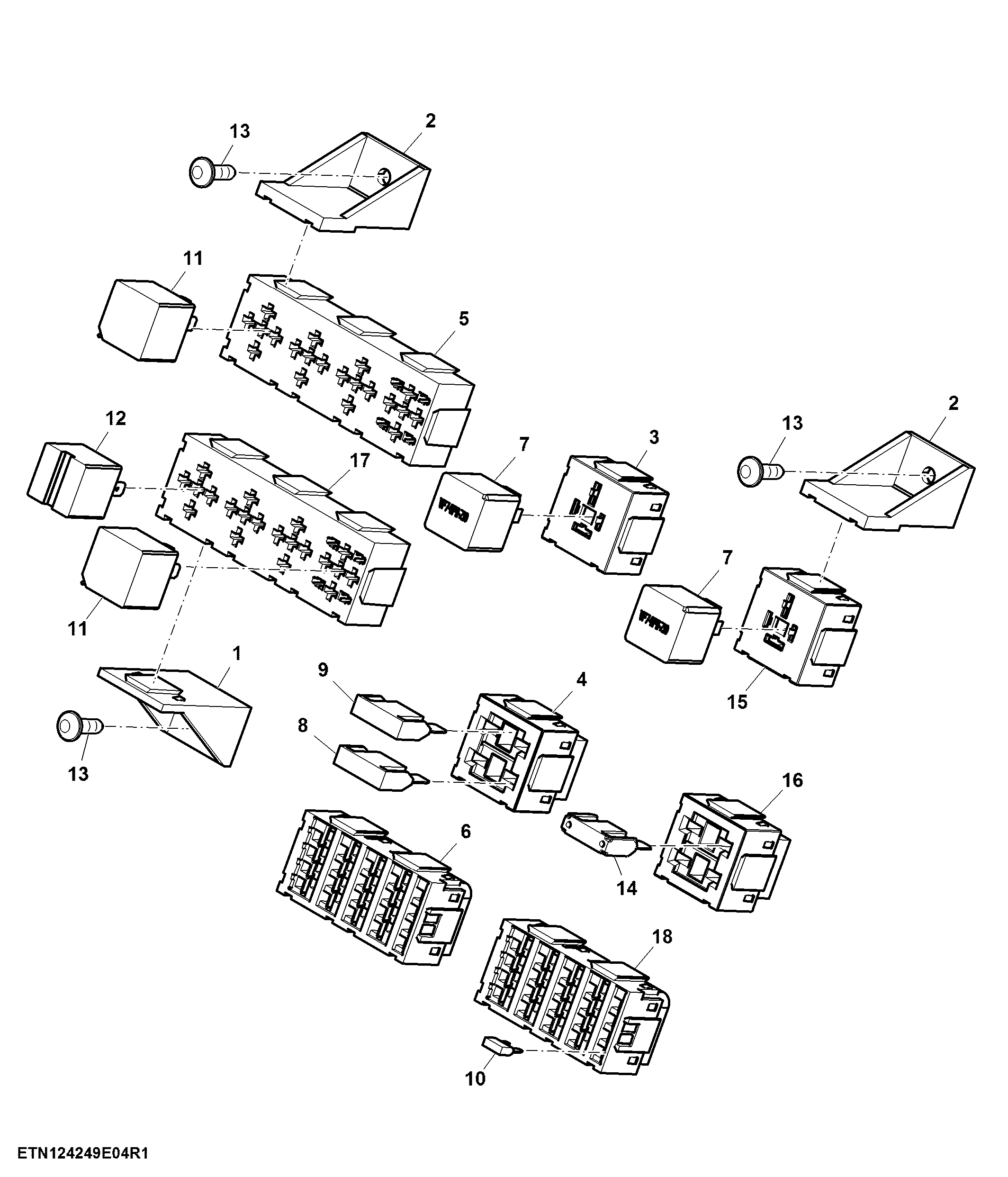

Load Center, Cab Wiring Harness, Value Server

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9178	1	Elec. Connector Accessory	-
2	RE49726	2	Support	-
3	57M8754	1	Elec. Connector Accessory	EC2, Load Center, Power Relay Block
3	RWA10666	1	Repair Wire Assembly	Cavity EC2_30, EC2_87
3	RWA10609	1	Repair Wire Assembly	Cavity EC2_85, EC2_86
4	57M8752	1	Elec. Connector Accessory	EC5, Load Center, Maxi Fuse Block
4	RWA10660	1	Repair Wire Assembly	Cavity EC5_A1
4	RWA10662	1	Repair Wire Assembly	Cavity EC5_A2, EC5_B1, EC5_B2
5	RWA10655	1	Repair Wire Assembly	Cavity EC1_A_86, EC1_B_87, EC1_B_87A, EC1_C_30, EC1_C_87A
5	RWA10658	1	Repair Wire Assembly	Cavity EC1_A_85, EC1_B_85, EC1_B_86, EC1_C_85, EC1_C_86, EC1_D_85, EC1_D_86
5	RWA10602	1	Repair Wire Assembly	Cavity EC1_A_30, EC1_A_87, EC1_B_30
5	57M8750	1	Elec. Connector Housing	EC1, Load Center, ISO Relay Block
6	57M8756	1	Elec. Connector Accessory	EC7, Load Center, Mini Fuse Block
6	RWA10606	1	Repair Wire Assembly	Cavity EC7_B1, EC7_B4, EC7_D1, EC7_D2, EC7_D3, EC7_F1, EC7_F2
6	RWA10630	1	Repair Wire Assembly	Cavity EC7_B2
6	RWA10605	1	Repair Wire Assembly	Cavity EC7_B3, EC7_D4
6	RWA10659	1	Repair Wire Assembly	Cavity EC7_F3, EC7_H1, EC7_H3, EC7_H4
7	AT322221	2	Relay	-
8	WZ2605354	1	Fuse	30 A
9	57M7623	1	Fuse	60 A
10	57M7689	8	Fuse	10 A
10	57M8163	11	Fuse	30 A
10	57M7690	3	Fuse	15 A
10	57M7691	4	Fuse	20 A
11	RE240999	6	Relay	ISO Relay
12	AL159759	1	Audible Warning Alarm	Buzzer
13	37M7352	3	Screw	-
14	57M8799	1	Fuse	40 A
15	57M8754	1	Elec. Connector Accessory	EC3, Load Center, Power Relay Block
15	RWA10666	1	Repair Wire Assembly	Cavity EC3_30, EC3_87
15	RWA10609	1	Repair Wire Assembly	Cavity EC3_85, EC3_86
16	57M8752	1	Elec. Connector Accessory	E6, Load Center, Maxi Fuse Block
17	57M9152	1	Elec. Connector Housing	EC4, Load Center, ISO Relay Block
17	RWA10602	1	Repair Wire Assembly	Cavity EC4_B_30
17	RWA10658	1	Repair Wire Assembly	Cavity EC4_A_85, EC4_A_86, EC4_B_85, EC4_B_86
17	RWA10655	1	Repair Wire Assembly	Cavity EC4_A_30, EC4_A_87, EC4_C_85, EC4_C_86
18	57M8756	1	Elec. Connector Accessory	EC8, Load Center, Mini Fuse Block
18	RWA10606	1	Repair Wire Assembly	Cavity EC8_B2, EC8_B3, EC8_D2, EC8_D4, EC8_E4, EC8_F4, EC8_G2, EC8_H3
18	RWA10630	1	Repair Wire Assembly	Cavity EC8_C1, EC8_C4, EC8_D1, EC8_E1, EC8_E2, EC8_F1, EC8_F2, EC8_G1, EC8_G4, EC8_H1, EC8_H4
18	RWA10659	1	Repair Wire Assembly	Cavity EC8_D3, EC8_F3, EC8_H2

Load Center, Cab Wiring Harness, Value Server
