Открытый узел

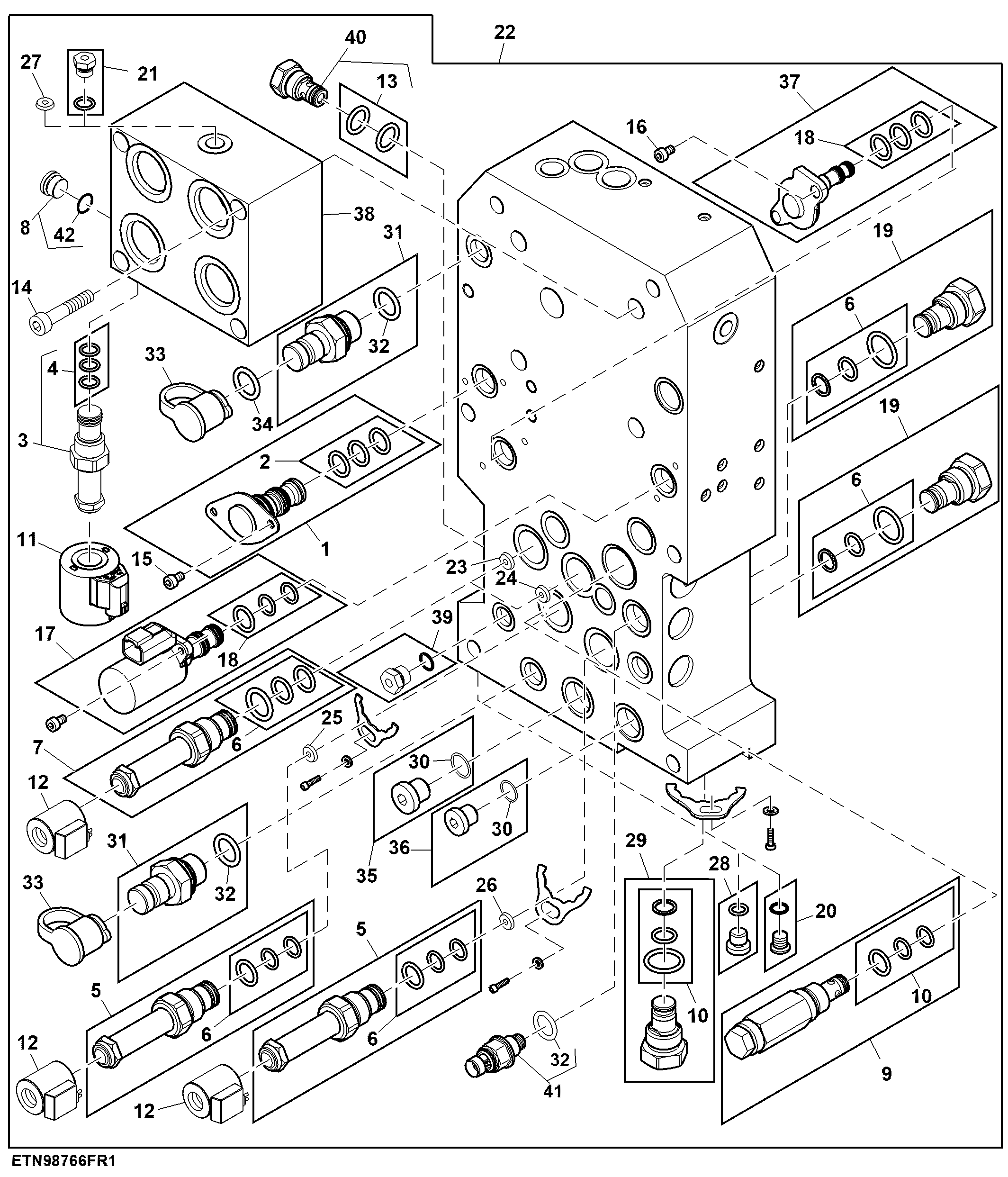

Front Suspension Valve Assembly, ILS™, W/O Brakes

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE315755	1	Plug	USE WITH RE594359
1	RE568800	1	Plug	USE WITH RE590659
2	AT224873	1	Seal Kit	-
3	RE283605	2	Solenoid Valve	-
4	AN279606	2	Seal Kit	-
5	AT307315	2	Solenoid Valve	-
6	AT224862	6	Seal Kit	-
7	RE314587	2	Valve	-
8	AT63271	2	Fitting	-
9	RE308213	1	Valve	Front Suspension Pressure Regulating valve V509
10	AT224864	2	Seal Kit	-
11	AT333808	2	Solenoid Valve Coil	-
12	AH230746	4	Solenoid Valve Coil	-
13	AN207184	2	Seal Kit	-
14	R308217	4	Cap Screw	-
15	T204128	2	Screw	-
16	R308216	4	Cap Screw	-
17	RE329564	1	Solenoid Hydraulic Valve	Front Differential Lock Solenoid Y683
18	RE308232	2	Seal Kit	-
19	AN206491	2	Check Valve	-
20	A73182	5	Pipe Plug	W/O Front PTO
21	N304196	13	Plug	W/O Front PTO
22	RE590659	1	Manifold	ORDER RE594359; SUB FOR RE577289 OR RE559478; ALSO ORDER RE581544
22	RE594359	1	Manifold	-
23	R308218	1	Orifice	-
24	R308219	1	Orifice	-
25	R308220	1	Orifice	-
26	R308222	1	Orifice	-
27	R315702	1	Orifice	W Front PTO
28	RE308225	1	Orifice Kit	W Front PTO
29	RE308229	1	Screen	-
30	51M7040	2	O-Ring	9.300 X 2.200 mm
31	RE190805	2	Diagnostic Coupling	Front Suspension Head Side Pressure DR X500
32	51M7041	3	O-Ring	11.300 X 2.200 mm
33	R77175	2	Cover	-
34	R315704	1	O-Ring	-
35	RE315705	1	Fitting Plug	Front Power Beyond Return Port Z12
36	RE315706	1	Fitting Plug	Front Power Beyond Pressure Port Z11
37	RE315756	1	Plug	USE WITH RE577289
38	R329358	1	Manifold	-
39	RE315707	3	Fitting Plug	Front Power Beyond Load sense Z13
40	AN207183	2	Check Valve	-
41	RE581544	1	Pressure Sensor	SUB FOR RE272647; USE WITH RE577289 AND RE559478
42	R26375	1	O-Ring	-

Front Suspension Valve Assembly, ILS™, W/O Brakes

Нет текстового описания
